Rittal 2500310 System Light LED, 1200 Lumen, length 437 mm, 100-240 V, with integral motion detector, with earthing-pin socket
|
199,73 EUR 208,42 EUR |
|
|
( 237,68 EUR incl. VAT ) ≈ £171.37 | ≈ $231.49 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >50 pieces | |
| Lieske Part No.: | 1020532 |
|---|---|
| Mfg Part No: | 2500310 |
| UPC/EAN: | 4028177806986 |
| Weight: | 0.695 kg |
Product information for Rittal 2500310:

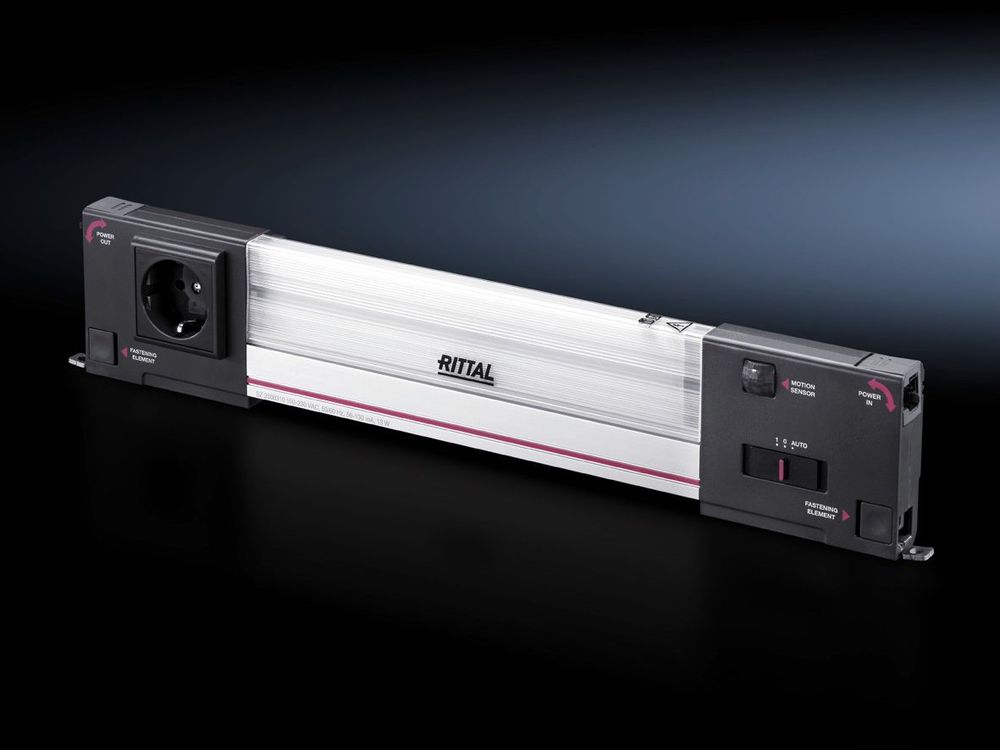

The Rittal SZ 2500310 is a robust LED system luminaire designed for use in control cabinets and technical installations. With a luminous flux of 1,200 lumens and a neutral white light color temperature of 4000 K, it provides sufficient, even lighting in industrial environments. The luminaire is equipped with a motion sensor, enabling intelligent, energy-saving lighting control — the lighting activates automatically upon detecting motion and turns off after a preset time interval. Additionally, it features an integrated socket, allowing direct connection of tools, measuring devices, or other equipment within the control cabinet. Its compact design, with a length of 437 mm and a height of 85 mm, fits perfectly into standard control cabinets. The luminaire operates at a rated voltage of 100–230 V, 1~, 50/60 Hz and consumes 13 W of power. The operating temperature range is from -20 °C to 55 °C, ensuring reliable performance in various industrial environments. The housing material is aluminum, providing high mechanical stability and heat dissipation. The protection rating IP20 protects against contact with fingers and larger solid objects, but is not suitable for outdoor use or humid environments. The luminaire is without an on/off switch, meaning control is exclusively via the motion sensor.
Technical Data
Type: SZ 2500310
Technical Data
- Manufacturer: Rittal
- Manufacturer's Part Number: 2500310
- Type/Series: SZ 2500.310
- Product Name: LED System Luminaire
- Configuration: with socket, with motion sensor
- Luminous Flux: 1,200 lm
- Light Color: 4000 K (neutral white)
- Rated Operating Voltage: 100 V – 230 V, 1~, 50 Hz/60 Hz
- Power Consumption: 13 W
- Length: 437 mm
- Width: 44 mm
- Height: 85 mm
- Depth: 44 mm
- Protection Rating: IP20
- Operating Temperature: -20 °C to 55 °C
- Material: Aluminum
- With Light Sensor/Motion Sensor: Yes
- With Socket: Yes
- With On/Off Switch: No
- Net Weight: 0.6 kg
- Gross Weight: 0.69 kg
- Country of Origin: RO
- WEEE Country: DE
Type: SZ 2500310
