Rittal 2388650 SZ Rail, for EMC rail and stain relief, for W: 600 mm
|
34,68 EUR 36,12 EUR |
|
|
( 41,27 EUR incl. VAT ) ≈ £29.76 | ≈ $40.19 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 412721 |
|---|---|
| Mfg Part No: | 2388650 |
| UPC/EAN: | 4028177698918 |
| Weight: | 0.123 kg |
Further Switchboard-Systems from RittalFurther products in category Switchboard-Systems
All products of Rittal
Product information for Rittal 2388650:
Combined rail for strain relief and EMC contacting of inserted cables.
Benefits: Additional contacting on the left or right of the rail via existing holes (9 mm diameter)
Prepared for tool-free mounting of EMC shielding brackets
Material: Extruded aluminium section
Surface finish: Chromium-free passivated

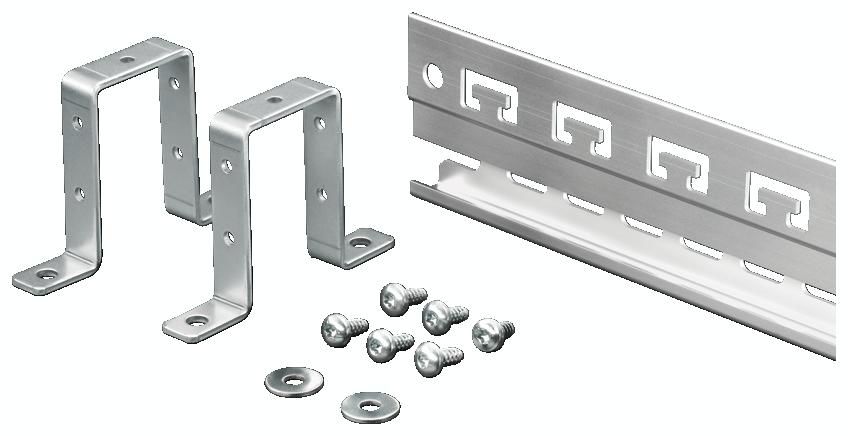

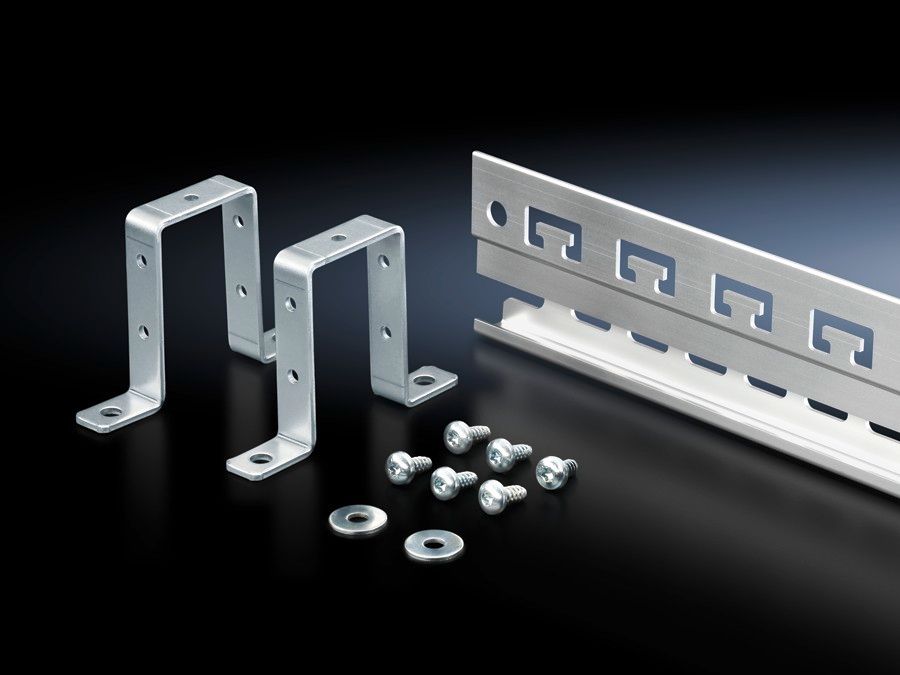

Supply includes: 1 rail
2 retaining brackets
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177698918
Customs tariff number: 73269098
eCl@ss 5.1: 27189214
eCl@ss 7.0: 27189214
ETIM 6.0: EC002625
Design: C rail to accommodate cable clamps
T-head cut-outs on a 40 mm pitch pattern for cable clamping using cable ties
To fit: Width: = 600 mm
Dimensions: Length: 553 mm

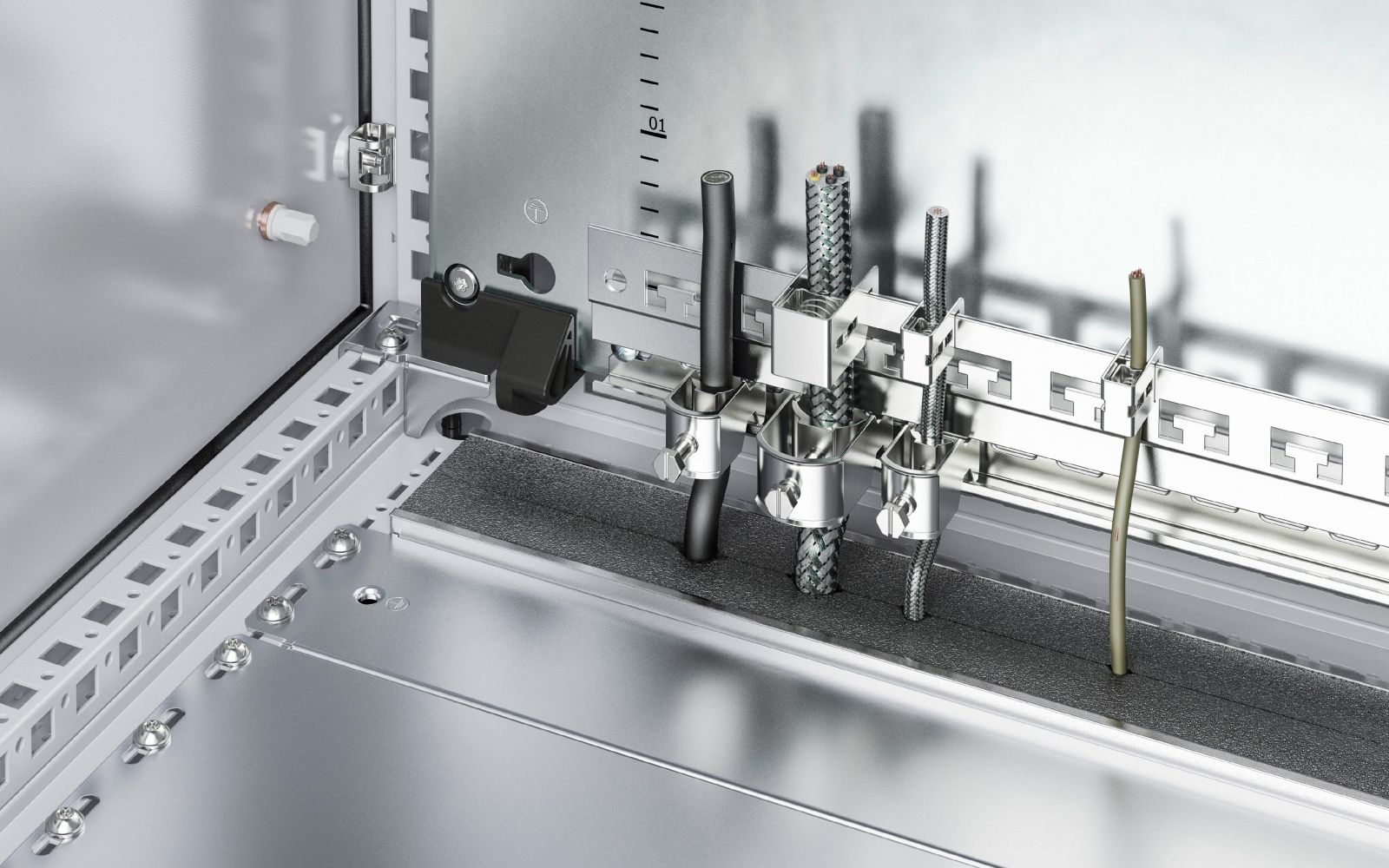

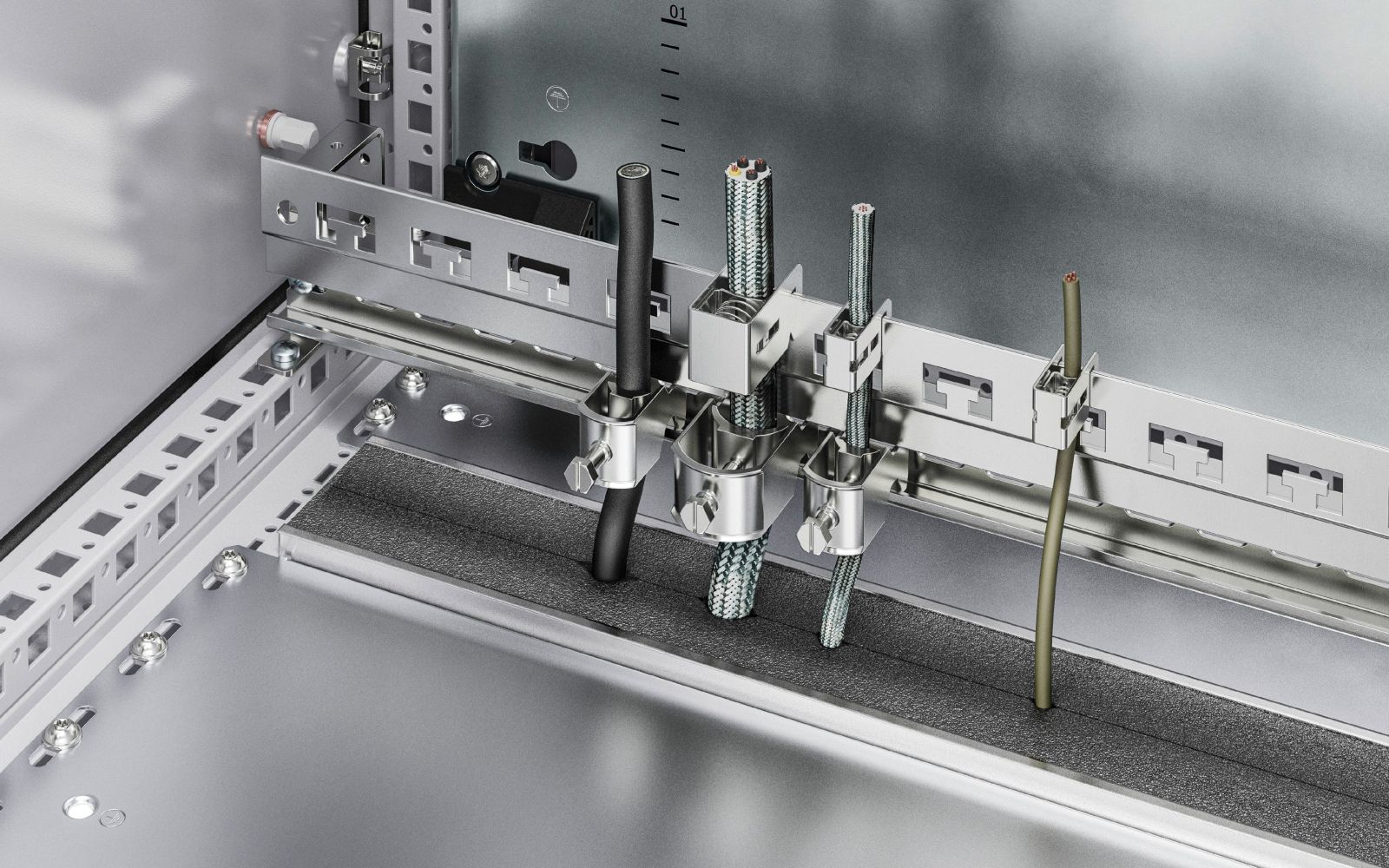

Installation options: on the horizontal/vertical TS, SE, PC enclosure section
may also be fitted without a retaining bracket on a mounting plate
Weight/pack: 0.58 kg
Type: SZ 2388650
Benefits: Additional contacting on the left or right of the rail via existing holes (9 mm diameter)
Prepared for tool-free mounting of EMC shielding brackets
Material: Extruded aluminium section
Surface finish: Chromium-free passivated
Supply includes: 1 rail
2 retaining brackets
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177698918
Customs tariff number: 73269098
eCl@ss 5.1: 27189214
eCl@ss 7.0: 27189214
ETIM 6.0: EC002625
Design: C rail to accommodate cable clamps
T-head cut-outs on a 40 mm pitch pattern for cable clamping using cable ties
To fit: Width: = 600 mm
Dimensions: Length: 553 mm
Installation options: on the horizontal/vertical TS, SE, PC enclosure section
may also be fitted without a retaining bracket on a mounting plate
Weight/pack: 0.58 kg
Type: SZ 2388650
