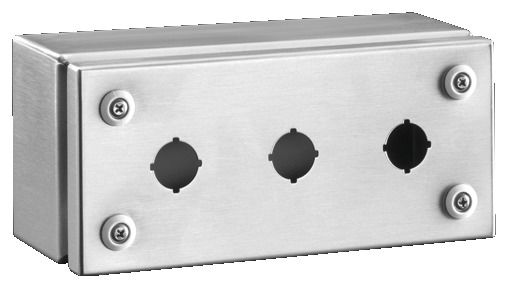

Rittal 2384030 SM Switch housing, WHD: 220x100x90 mm, Stainless steel 1.4301, without mounting plate, 3 switch cut-outs
|
113,14 EUR 117,82 EUR |
|
|
( 134,64 EUR incl. VAT ) ≈ £97.30 | ≈ $128.98 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Lieske Part No.: | 369350 |
|---|---|
| Mfg Part No: | 2384030 |
| UPC/EAN: | 4028177529434 |
| Weight: | 1.226 kg |
Product information for Rittal 2384030:
Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
Surface finish: Enclosure and cover: Brushed, grain 240
Protection category IP to IEC 60 529: IP 66
Protection category NEMA: NEMA 4X
Supply includes: Enclosure with cover
Quick-release fasteners
Packs of: 1 pc(s).
EAN: 4028177529434
Customs tariff number: 94039010
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC000200
Dimensions: Width: 220 mm
Height: 100 mm
Depth: 90 mm
Pitch pattern: 60 mm
Material thickness: Enclosure: 1.25 mm
Cover: 1.25 mm
No. of switch cut-outs Ø 22.5 mm: 3
Number of quick-release fasteners: 4
Lock version: Quick-release fastener including plastic bushes
Number of locks: 4
Weight/pack: 0.8 kg
Type: SM 2384030
