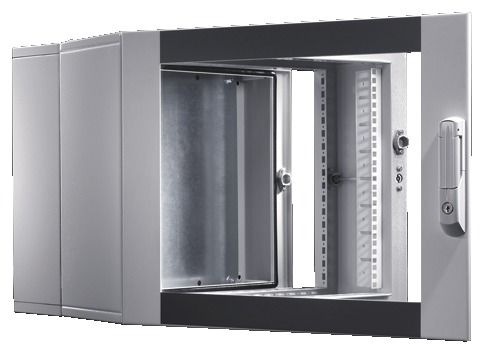

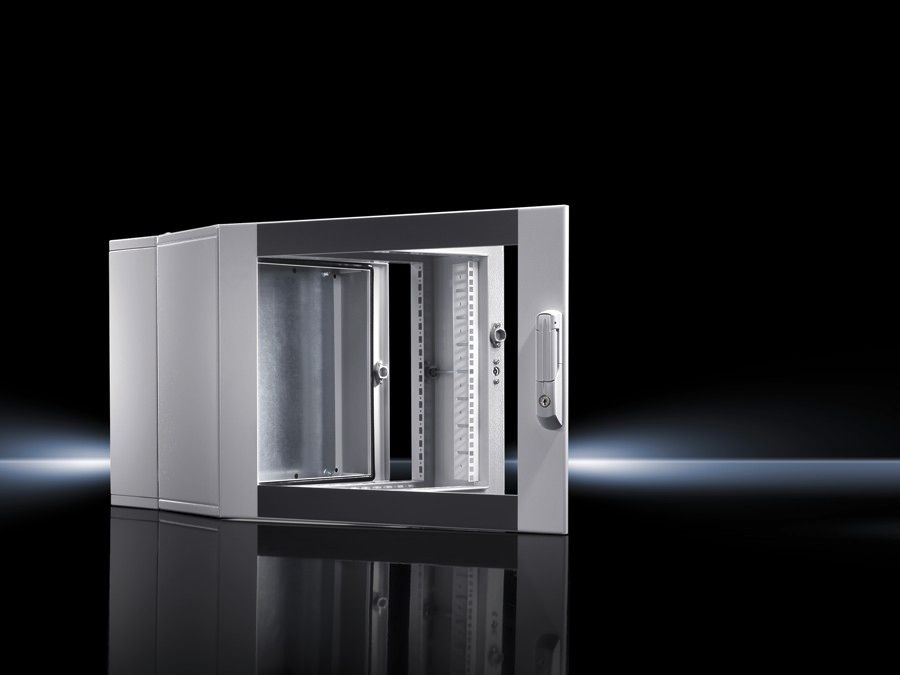

Rittal 2261605 EL Wall-mounted enclosures, 3-part, WHD: 600x1012x373 mm, 21 U, with mounting plate, and mounting angles, static installation
|
-7% 676,32 EUR 727,36 EUR |
|
|
( 804,82 EUR incl. VAT ) ≈ £580.28 | ≈ $783.85 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 356937 |
|---|---|
| Mfg Part No: | 2261605 |
| UPC/EAN: | 4028177324367 |
| Weight: | 53.4 kg |
Further Electronic Packaging from RittalFurther products in category Electronic Packaging
All products of Rittal
Product information for Rittal 2261605:
Wall-mounted enclosure with optimum accessibility due to hinged part.
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Comfort handle and 2-point locking
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324367
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 1012 mm
Units: 21 U
Depth: 373 mm
Depth hinged part: 216 mm
Installation depth: 320 mm
Clearances: Clearance width: 502 mm
Clearance height: 949 mm
Mounting plate: Width: 485 mm
Height: 965 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 75 kg
Weight/pack: 56.3 kg
Type: EL 2261605
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Comfort handle and 2-point locking
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324367
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 1012 mm
Units: 21 U
Depth: 373 mm
Depth hinged part: 216 mm
Installation depth: 320 mm
Clearances: Clearance width: 502 mm
Clearance height: 949 mm
Mounting plate: Width: 485 mm
Height: 965 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 75 kg
Weight/pack: 56.3 kg
Type: EL 2261605
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Rittal 2261605 EL Wall-mounted enclosures, 3-part, WHD: 600x1012x373 mm, 21 U, with mounting plate, and mounting angles, static installation?
The article Rittal 2261605 EL Wall-mounted enclosures, 3-part, WHD: 600x1012x373 mm, 21 U, with mounting plate, and mounting angles, static installation is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2261605 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 2261605 EL Wall-mounted enclosures, 3-part, WHD: 600x1012x373 mm, 21 U, with mounting plate, and mounting angles, static installation always at the best possible price. We can give you a discount of 2% on Rittal 2261605 EL Wall-mounted enclosures, 3-part, WHD: 600x1012x373 mm, 21 U, with mounting plate, and mounting angles, static installation if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
