Rittal 2260060 gland plate for wall-mounted enclosure AX 3-piece sheet metal

Your rating:
Average rating
product review for Rittal 2260060 gland plate for wall-mounted enclosure AX 3-piece sheet metal
( 4.4 / 5 ) 5 ratings

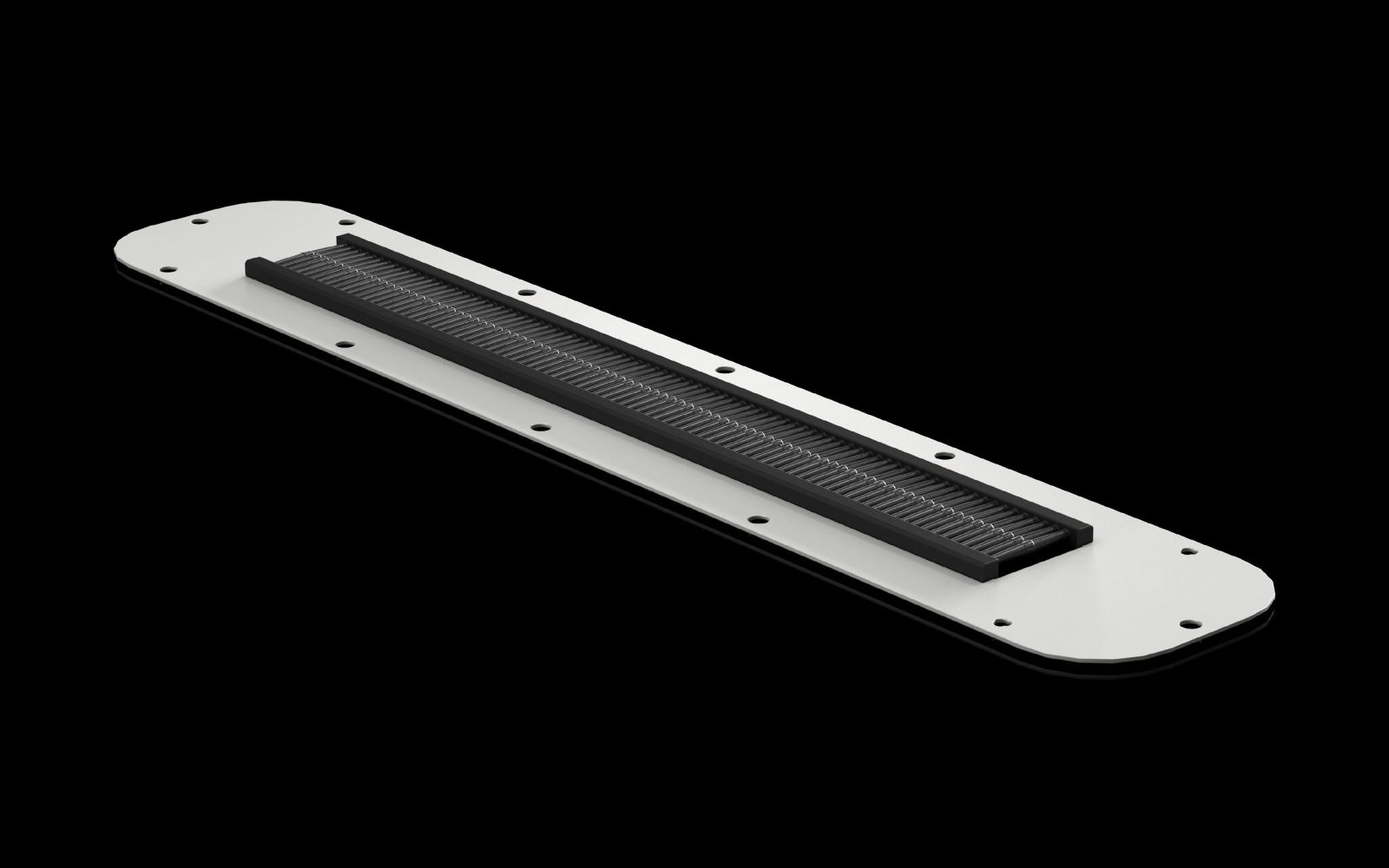

Rittal 2260060
This image may differ from the desired article.
-14% 16,79 EUR 19,49 EUR
( 19,98 EUR incl. VAT )
≈ £14.05  |  ≈ $18.45
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 2260060 gland plate for wall-mounted enclosure AX 3-piece sheet metal
Datasheet:file_download Download
Lieske Part No.:1572225
Mfg Part No: 2260060
UPC/EAN: 4028177995284
Weight:0.544 kg
Type:AX2260060

Product information for Rittal 2260060:

The Rittal AX2260060 is a gland plate for wall-mounted enclosures of the AX series, specifically designed for secure and clean connection of cables and conduits at the front of the enclosure. The product is made of sheet steel and is finished in RAL 7035, providing a neutral, grey appearance that integrates well in industrial environments. The design includes a brush strip, ensuring a tight seal against dust and small particles without restricting flexibility in cable routing. The gland plate is 3-piece, enabling modular installation and adaptation to various cable entry configurations.

Applications

The gland plate is primarily used in industrial electrical engineering where clean and secure cable routing is required for wall-mounted enclosures of the AX series. It serves as a transition element between the enclosure and connected conduits, with the brush strip providing mechanical and partially electrostatic shielding. Its use is common in production facilities, automation systems, and during installation of control and switching units indoors.

Functions and Equipment in Detail

The brush strip is an integrated component of the gland plate, consisting of elastic brushes that conform to the shape of passing cables. This creates a tight seal that retains dust and fine particles within the enclosure. The 3-piece construction allows flexible adaptation to different cable diameters and arrangements, enabling installation at various positions on the enclosure. The sheet steel construction ensures high mechanical stability and durability under industrial conditions.

Technology Explained Simply

The gland plate is mounted on the front of the AX wall-mounted enclosure, serving as a mechanical termination for cable entries. The brush strip ensures that cables do not protrude directly into the enclosure but are guided through an elastic seal, which also provides mechanical stabilization. The RAL 7035 finish is standard in industrial electrical engineering and ensures visual harmony with other components. The sheet steel material offers sufficient strength to withstand mechanical stresses during installation and operation.

Compatibility and Accessories

The gland plate is specifically developed for wall-mounted enclosures of the AX series from Rittal. It is compatible with the corresponding mounting holes and fastening elements of these enclosures. The 3-piece design allows adaptation to various cable entries, with individual parts being combinable in a modular fashion.

Installation and Mounting

Installation is performed on the front of the AX wall-mounted enclosure, where the gland plate is secured using screws through the designated holes. The 3-piece structure allows flexible arrangement of individual elements depending on the number and position of cables passing through. The brush strip is automatically inserted into the cable openings, creating a tight seal. Installation requires no special tools; only standard tools such as screwdrivers are needed.

Operational Advantages

The gland plate provides clean and structured cable routing, simplifying maintenance and inspection of installations. The brush strip ensures effective dust and particle sealing, extending the service life of components installed in the enclosure. The 3-piece design allows flexible adaptation to different requirements without needing additional parts. The use of sheet steel ensures high mechanical robustness, even under industrial conditions. The RAL 7035 finish contributes to a uniform visual appearance in industrial environments.

General
ModelWith brush bar
Materialsteel sheet
ColourRAL 7035


Product data sheet
Datasheet for Rittal 2260060, EAN: 4028177995284

Questions & answers

What is the delivery time of Rittal 2260060 gland plate for wall-mounted enclosure AX 3-piece sheet metal?

The article Rittal 2260060 gland plate for wall-mounted enclosure AX 3-piece sheet metal is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2260060 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2260060 gland plate for wall-mounted enclosure AX 3-piece sheet metal always at the best possible price. We can give you a discount of 2% on Rittal 2260060 gland plate for wall-mounted enclosure AX 3-piece sheet metal if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
