Rittal wall-mounted enclosure EL 9 U W x D: 600x473 mm fixed installation profile. (freight shipping)
|
-7% 474,84 EUR 510,65 EUR |
|
|
( 565,06 EUR incl. VAT ) ≈ £401.24 | ≈ $530.87 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 557852 |
| Mfg Part No: | 2259605 |
| UPC/EAN: | 4028177324398 |
| Weight: | 33 kg |
| Type: | EL 2259605 |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 2259605:

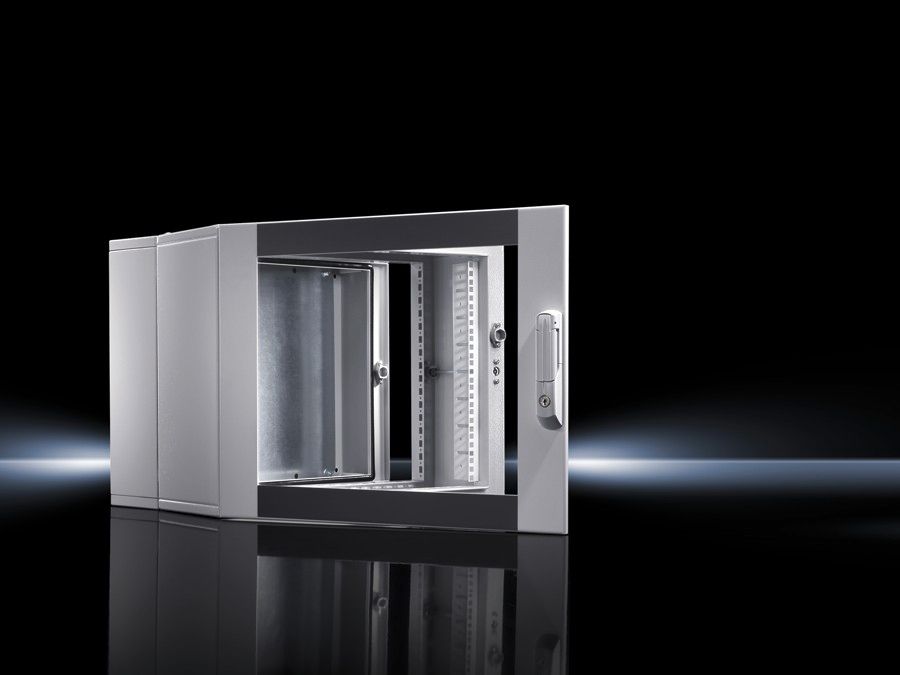

Wall-mounted enclosure with optimum accessibility due to hinged part.
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324398
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 478 mm
Units: 9 U
Depth: 473 mm
Depth hinged part: 316 mm
Installation depth: 420 mm
Clearances: Clearance width: 502 mm
Clearance height: 415 mm
Mounting plate: Width: 485 mm
Height: 432 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 45 kg
Weight/pack: 36.6 kg
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324398
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 478 mm
Units: 9 U
Depth: 473 mm
Depth hinged part: 316 mm
Installation depth: 420 mm
Clearances: Clearance width: 502 mm
Clearance height: 415 mm
Mounting plate: Width: 485 mm
Height: 432 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 45 kg
Weight/pack: 36.6 kg
Questions & answers
What is the delivery time of Rittal wall-mounted enclosure EL 9 U W x D: 600x473 mm fixed installation profile. (freight shipping)?
The article Rittal wall-mounted enclosure EL 9 U W x D: 600x473 mm fixed installation profile. (freight shipping) is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2259605 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal wall-mounted enclosure EL 9 U W x D: 600x473 mm fixed installation profile. (freight shipping) always at the best possible price. We can give you a discount of 2% on Rittal wall-mounted enclosure EL 9 U W x D: 600x473 mm fixed installation profile. (freight shipping) if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
