Rittal 2249605 EL Wall-mounted enclosures, 3-part, WHD: 600x478x373 mm, 9 U, with mounting plate, and mounting angles, static installation
|
-7% 443,56 EUR 477,02 EUR |
|
|
( 527,84 EUR incl. VAT ) ≈ £380.57 | ≈ $514.09 plus delivery charges: 213,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 773639 |
|---|---|
| Mfg Part No: | 2249605 |
| UPC/EAN: | 4028177324329 |
| Weight: | 26.73 kg |
Further Electronic Packaging from RittalFurther products in category Electronic Packaging
All products of Rittal
Product information for Rittal 2249605:

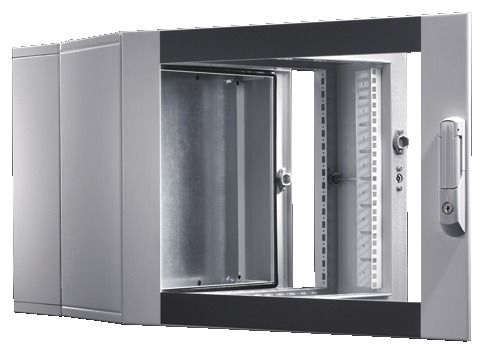

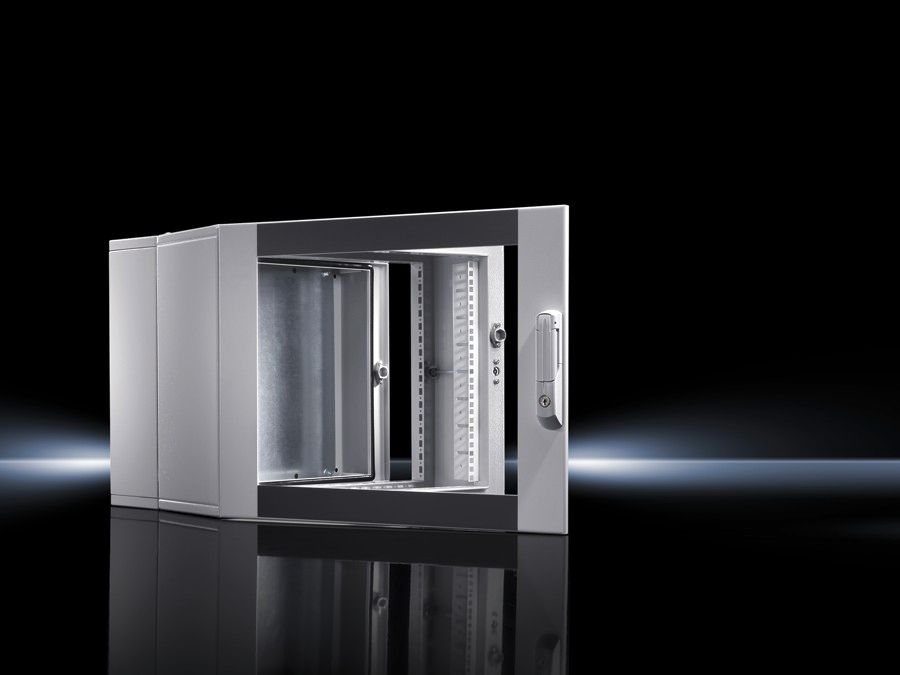

Wall-mounted enclosure with optimum accessibility due to hinged part.
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324329
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 478 mm
Units: 9 U
Depth: 373 mm
Depth hinged part: 216 mm
Installation depth: 320 mm
Clearances: Clearance width: 502 mm
Clearance height: 415 mm
Mounting plate: Width: 485 mm
Height: 432 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 45 kg
Weight/pack: 33.8 kg
Type: EL 2249605
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324329
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 478 mm
Units: 9 U
Depth: 373 mm
Depth hinged part: 216 mm
Installation depth: 320 mm
Clearances: Clearance width: 502 mm
Clearance height: 415 mm
Mounting plate: Width: 485 mm
Height: 432 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 45 kg
Weight/pack: 33.8 kg
Type: EL 2249605
