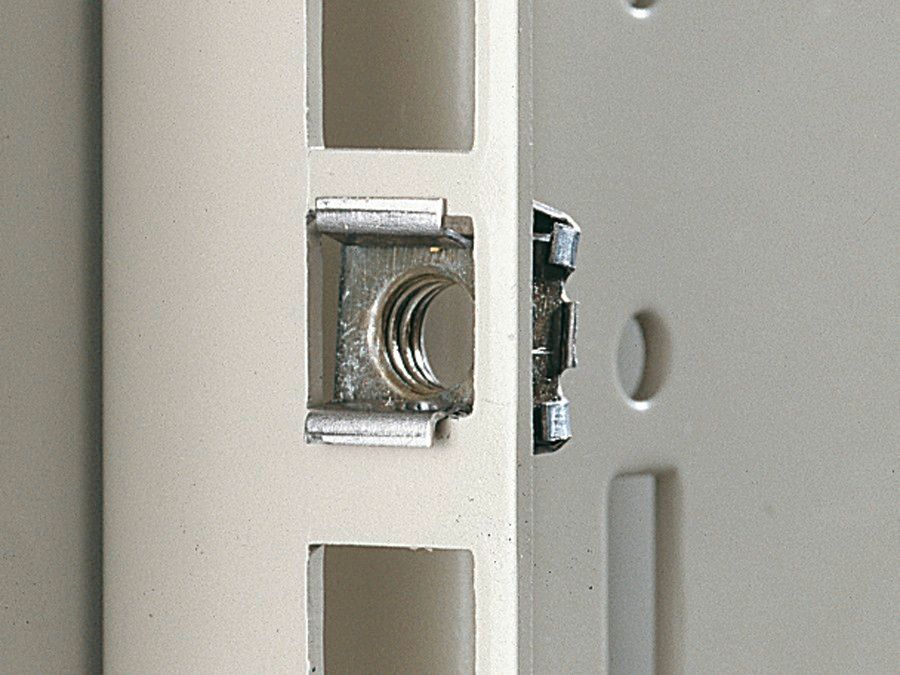

Rittal 2092500 Cage nuts EL M5 0.8–2 mm 50 pcs

Your rating:
Average rating
product review for Rittal 2092500 Cage nuts EL M5 0.8–2 mm 50 pcs
( 4.6 / 5 ) 40 ratings
Rittal 2092500
This image may differ from the desired article.
Rittal 2092500Rittal 2092500
12,69 EUR
( 15,10 EUR incl. VAT )
≈ £10.62  |  ≈ $13.95
plus delivery charges: 55,00 €
in stockinfo_outline
In Stock: >50 pieces
1x Rittal 2092500 Cage nuts EL M5 0.8–2 mm 50 pcs
Datasheet:file_download Download
Lieske Part No.:452327
Mfg Part No: 2092500
UPC/EAN: 4028177187344
Weight:0.221 kg
Type:EL 2092500

Product information for Rittal 2092500:

The Rittal cage nut EL 2092500 is a mounting accessory for 48,3 cm ( 19 inch )-housing systems, specifically designed for securing electronic inserts, 482.6 mm (48,3 cm ( 19 inch )) installations, and blank plates to the mounting profiles in the standard format 482.6 mm (48,3 cm ( 19 inch )). The product features an M5 thread and is available in the non-conductive version, meaning it does not establish an electrical connection between the mounted device and the housing profile. This variant is particularly suitable for applications where galvanic isolation of the inserts from the housing is required, for example, in systems with special protection or insulation requirements.

Applications

The cage nut is used in IT and electrical engineering, where standardized 48,3 cm ( 19 inch )-rack systems are common. It serves to securely mount devices such as network switches, servers, power supplies, or blank plates to the profile sheets of housings. The product is used in server rooms, data centers, distribution cabinets, and other technical installations where stable and reliable mounting of inserts is required. The cage nut is designed for profile sheet thicknesses from 0.8 to 2.5 mm, although sources indicate a slightly different specification of 0.8 to 2.0 mm. The recommended use with tight tolerances is in the range of 1.2 to 1.5 mm sheet thickness to ensure optimal fit and mounting quality.

Functions and Equipment in Detail

The cage nut is designed as a Captive Nut, meaning it remains anchored in the profile sheet and cannot be lost once installed. The M5 thread allows use with standard screws and screwdrivers commonly used in IT and electrical installations. The non-conductive version is essential for applications where electrical isolation of the mounted device from the housing profile must be ensured. This is relevant, for example, for devices with their own protective earth conductors or in systems with special earthing concepts.

Technology Explained Simply

The cage nut is inserted into the pre-drilled hole in the profile sheet, where it anchors itself in the hole due to its shape. The inner side of the nut is threaded to be screwed together with a screw, securing the device firmly. The non-conductive version means the nut does not create a conductive connection between the device and the housing. This is technically important to avoid unwanted current paths or earthing issues. The product is used in 48,3 cm ( 19 inch )-systems based on a standard width of 482.6 mm, ensuring universal compatibility with most rack and housing systems.

Compatibility and Accessories

The cage nut EL 2092500 is specifically designed for 48,3 cm ( 19 inch )-housing systems and fits standard mounting profiles of this type. As a complementary accessory, the conductive version (EL M5 0.8-2 mm) is offered, which enables an electrical connection between the device and the housing. This alternative is suitable for applications where a galvanic connection is required, for example, for earthing devices. The cage nut is not compatible with other thread sizes or profile standards, as it is specifically developed for M5 and 48,3 cm ( 19 inch )-systems.

t
Mounting and Installation

Installation is performed by inserting the cage nut into the pre-drilled hole in the profile sheet. The nut sits in the hole and is fixed by the screw, which is screwed in from the inner side of the device. The mounting is simple and does not require additional tools or aids. Installation is typically tool-free, as the nut anchors itself in the hole. Mounting is usually done from the front side of the device, with the screw being screwed into the nut from the inside.

Advantages in Operation

The cage nut provides a secure and reliable mounting of devices in 48,3 cm ( 19 inch )-racks. The non-conductive version enables targeted insulation, which is advantageous in certain technical applications. Using cage nuts reduces the risk of lost screws, as the nut remains in the profile sheet. The packaging unit contains 50 pieces, enabling economical procurement for larger mounting projects. The cage nut is suitable for a variety of material thicknesses, allowing flexible application in different housing designs.

General
Modelwithout contacts
ThreadM5
For material thicknesses0,8 ‐ 2,5 mm


Product data sheet
Datasheet for Rittal 2092500, EAN: 4028177187344

Questions & answers

What is the delivery time of Rittal 2092500 Cage nuts EL M5 0.8–2 mm 50 pcs?

The article Rittal 2092500 Cage nuts EL M5 0.8–2 mm 50 pcs is currently in stock

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 2092500 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 2092500 Cage nuts EL M5 0.8–2 mm 50 pcs always at the best possible price. We can give you a discount of 2% on Rittal 2092500 Cage nuts EL M5 0.8–2 mm 50 pcs if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
