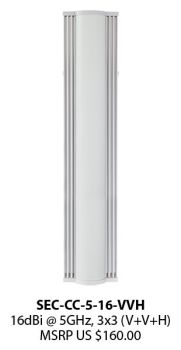

RF Elements Sector CARRIER CLASS 5GHz 16dBi MiMo 3x3 (V+V+H) content_copy

RF Elements Sector CARRIER CLASS 5GHz 16dBi MiMo 3x3 (V+V+H) CARRIER CLASS Sectors are addressing customer requirements for RF performance, co-location noise resistance, ease of installation and cost effi ciency. Antennas feature innovative Back- Shield?, patent pending system of frequency selective refl ectors incorporated into antenna structure to attenuate side lobes and back side near fi eld radiation. Sector Antenna 5 GHz 16 dBi is a triple polarization version of CARRIER CLASS Sector with two vertical polarization antennas and one horizontal polarization antenna. Antenna Connection 3 x RP-SMA on integrated semi-fl ex pigtails Antenna Type 5 GHz 16 dBi VVH Enviromental IP55 Temperature -26°C to +60°C Weight 3,9 kg Wind Survival 160 km/hour Single piece N/A Frequency Range 5450 - 5850 MHz Gain Max V1 16.6 dBi / V2 15.9 dBi / H 16.6 dBi Gain Typical V1 16.5 dBi / V2 15.7 dBi / H 16.5 dBi Polarization Tripple Linear V1+V2+H Azimuth Beam Width -3dB V1 76° / V2 76° / H 77° Elevation Beam Width -3dB V2 7.5° / V2 7.5° / H 7.5° Azimuth Beam Width -6dB V1 102° / V2 102° / H 100° Elevation Beam Width -6dB V1 10° / V2 10° / H10° Front to Back Ratio (Min.) 30.6 dB Polarization Isolation H-V2 19 dB H-V1 19 dB V2-H 18 dB V2-V1 0 dB V1-H 19 dB V1-V2 0 dB Impedance 50 Ohm VSWR Max 1,8 VSWR Typical 1,35 Isolation Between Ports V1-V2 38 dB V1-H 30 dB V2-H 57 dB RF elements® StationBox® S, StationBox® S CARRIER CLASS, RockShield? Cambium Networks? ePMP? 1000 Connectorized Radio* MikroTik? BaseBox, NetBox, NetMetal ** Ubiquiti Networks? UBNT Rocket? M5, UBNT Rocket? M5 Titanium UBNT Rocket? 5ac
