Regiolux 60324024160 stail-SAX/1500-2 LED 8100 lm 840 ET vw mounting light

Your rating:
Average rating
product review for Regiolux 60324024160 stail-SAX/1500-2 LED 8100 lm 840 ET vw mounting light
( 4.5 / 5 ) 123 ratings

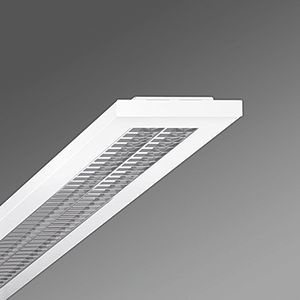

Regiolux 60324024160
This image may differ from the desired article.
Regiolux 60324024160Regiolux 60324024160
494,85 EUR 515,69 EUR
( 588,87 EUR incl. VAT )
≈ £414.19  |  ≈ $543.84
plus delivery charges: 100,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x Regiolux 60324024160 stail-SAX/1500-2 LED 8100 lm 840 ET vw mounting light
Lieske Part No.:135615
Mfg Part No: 60324024160
UPC/EAN: 4020863309436
Weight:6.43 kg
Type:stail-SAX/1500-2 LED 8100lm 840 ET, vw
Graduated prices net
From piecesPrice per pieces
4480,00 EUR
8465,16 EUR
12450,31 EUR
16435,47 EUR

Product information for Regiolux 60324024160:

The Regiolux stail-SAX/1500-2 LED 8100lm 840 ET, vw is an indoor luminaire designed for use as a surface-mounted luminaire on ceilings or walls. The device features a housing made of sheet steel with a flat, rectangular cross-section, providing a visible height of 26 mm and allowing a ceiling clearance of 30 mm. The front sides of the housing are also made of steel, with the entire surface painted in traffic white RAL 9016. The luminaire is designed for use in indoor spaces where uniform, direct light distribution is required.

Applications
This luminaire is suitable for rooms requiring high light intensity and clear, directional illumination, such as office buildings, administrative buildings, warehouses, or production areas. The light distribution is direct, ensuring efficient lighting with minimal light loss into the room. The luminaire complies with DIN-EN 12464-1, the standard for workplace lighting, with a maximum luminance of 1500 cd/m² at an angle of 65°. This ensures sufficient brightness and good visibility for visual tasks.

Functions and Equipment in Detail
The light emission is achieved through a MIRO-SILVER® Micro-Parabol grid made of satin-matt processed aluminium. This grid is reflection-enhanced and features low-profile lamellae, enabling uniform and self-rastering light distribution. The self-rastering property ensures that the light is distributed evenly without requiring additional reflectors or diffusers. The luminaire produces a luminous flux of 8100 lumens at a colour temperature of 840 Kelvin, corresponding to cool white. Colour temperature 840 is typical for workspaces where clear and focused lighting is required.

Technology Explained Simply
The luminaire uses LED technology, offering high luminous efficacy and low heat generation. Power supply is via a 3-pole connection terminal in plug-in technology, enabling simple and secure installation. The plug-in technology allows quick and tool-free connection to the electrical network, speeding up installation. The use of sheet steel for the housing ensures high mechanical stability and durability. The traffic white RAL 9016 finish is an industry standard and blends well into technical and function-oriented environments.

Compatibility and Accessories
The luminaire is designed as a standalone unit and is delivered without additional components. It is installed directly on the ceiling or wall, using the provided mounting options. The plug-in technology enables easy integration into existing electrical systems.

Mounting and Installation
Mounting is performed on the ceiling or wall, with the ceiling clearance of 30 mm to be considered. The 3-pole connection terminal in plug-in technology allows for quick and secure connection to the power supply. No additional tools or components are required to put the luminaire into operation. Installation is carried out by inserting the terminal into the corresponding plug connector, establishing an electrical connection.

Operational Advantages
The luminaire provides a high luminous flux of 8100 lumens at a colour temperature of 840 Kelvin, ensuring clear and sufficiently bright lighting in workspaces. The use of LED technology ensures long service life and low energy consumption. The self-rastering light distribution via the MIRO-SILVER® Micro-Parabol grid ensures uniform illumination without visible light spots. The plug-in technology enables fast and secure installation, reducing mounting time. The robust construction from sheet steel ensures high mechanical stability and durability.

General
Housing materialsteel sheet
Height26 mm
Ceiling clearance30 mm
Colour housingtraffic white RAL 9016
Light sharingdirectly radiating
Light emissionMIRO-SILVER® micro-parabolic grid
Surface texturesilk-matt
Material of parabolic gridAluminium
Luminous intensity8100 lm
Colour temperature840 K
Connection type3-pole terminal block
Connection systemplug-in contact technology
Light distribution angle65°
Maximum luminous intensity1500 cd/m²
NormDIN-EN 12464-1


Questions & answers

What is the delivery time of Regiolux 60324024160 stail-SAX/1500-2 LED 8100 lm 840 ET vw mounting light ?

The article Regiolux 60324024160 stail-SAX/1500-2 LED 8100 lm 840 ET vw mounting light is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Regiolux 60324024160 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Regiolux 60324024160 stail-SAX/1500-2 LED 8100 lm 840 ET vw mounting light always at the best possible price. We can give you a discount of 2% on Regiolux 60324024160 stail-SAX/1500-2 LED 8100 lm 840 ET vw mounting light if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Regiolux 60324024160 stail-SAX/1500-2 LED 8100 lm 840 ET vw mounting light we can offer you a price of 480,00 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
