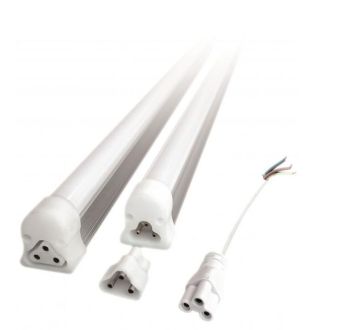

RED 5610-40-0007 LED LIXX® 18W 1180mm 4000K 1800lm alu content_copy

The RED LED LIXX® T5 4000K 18W 1180mm alu is a slim LED linear luminaire designed for indoor use. The product features a sleek aluminum profile with a PC plastic cover, enabling a modern and discreet appearance. The luminaire has a total length of 1180 mm and is designed for a color temperature of 4000 K, corresponding to neutral white. With a power consumption of 18 watts, it produces a luminous flux of 1800 lumens, providing sufficient brightness for office, retail, or production spaces. The IP20 protection rating ensures protection against finger contact and solid foreign objects, but not against splashing water – thus, the luminaire is suitable exclusively for indoor use.

Applications
The LED LIXX® T5 is suitable for wall, ceiling, and surface mounting in various indoor environments, particularly in offices, workshops, warehouses, or retail spaces. Its slim design allows for unobtrusive integration into existing architectures without visually overwhelming the space. The luminaire is especially suitable for applications requiring uniform, even illumination without creating strong light concentration.

Features and Equipment in Detail
The luminaire comes with a 25 cm long connection cable, enabling easy connection to the power supply. Additionally, a connection adapter is included, allowing up to 20 identical LIXX® luminaires to be connected in series and operated from a single power connection. This reduces the number of required power outlets and simplifies installation in larger areas. Mounting is done using two included mounting clips, which are secured with wall plugs and screws.

Technology Explained Simply
LED technology ensures high light output with low energy consumption. The color temperature of 4000 K corresponds to neutral white light, ideal for workspaces as it is neither too warm nor too cold. The rated lifespan of 50,000 hours means the luminaire will function for many years under normal operating conditions without requiring replacement of the light source. The IP20 protection rating safeguards against finger contact and solid foreign objects, but is not suitable for damp or wet environments.

Compatibility and Accessories
The luminaire is compatible with other models in the LIXX® series, particularly those with lengths of 580 mm (9W), 880 mm (14W), and 1480 mm (22W), all available in 4000 K. Connection via the included adapter allows for flexible arrangement. A separate on/off switch (part number 5140-10-0003) is available and can control up to 8 LIXX® luminaires, simplifying control of multiple luminaires from a single point.

Installation and Mounting
Mounting is done using the included clips, which are attached to the wall, ceiling, or a mounting frame. The luminaire is inserted into the clips and secured. Power supply is provided via the 25 cm long connection cable, which is connected to a suitable socket or electrical outlet. When connecting multiple luminaires, the connection adapter is placed between individual luminaires, allowing power to flow through the entire chain.

Operational Advantages
The LED LIXX® T5 offers high light output with low energy consumption, resulting in low operating costs. The long lifespan of 50,000 hours reduces maintenance requirements. The ability to connect up to 20 luminaires in series simplifies installation in larger areas. The slim design and neutral white light color ensure attractive and functional illumination in indoor environments.
