RED 2430-20-0001 rubber Schuko plug 230 V IP44

Your rating:
Average rating
product review for RED 2430-20-0001 rubber Schuko plug 230 V IP44
( 0 / 5 ) 0 ratings

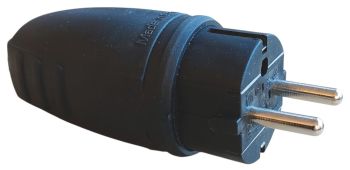

RED 2430-20-0001
This image may differ from the desired article.
4,89 EUR
( 5,82 EUR incl. VAT )
≈ £4.07  |  ≈ $5.36
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >500 pieces
1x RED 2430-20-0001 rubber Schuko plug 230 V IP44
Lieske Part No.:610977
Mfg Part No: 2430-20-0001
UPC/EAN: 4046725402503
Weight:0.123 kg
Type:Gummi Schuko-Stecker
Graduated prices net
From piecesPrice per pieces
504,63 EUR
1004,38 EUR
2504,12 EUR
5003,86 EUR

Product information for RED 2430-20-0001:

The RED rubber Schuko plug, type 2430-20-0001, is an electrical plug designed for use in household and commercial applications, manufactured in accordance with DIN 49441-2. It is intended for connecting electrical appliances to a socket outlet and provides protection against splashing water. The protection rating IP44 ensures that the plug is protected against splashing water from any direction, making it suitable for use in damp environments such as kitchens, bathrooms, or workshops. The housing is made of polypropylene (PP), while the plug cap is made of TPE (thermoplastic elastomer), an elastic material that offers better flexibility and weather resistance.

Applications

The plug is designed for indoor use, particularly in areas with increased humidity. The IP44 protection rating makes it suitable for environments where water may occasionally splash, but not for continuous wetness or submersion. It is intended for use with electrical appliances in household and commercial applications that require safe and reliable power supply.

Functions and Features in Detail

The plug features a two-pole configuration with protective earth contact (2 + PE), enhancing electrical safety. The protective earth contact technology includes two protective earth contact systems, ensuring secure earthing. Strain relief is provided by a pressure piece with two screws, protecting the connection cable from mechanical stress. The maximum torque specification is 0.4 Nm for the connection screws and 0.5 Nm for the strain relief, ensuring a secure connection without overloading.

Technology Explained Simply

The conductor cross-section coverage ranges from 0.75 to 2.5 mm², enabling use with a wide range of standard connection cables. The insulation stripping length is 75 to 80 mm, and the wire stripping length is 7 mm — complying with standards for safe and proper connection techniques. The PP material for the housing provides good mechanical stability and heat resistance, while TPE for the plug cap creates a flexible, durable surface that withstands frequent plugging and unplugging.

Compatibility and Accessories

The plug is compatible with standard Schuko socket outlets in Germany and other countries using the Schuko standard. Suitable accessories available in the range include, for example, the Original Plug SCHUKO & fr-be rubber (TPE) black IP44 type 1506, also designed for damp environments. Combination with compatible socket outlets or extension cords is possible, provided electrical and mechanical requirements are met.

Installation and Mounting

Installation is carried out by inserting the cable into the plug and securing the wires to the connection terminals. Strain relief is ensured via the pressure piece with two screws. The specified torques (0.4 Nm for connection, 0.5 Nm for strain relief) must be observed to ensure a secure and durable connection. The stripping lengths (75–80 mm for insulation, 7 mm for wire) are critical for correct installation and must be strictly adhered to.

Operational Advantages

The plug offers high mechanical stability and electrical safety due to integrated earthing. The materials PP and TPE ensure long service life and resistance to mechanical stress and moisture. The IP44 protection rating allows use in damp rooms without compromising electrical safety. Clear compliance with DIN 49441-2 ensures reliability and compatibility with common socket outlets and appliances.

General
Degree of protectionIP44
Manufacturer standardDIN 49441-2
Conductor cross section0.75 to 2.5 mm²
Number of poles2 + PE
Protective contacttwo protective earth systems
Tension reliefterminal block with 2 screws
Max. torque for terminal screws0,4 Nm
Max. torque for tension relief0,5 Nm
Sheath stripping length75-80 mm
Wire stripping length7 mm
Plug housing materialPP
Plug cap materialTPE


Questions & answers

What is the delivery time of RED 2430-20-0001 rubber Schuko plug 230 V IP44?

The article RED 2430-20-0001 rubber Schuko plug 230 V IP44 is currently in stock

According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RED 2430-20-0001 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RED 2430-20-0001 rubber Schuko plug 230 V IP44 always at the best possible price. We can give you a discount of 2% on RED 2430-20-0001 rubber Schuko plug 230 V IP44 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 50 pieces of RED 2430-20-0001 rubber Schuko plug 230 V IP44 we can offer you a price of 4,63 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
