RED 2410-60-0002 motion detector UP/Uni 55x55 180° detection angle 8 m range

Your rating:
Average rating
product review for RED 2410-60-0002 motion detector UP/Uni 55x55 180° detection angle 8 m range
( 4.8 / 5 ) 4 ratings
RED 2410-60-0002
This image may differ from the desired article.
116,62 EUR
( 138,78 EUR incl. VAT )
≈ £97.14  |  ≈ $127.93
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: >25 pieces
1x RED 2410-60-0002 motion detector UP/Uni 55x55 180° detection angle 8 m range
Lieske Part No.:877944
Mfg Part No: 2410-60-0002
UPC/EAN: 4046725401599
Weight:0.123 kg
Type:Bewegungsmelder UP/Uni
Graduated prices net
From piecesPrice per pieces
5109,62 EUR
10102,63 EUR
1595,63 EUR
2088,63 EUR

Product information for RED 2410-60-0002:

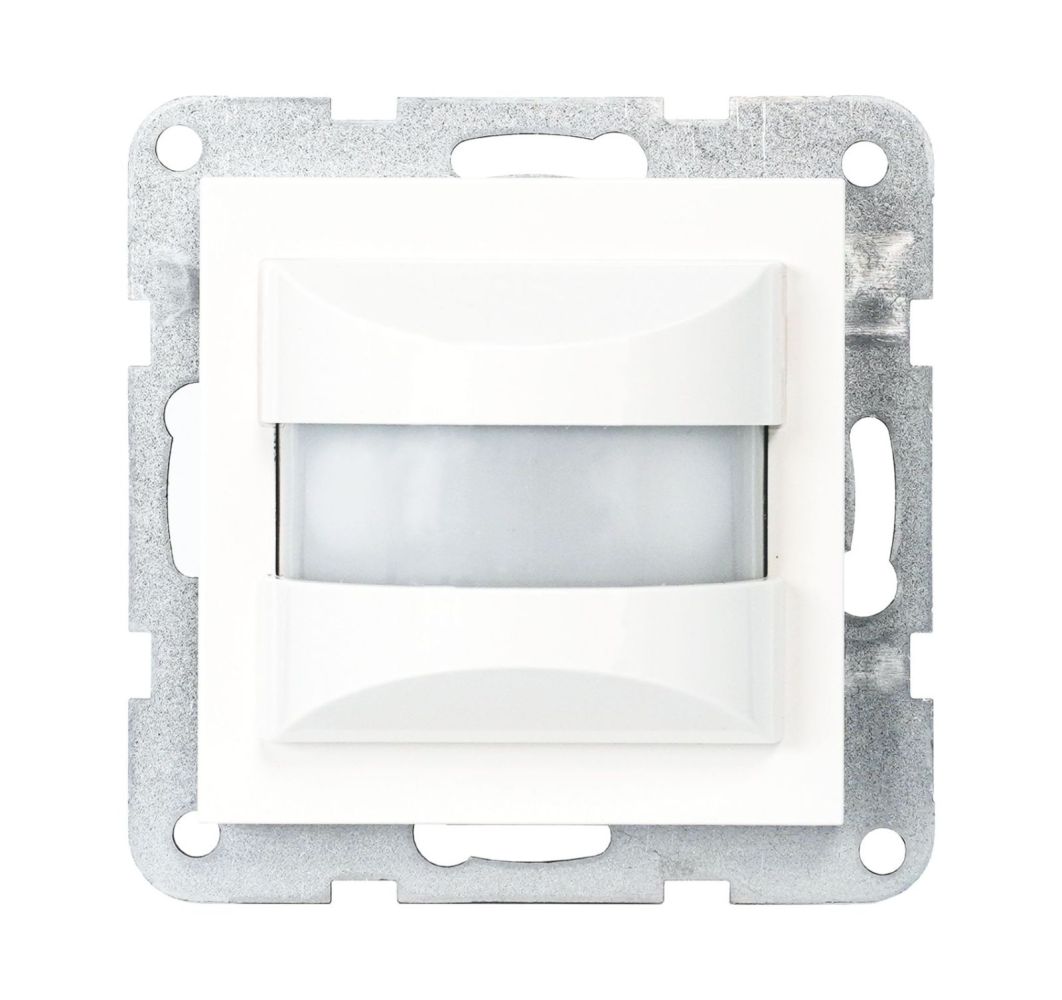

The RED flush-mounted motion sensor UP/Uni is an electronic switch for installation in standard electrical boxes. It is supplied as a complete unit, consisting of upper and lower parts, and is designed for the universal standard size of 55x55 mm, making it compatible with all common switch ranges. The sensor is designed for the automatic control of lighting systems, particularly in indoor spaces, where energy-saving and convenient operation are required.

Applications
This motion sensor is suitable for use in residential and commercial rooms, corridors, stairwells, and other indoor areas where automatic lighting control is desired. The mounting height is between 1 and 2 meters, enabling optimal detection of movements within the room. The 180° detection angle and a range of 8 meters ensure sufficient coverage of the surrounding area. The integrated ambient light measurement allows intelligent control, switching on only when ambient lighting falls below an adjustable brightness threshold of 5 to 500 lux.

Functions and Features in Detail
The sensor features a 3-wire connection system, enabling flexible integration into existing electrical installations. Time and brightness control allow individual adjustment according to specific requirements. The off-delay can be set between 10 seconds and 20 minutes, keeping the lighting on for a defined period after the last movement. A push-button input enables additional switching options, allowing use in combination with manual switches or other control elements. The dual-lens technology ensures precise motion detection and minimizes false alarms.

Technology Explained Simply
The dual-lens technology combines two optical sensors that detect movements in different directions, enabling reliable detection. The ambient light measurement analyzes the existing brightness in the room and switches on the lighting only when light conditions fall below the set threshold. The LED-compatible design means the sensor can also be operated with LED luminaires without causing functional issues or reducing lifespan. The 3-wire connection system requires a connection between power supply, load, and control line, ensuring a clear separation between signal and power lines.

Compatibility and Accessories
The sensor is suitable for use in combination with various switch and control systems. Compatible accessories include, for example, the Universal Push Dimmer 1-way Hauselektronik, the ARGUS 180 UP sensor module, relay switch inserts, as well as other sensors and switch inserts that enable functional expansion. Compatibility with other systems such as System M or System 55 is ensured by the standard size of 55x55 mm.

Installation and Mounting
Installation is carried out in flush-mounted fashion into a standard electrical box. The recommended mounting height of 1 to 2 meters ensures optimal detection of movements within the room. Installation requires connecting the three wires according to the 3-wire connection system. Settings for brightness and off-delay can be adjusted after installation, with detailed instructions provided in the respective installation manual.

Operational Advantages
Operating the motion sensor reduces energy consumption, as lighting is switched on only when actually needed. The adjustable parameters allow adaptation to different rooms and usage scenarios. The LED-compatible design expands application possibilities, especially in modern lighting systems. The combinability with auxiliary stations and push-button inputs offers flexibility in control design.

Protection Rating
The sensor is designed for indoor use.

General
Standard size55x55 mm
Connection system3-wire
Field of view180°
Transmission range8 m
Brightness threshold5 to 500 Lux
Switch-off delay10 s to 20 min
Mounting height1 to 2 m
Controltime and brightness control
Compatibilityall common switch ranges
Deliverycomplete unit (upper and lower part)
Technologydual lens technology
LED-compatibleYes
