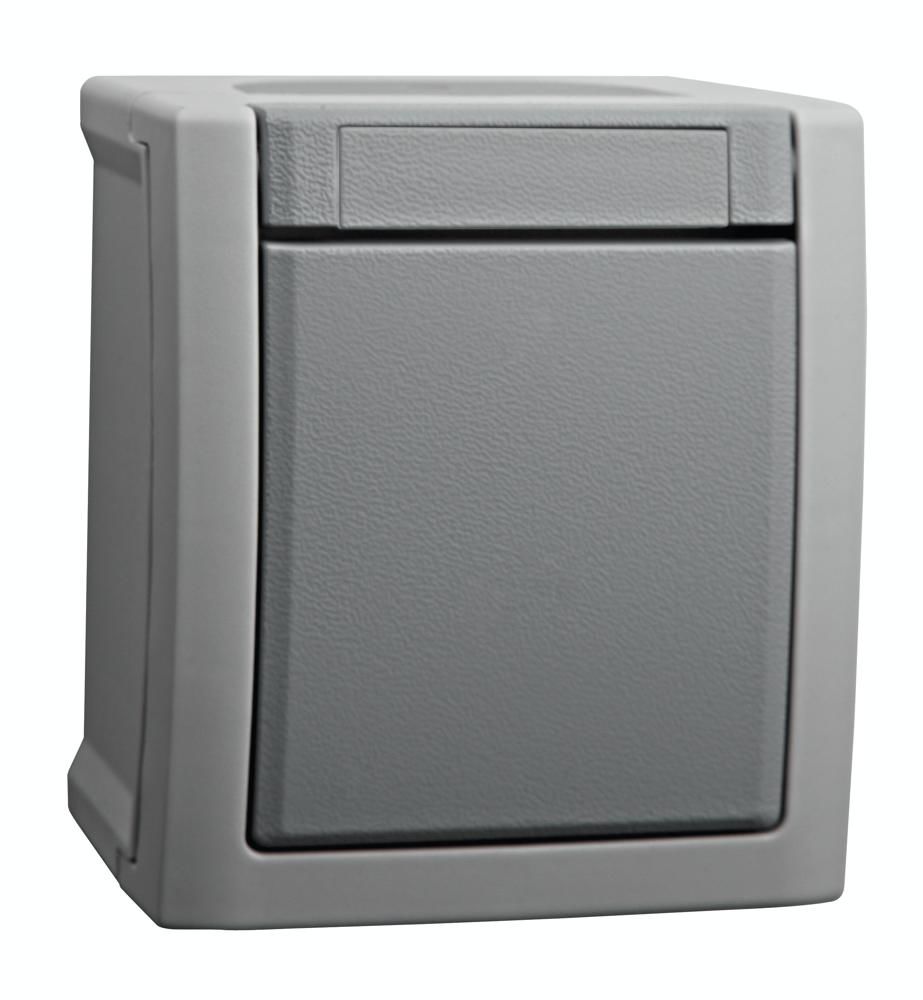

RED 2410-50-0003 Rocker switch closer FR AP IP54 250V 10A IK05
|
22,20 EUR 23,14 EUR |
|||||||||||
|
( 26,42 EUR incl. VAT ) ≈ £19.07 | ≈ $25.44 plus delivery charges: 53,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >10 pieces | |||||||||||
| Lieske Part No.: | 2022317 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2410-50-0003 | ||||||||||
| UPC/EAN: | 4046725358800 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Further Waterproof wall switch from REDFurther products in category Waterproof wall switch
All products of RED
Product information for RED 2410-50-0003:
SPLASH® rocker switch with N terminal. The SPLASH® series impresses with its large interior for easy wiring. The quick connections with plug-in terminals up to 2.5 mm2 and the patented, asymmetrical cable entry seals allow quick and easy installation. Through-wiring of the devices with 2.5 mm2 wires is also possible. In addition, the SPLASH® product range from RED has special earthing connections that enable switching in a group. The VDE-certified products are tested for impact resistance IK05. The SPLASH® series is available in gray. It is possible to use a labeling field for switches and sockets, which is available as an option. It can be opened and protected against the ingress of water and moisture by a plastic cover. Illuminated switch variants are available. In an almost optimal way, SPLASH® is manufactured with protection against dust and water ingress to guarantee protection class IP54. Wet areas, harsh conditions, dust, smoke, ...: the SPLASH® product range from RED is excellently suited to these requirements. 5 year guarantee.
Technical data
. Nominal voltage: 250 V
. Nominal current: 10 A
. Protection class: IP54
. Impact resistance: IK05
. Color: light gray RAL 7035
. Composition: base element with complete housing
. Installation type: surface-mounted
. Fastening type: screw fastening
. Material: thermoplastic, untreated
. Switching current for fluorescent lamps: 10 AX
. Connection type: plug-in terminal
Type: 2410-50-0003
Technical data
. Nominal voltage: 250 V
. Nominal current: 10 A
. Protection class: IP54
. Impact resistance: IK05
. Color: light gray RAL 7035
. Composition: base element with complete housing
. Installation type: surface-mounted
. Fastening type: screw fastening
. Material: thermoplastic, untreated
. Switching current for fluorescent lamps: 10 AX
. Connection type: plug-in terminal
Type: 2410-50-0003
Questions & answers
What is the delivery time of RED 2410-50-0003 Rocker switch closer FR AP IP54 250V 10A IK05?
The article RED 2410-50-0003 Rocker switch closer FR AP IP54 250V 10A IK05 is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RED 2410-50-0003 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RED 2410-50-0003 Rocker switch closer FR AP IP54 250V 10A IK05 always at the best possible price. We can give you a discount of 2% on RED 2410-50-0003 Rocker switch closer FR AP IP54 250V 10A IK05 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of RED 2410-50-0003 Rocker switch closer FR AP IP54 250V 10A IK05 we can offer you a price of 20,37 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
