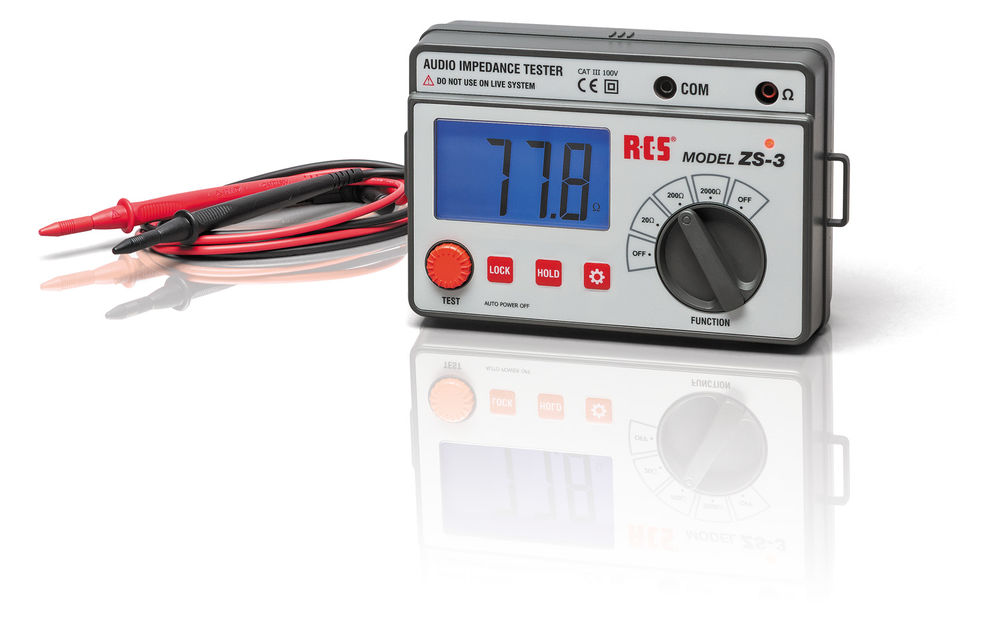

RCS Audio-Systems ZS-3 Digital impedance meter with accessories and storage bag

Your rating:
Average rating
product review for RCS Audio-Systems ZS-3 Digital impedance meter with accessories and storage bag
( 4.4 / 5 ) 13 ratings
RCS Audio-Systems ZS-3
This image may differ from the desired article.
RCS Audio-Systems ZS-3RCS Audio-Systems ZS-3
270,75 EUR
( 322,19 EUR incl. VAT )
≈ £226.62  |  ≈ $297.55
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems ZS-3 Digital impedance meter with accessories and storage bag
Datasheet:file_download Download
Lieske Part No.:1927763
Mfg Part No: ZS-3
UPC/EAN: 4250458201658
Weight:0.7 kg
Graduated prices net
From piecesPrice per pieces
4252,47 EUR
8234,20 EUR
12215,92 EUR
16197,65 EUR

Product information for RCS Audio-Systems ZS-3:

The digital impedance meter ZS-3 from RCS Audio-Systems is a precise measuring instrument for determining the actual impedance (apparent resistance) of loudspeakers, particularly for low-impedance systems and 100 V loudspeaker systems. It is used for quality inspection and maintenance of loudspeakers in installations, during mounting or in service, to ensure that the impedance matches the specified values. The measurement is performed using an integrated test generator that produces a constant frequency of 1 kHz, ensuring a reproducible and reliable measurement. The measured values are displayed on a 4-digit LCD display, which also features a Data-Hold function and a low battery voltage indicator.

Applications

The ZS-3 is suitable for use in electrical and loudspeaker installations, particularly for testing individual loudspeakers and loudspeaker lines in 100 V systems. It enables quick and accurate determination of impedance to detect malfunctions, cable breaks, or incorrect connections. Its application ranges from individual measurements on single loudspeakers to the inspection of complete loudspeaker systems in buildings, hotels, or event spaces.

Functions and Equipment in Detail

The device features three switchable measurement ranges: 0–20 Ohm, 0–200 Ohm, and 0–2000 Ohm. This selection allows for flexible use depending on requirements, whether for low-impedance loudspeakers (e.g. 4–8 Ohm) or high-voltage systems (100 V). The measurement accuracy is ±2 %, which is sufficient for professional applications. The connections consist of banana plugs, ensuring a secure and conductive connection. The device is powered by six 1.5 V AA batteries (type AA), which are included in the delivery.

Technology Explained Simply

Impedance is the total resistance of a loudspeaker, resulting from resistance, inductance, and capacitance. The ZS-3 measures this value at a frequency of 1 kHz, a standard in loudspeaker testing. The digital display allows for clear and immediate readability of the values. The Data-Hold function retains the measured value on the display even after the measurement is completed, which is helpful for documenting results. The battery indicator informs the user when the voltage falls below a critical level, preventing measurement errors.

Compatibility and Accessories

The ZS-3 is specifically designed for testing loudspeakers in low-impedance and 100 V systems. It is equipped with two test cables featuring detachable test clamps, enabling flexible and secure connections to loudspeakers. The device documentation includes a conversion table for power values, which can assist in interpreting measurement results. Factory calibration is optionally available to further ensure the device’s accuracy.

Mounting and Installation

The device is compact and portable, with dimensions of 168 × 110 × 62 mm and a weight of 584 g (including batteries). It is delivered in a durable, padded vinyl carrying case that protects the device and accessories. The case features three internal compartments, providing space for test cables, test clamps, a shoulder strap, and spare batteries. A shoulder strap is also included in the delivery, enhancing portability and ease of transport.

Advantages in Operation

The ZS-3 offers high measurement accuracy, a clear digital display, and a robust design. The integrated battery monitoring and Data-Hold function increase reliability and efficiency during work. The comprehensive equipment, including test cables, batteries, shoulder strap, and protective case, makes the device immediately ready for use. The use of banana plugs ensures a secure and conductive connection, which is essential for precise measurements. The measurement frequency of 1 kHz is a standard in loudspeaker testing and enables comparable results across different devices.

Delivery Contents

The ZS-3 is delivered with the following components: Digital impedance meter with protective cover, two test cables with detachable test clamps, six AA batteries (type AA), a shoulder strap, a vinyl storage case with three internal compartments, and device documentation including a conversion table for power values.

Technical data
Power supply6 x 1.5V Mignon battery (AA)
Measurement ranges0-20 Ohm, 0-200 Ohm, 0-2000 Ohm
Measurement frequency1 kHz
ConnectionsBanana plug
Dimensions (W x H x D)168 x 110 x 62 mm
Accuracy of measurement±2%


Product data sheet
Datasheet for RCS Audio-Systems ZS-3, EAN: 4250458201658
