RCS Audio-Systems WFC-015 U 19˝-angle Flight-Case 15 U content_copy

The WFC-015 U from RCS Audio-Systems is a professional 48,3 cm ( 19 inch )-angle flight case with a height of 15 rack units (U), specifically designed for use in event technology. It is intended for the secure transport and stable mounting of 48,3 cm ( 19 inch ) equipment such as mixing consoles, amplifiers, or control units, particularly for tours, stage events, and shipping via freight or air freight. The case conforms to the international 48,3 cm ( 19 inch ) standard and features a particularly large internal depth of 500 mm, enabling the installation of larger or deeper devices.

Applications
This flight case is designed for professional use in live event technology and stage construction. Its robust construction ensures protection for sensitive electronics during transport and storage. The integrated, upright 48,3 cm ( 19 inch ) rack rail in the upper section allows for an ergonomic angled positioning of mixing consoles, facilitating easier operation during events. The construction is also suitable for outdoor use, as the housing is made from high-quality materials that withstand mechanical stress.

Features and Equipment in Detail

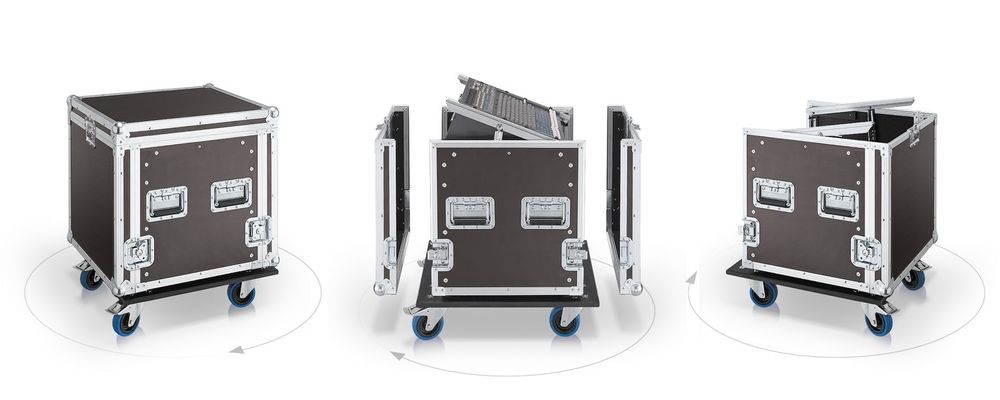

The housing body is made of 7 mm thick multi-layer birch plywood in Double Door configuration, ensuring high stability and durability. All eight outer corners are reinforced with high-gloss zinc-plated ball corners to minimize mechanical stress during transport and installation. A continuous edge protection made of 25/25 mm aluminium profile provides additional stability and protects the edges. The case features three removable lids — on the front, rear, and top — facilitating access to the equipment and enabling flexible use.

Technology Explained Simply
The internal depth of 500 mm is particularly relevant for devices with greater depth, such as mixing consoles with integrated processors or amplifiers with heat sinks. The overall height is 805 mm, the internal height (inside) is 680 mm, the overall width is 550 mm, and the overall depth is 685 mm. The 15 U corresponds to a height of 666.75 mm (1 U = 44.45 mm), with the internal height designed to 680 mm to ensure secure installation. The upright rack rail in the upper section is designed for angled positioning of up to 10 U, enabling ergonomic operation of mixing consoles.

Compatibility and Accessories
The case is designed for mounting 48,3 cm ( 19 inch ) equipment and provides a 48,3 cm ( 19 inch ) rack mounting in the upper section. It is equipped with 4 spring-loaded butterfly latches to ensure secure locking. The 4 recessed folding handles in shell design allow for safe and comfortable lifting and carrying. At the bottom, there are 4 stable rubber feet that stabilize the case when standing upright. As an accessory, a roll base (RUS-101) is available, equipped with 100 mm Blue-Wheels, enabling mobile use.

Installation and Mounting
Mounting is done via the integrated 48,3 cm ( 19 inch ) rack rail in the upper section, designed for angled positioning. Mounting hardware for 48,3 cm ( 19 inch ) equipment is included in the delivery scope depending on the model. The removable lids facilitate installation and removal of equipment. The butterfly latches and folding handles are factory-installed and require no additional assembly.

Operational Advantages
The WFC-015 U offers high stability and protection for sensitive event technology. The large internal depth of 500 mm allows installation of larger devices, while the upright rack rail ensures ergonomic operation. The robust construction from birch plywood and aluminium profiles ensures long service life. The removable lids and integrated handles facilitate transport and maintenance. The case is designed for use in professional environments where reliability and device protection are paramount.

Technical data
Mounting height (internal)	680 mm
Overall width (external)	550 mm
Mounting depth (inside)	500 mm
Total height (external)	805 mm
Height units	15 HE
Overall depth (external)	685 mm
19" rack mounting

---
