RCS Audio-Systems VLZ-6240 A Small central unit VARIO-LINE (6 speaker circuits, 360/240 W, 3 U)
|
1.035,50 EUR |
|||||||||||
|
( 1.232,25 EUR incl. VAT ) ≈ £862.57 | ≈ $1,135.94 plus delivery charges: 148,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 886087 | ||||||||||
| Mfg Part No: | VLZ-6240 A | ||||||||||
| UPC/EAN: | 4250458286860 | ||||||||||
| Weight: | 15 kg | ||||||||||
| Type: | VLZ-6240A | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems VLZ-6240 A:
Applications
This unit is designed for professional public address systems requiring central control of multiple speaker zones. It is particularly suitable for emergency warning systems where clear and reliable voice transmission is essential. Control is achieved via VARIO-LINE talk stations VLM-100A, VLM-106, and VLM-206, which enable digital remote control of speaker circuits. The VLM-206 can also remotely control the Digital Text Module DM-10.
Functions and Equipment in Detail
The VLZ-6240A features three prioritizable MIC/LINE inputs, each connectable via combo jacks (XLR and 6.3 mm jack). Inputs 1 and 2 have priority over the others. Each input is equipped with a gain control and switchable phantom power (18 V DC). The MIC-1 input additionally offers an RJ45 connector for connecting to talk stations. The inputs are electronically balanced, ensuring stable signal transmission.
Technology Explained Simply
The output power is 360 W (program) and 240 W RMS, which can be distributed as needed across the six speaker circuits. The frequency response ranges from 40 Hz to 20,000 Hz (better than -3 dB), enabling clear reproduction of speech and music. The noise level is over 70 dB for MIC inputs and over 80 dB for LINE inputs, ensuring high signal purity. The total harmonic distortion is better than 1 % at 1 kHz, indicating low distortion and high sound quality. Power supply is via 230 V AC (50–60 Hz) and is designed for operation with 24 V DC backup power, enhancing system reliability in emergencies.
Compatibility and Accessories
The amplifier is equipped with AMP-IN and PRE-OUT interfaces, enabling cascading with additional amplifiers. Optional 0-dB attenuators can be integrated to extend cascading across the six output circuits. A slot is provided for media modules such as CD, MP3, tuner, or cassette modules. Optional modules such as FD-21 (power amplifier monitoring), FM-30 (fault indication for fan or fuse failure), and FS-40 (anti-feedback module) can be added to enhance system monitoring and sound quality.
Mounting and Installation

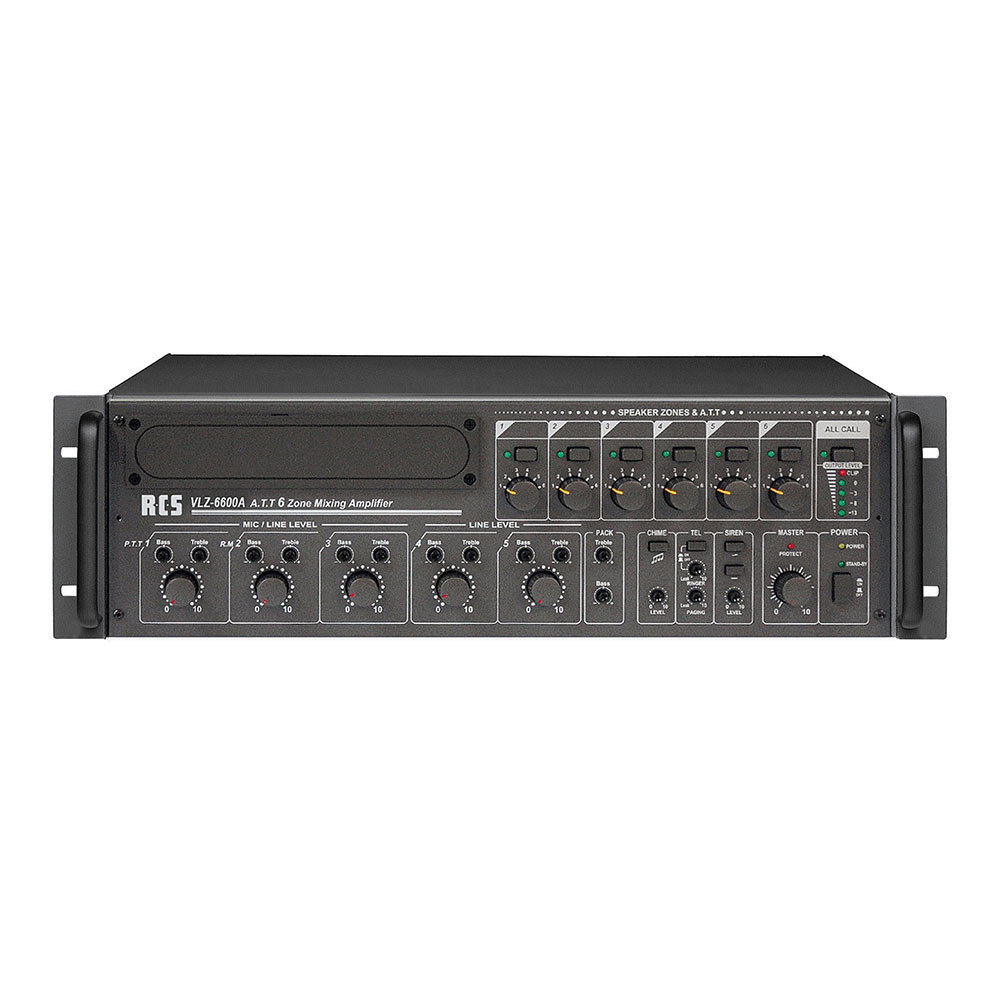

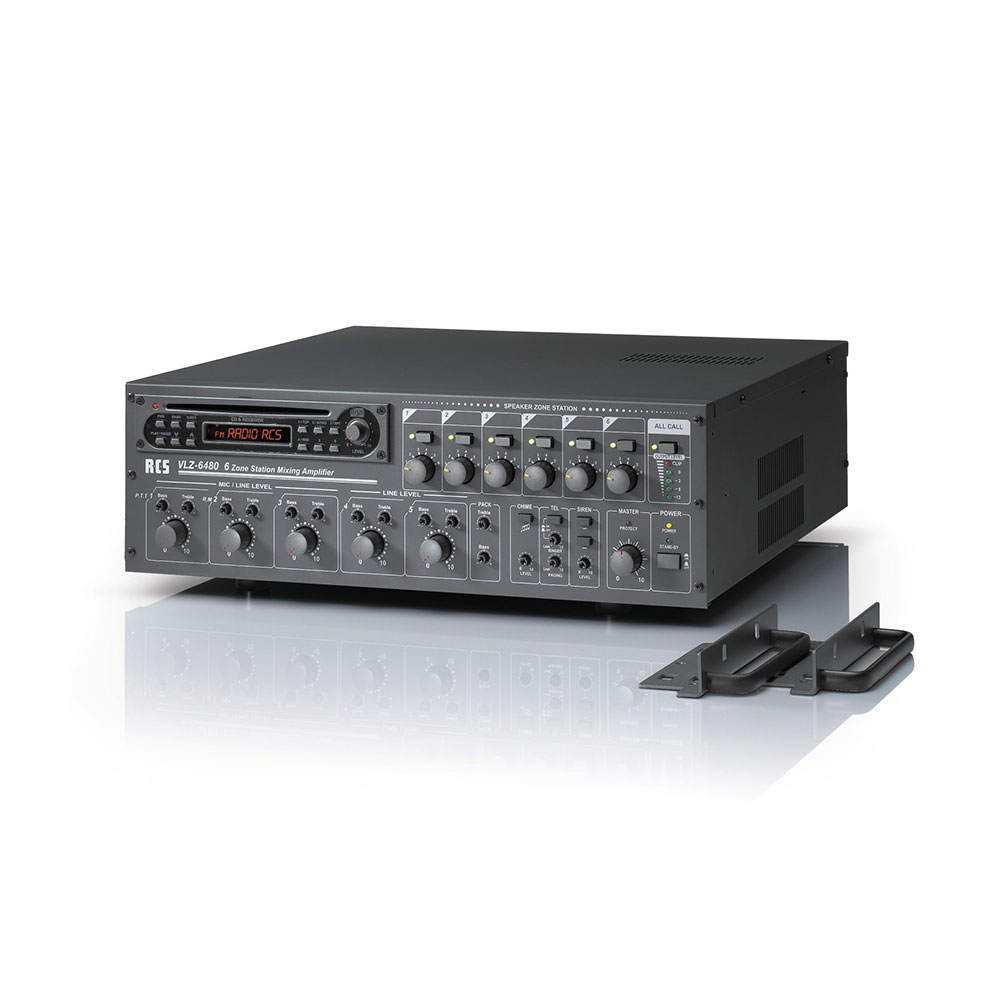

The unit can be used as a tabletop device or mounted in a 48,3 cm ( 19 inch ) rack. The 48,3 cm ( 19 inch ) mounting brackets are included in the delivery. The front panel features controls for individual zone volume adjustment, a master volume control, and switches and buttons for gong and siren functions. The rear panel includes connections for speakers (100 V, 70 V, 4 Ohm), inputs (MIC/LINE), auxiliary inputs (AMP-IN, PRE-OUT), power input, and connection for 24 V DC backup power.
Operational Advantages
Zone-based control allows targeted public address to specific areas, while the All-Call function enables immediate alerting of all zones. The integrated siren can operate in three modes: constant, rising and falling. The 2- or 4-tone gong is switchable and adjustable via the front panel. The TEL-Paging function with priority switching allows prioritization of emergency calls. Thermally controlled fan cooling and protection circuits such as overload, overcurrent, and soft start ensure reliable operational safety.
Delivery Contents
The delivery includes the VARIO-LINE amplifier VLZ-6240A, a power cable, and the operating instructions.
| Technical data | |
| Inputs MIC – AUX/LINE | All Mic/Line inputs are electronically balanced. Inputs 1+2 have priority. All Mic/Line inputs feature combo jacks (6.3 mm jack, XLR). Mic: -50dB (2.45 mV), Line: -10dB (245 mV) |
| Additional input or output | AMP-IN: +4dB (1.23 V), PRE-OUT: 0dBu (775 mV) |
| Outputs, speakers | 100 V, 70 V, low-impedance 4 Ohm |
| Frequency response | 40 Hz - 20.000 Hz (better -3 dB) |
| Dimensions (W x H x D) | 483x133x356 mm |
| Noise level | MIC better 70 dB, LINE better 80 dB |
| Total harmonic distortion | better than 1% at 1kHz |
| Power supply AC/DC | 230 V AC (50-60 Hz), 24 V DC |
| Gong and siren | 2- or 4-tone gong (switchable); siren constant or rising and falling, adjustable at the front |
