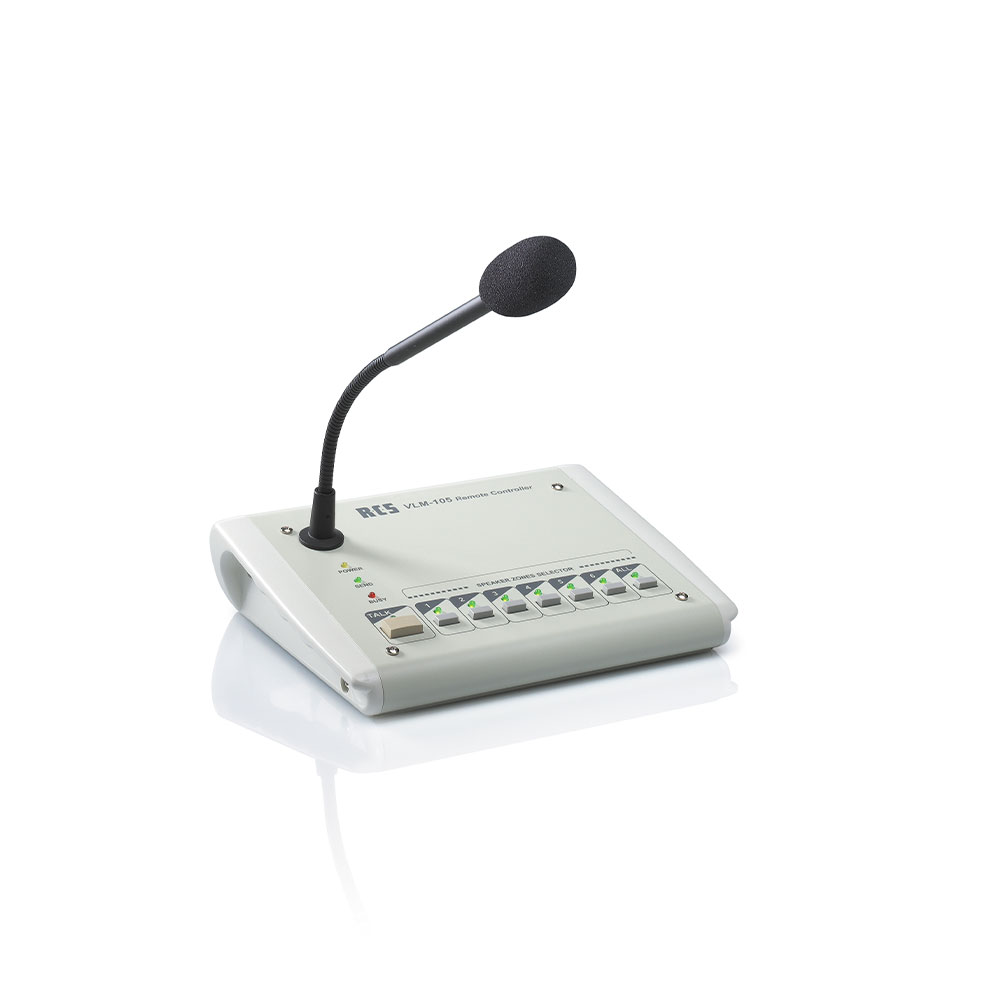

RCS Audio-Systems VLM-106 Microphone station (for 6 circuits)

Your rating:
Average rating
product review for RCS Audio-Systems VLM-106 Microphone station (for 6 circuits)
( 4.5 / 5 ) 76 ratings
RCS Audio-Systems VLM-106
This image may differ from the desired article.
361,00 EUR
( 429,59 EUR incl. VAT )
≈ £301.80  |  ≈ $398.91
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems VLM-106 Microphone station (for 6 circuits)
Datasheet:file_download Download
Lieske Part No.:717780
Mfg Part No: VLM-106
UPC/EAN: 4250458245560
Weight:0.5 kg
Graduated prices net
From piecesPrice per pieces
4336,63 EUR
8312,27 EUR
12287,90 EUR
16263,53 EUR

Product information for RCS Audio-Systems VLM-106:

The VLM-106 is a digital microphone station from manufacturer RCS Audio-Systems, specifically developed for remote control of compact central units in the VARIO-LINE series. It enables selection and control of up to six individual speaker circuits, as well as the function of a group call. The device features an integrated condenser gooseneck microphone with cardioid polar pattern and an integrated two-tone pre-announcement, which allows for a clear and distinct announcement before the actual signal. The station is designed for use in professional sound systems, particularly in environments requiring precise zone control and priority management.

Applications

The VLM-106 is suitable for applications in buildings with multiple speaker zones, such as schools, hospitals, office complexes, or industrial facilities. It is used for remote control of central units in the VLZ series and enables individual selection of up to six speaker circuits. The integrated priority control allows certain messages or alarms to be prioritized over other signals, which is important in safety-critical situations. Additionally, the station can integrate external audio sources such as CD players or MP3 players via an AUX-IN socket (L + R, CINCH).

Functions and Equipment in Detail

The device features an RJ-45 socket for communication with the central unit and supports remote control of the Digital Text Module DMT-10. Control is performed via a digital interface enabling bidirectional communication. The station can process both switching and status signals, allowing feedback on the status of speaker zones or system functions. The integrated LED indicator on the device signals operational status and current zone selection. The maximum total cable length for up to six stations in series is 100 meters; with three stations, a maximum length of 250 meters is possible.

Technology Explained Simply

The VLM-106 operates using digital communication technology connected to the central unit via a system cable (e.g., flat ribbon cable or RJ45). Data transmission occurs via a digital protocol ensuring reliability and accuracy of control commands. The integrated condenser microphone with cardioid polar pattern ensures targeted voice pickup and minimizes background noise. The two-tone pre-announcement serves as an acoustic signal played before the actual message to attract the listeners' attention. The priority control allows certain messages to be prioritized over others, which is important in emergencies or during alarms.

Compatibility and Accessories

The station is compatible with central units in the VARIO-LINE series and can be combined with the function expansion module RR-60, which enables feedback-capable control of speaker zones, system functions, and priorities. The RR-60 module is factory-integrated into the station or can be installed as a retrofit solution. It supports LED feedback and function logic directly in the control device. The station is also compatible with the control panel VPM-6000 U. The delivery includes the digital receiver module RR-60 as well as installation and connection instructions. Installation is recommended to be performed by authorized specialists.

Mounting and Installation

The VLM-106 is designed as an internal module and is factory-integrated into the station or installed as a retrofit solution. Installation is carried out via the RJ-45 socket and designated connection points. The maximum total cable length is 100 meters for six stations in series; with three stations, a length of 250 meters is possible. The station is designed for indoor use and features a robust construction with dimensions of 203 x 325 x 155 mm.

Operational Advantages

The VLM-106 provides reliable and precise control of up to six speaker zones, with bidirectional communication enabling feedback on the status of zones. The integrated priority control and two-tone pre-announcement enhance communication efficiency and safety. Compatibility with the RR-60 module extends functionality and enables complex control operations. The station is suitable for use in safety-critical installations, as it ensures clear and unambiguous signal transmission. Simple installation and robust construction ensure long service life and low maintenance costs.

Technical data
Speaker circuits6
Dimensions (W x H x D)203 x 325 x 155 mm


Please note...
If you pay by prepayment or on account, we will ship this article for free within Germany ! Note that although the delivery charges will be shown to you in the shopping cart, we won't charge them.
Product data sheet
Datasheet for RCS Audio-Systems VLM-106, EAN: 4250458245560
