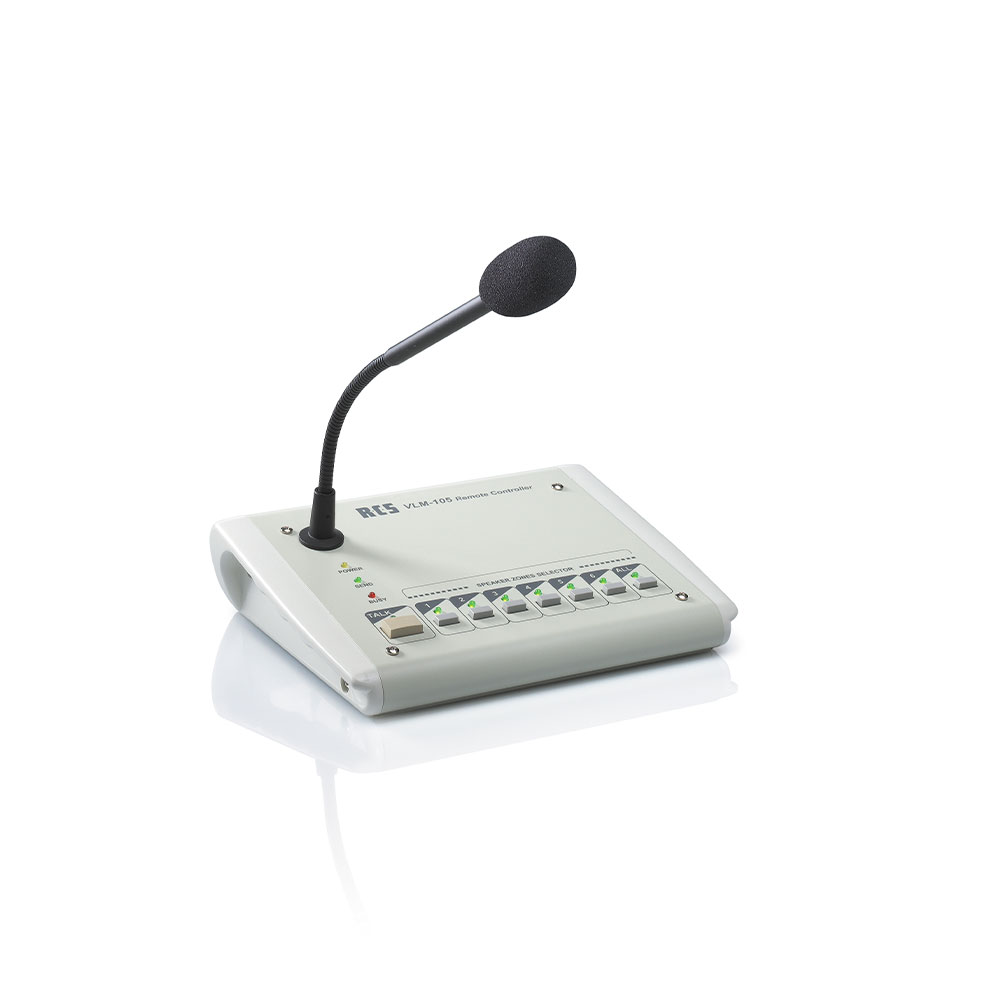

RCS Audio-Systems VLM-106 WO Digital microphone station (like VLM-106, however without RR-60 interface)

Your rating:
Average rating
product review for RCS Audio-Systems VLM-106 WO Digital microphone station (like VLM-106, however without RR-60 interface)
( 4.5 / 5 ) 23 ratings
RCS Audio-Systems VLM-106 WO
This image may differ from the desired article.
RCS Audio-Systems VLM-106 WORCS Audio-Systems VLM-106 WO
302,10 EUR
( 359,50 EUR incl. VAT )
≈ £252.56  |  ≈ $333.82
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems VLM-106 WO Digital microphone station (like VLM-106, however without RR-60 interface)
Datasheet:file_download Download
Lieske Part No.:790055
Mfg Part No: VLM-106 WO
UPC/EAN: 4250458235660
Weight:0.2 kg
Type:VLM-106WO
Graduated prices net
From piecesPrice per pieces
4281,71 EUR
8261,32 EUR
12240,92 EUR
16220,53 EUR

Product information for RCS Audio-Systems VLM-106 WO:

The digital microphone station VLM-106WO from RCS Audio-Systems is a desktop device for targeted control of up to 6 individual speaker lines in compact sound systems. It is specifically designed for applications such as schools, administrative buildings, public facilities, or industrial environments, where clear and reliable announcement functions are required. The station enables individual zone selection via 6 zone selection buttons, as well as an All-Call function for announcements to all zones simultaneously. An integrated acoustic pre-announcement, which can be turned on and off, improves the perception of the announcement. Operation is performed via a Push-to-Talk microphone button, which activates voice transmission. Digital signal transmission ensures a stable connection to the central unit, with power supply provided by the connected central unit.

Applications
This station is particularly suitable for small to medium-sized sound systems where central control of multiple speaker zones is required. It is ideal for applications in educational institutions, administrations, or industrial environments, where targeted announcements, e.g. during evacuations or general information, are necessary. Digital control enables precise and interference-free communication over the connected speaker circuits.

Functions and Equipment in Detail
The station features 6 independently selectable speaker zones, each of which can be activated individually. The All-Call function enables simultaneous announcements to all zones. An integrated gooseneck condenser microphone with cardioid polar pattern ensures high speech intelligibility. The pre-announcement, available in two sound variants, serves as an acoustic signal to draw attention before the announcement. Operation is performed via a Push-to-Talk button, which activates voice transmission as soon as it is pressed.

Technology Explained Simply
Digital signal transmission takes place via a system cable, which is implemented via RJ45 connectors depending on the model. The station communicates with the central unit via a digital protocol, ensuring reliable and interference-free transmission of control and voice signals. The station is designed as a desktop device, allowing flexible placement at various locations within the building.

Compatibility and Accessories
The station is compatible with VARIO-LINE Digital systems and can be operated with compact central units VLZ-6120A to VLZ-6600A. The maximum total cable length is 100 meters for up to 6 stations in series, and up to 250 meters for 3 stations. A 3 m data cable with 8-pin RJ-45 connectors is included in the delivery scope.

Mounting and Installation
The station is mounted as a desktop device and requires no special installation. Installation is performed via the connected central unit, with the system cable connected via RJ45 connectors. Power supply is provided by the central unit, so no additional power sources are required. Operation is performed via the front-mounted buttons, ensuring intuitive use.

Advantages in Operation
Digital control enables precise and interference-free communication over the connected speaker circuits. The ability to address individual zones or all zones simultaneously offers flexibility in use. The integrated pre-announcement increases the perceptibility of the announcement, while the gooseneck microphone ensures clear voice transmission. Power supply via the central unit reduces the number of required power connections and simplifies installation.

Delivery Scope
Included in the delivery scope: 1x microphone station (6-channel digital), 1x gooseneck microphone, connection cable (model-dependent, 3 m data cable with RJ-45 connectors), and the operating instructions.

Technical data
Speaker circuits6
Dimensions (W x H x D)203 x 325 x 155 mm


Please note...
If you pay by prepayment or on account, we will ship this article for free within Germany ! Note that although the delivery charges will be shown to you in the shopping cart, we won't charge them.
Product data sheet
Datasheet for RCS Audio-Systems VLM-106 WO, EAN: 4250458235660

Questions & answers

What is the delivery time of RCS Audio-Systems VLM-106 WO Digital microphone station (like VLM-106, however without RR-60 interface)?

The article RCS Audio-Systems VLM-106 WO Digital microphone station (like VLM-106, however without RR-60 interface) is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems VLM-106 WO to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems VLM-106 WO Digital microphone station (like VLM-106, however without RR-60 interface) always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems VLM-106 WO Digital microphone station (like VLM-106, however without RR-60 interface) if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of RCS Audio-Systems VLM-106 WO Digital microphone station (like VLM-106, however without RR-60 interface) we can offer you a price of 281,71 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
