RCS Audio-Systems SC-520 AB A/B in-ceiling speaker, square, 2x 15/10 W, 100 V, white

Your rating:
Average rating
product review for RCS Audio-Systems SC-520 AB A/B in-ceiling speaker, square, 2x 15/10 W, 100 V, white
( 4.4 / 5 ) 18 ratings

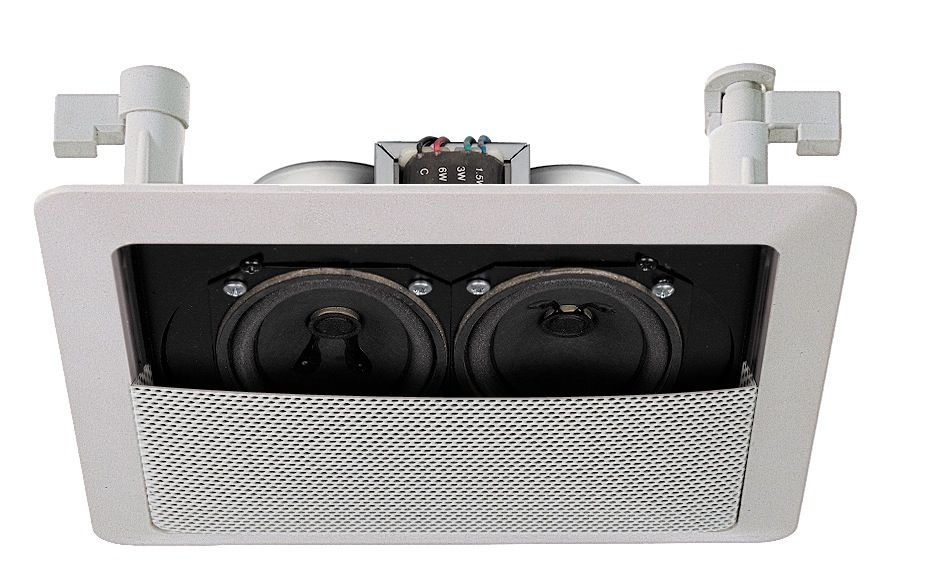

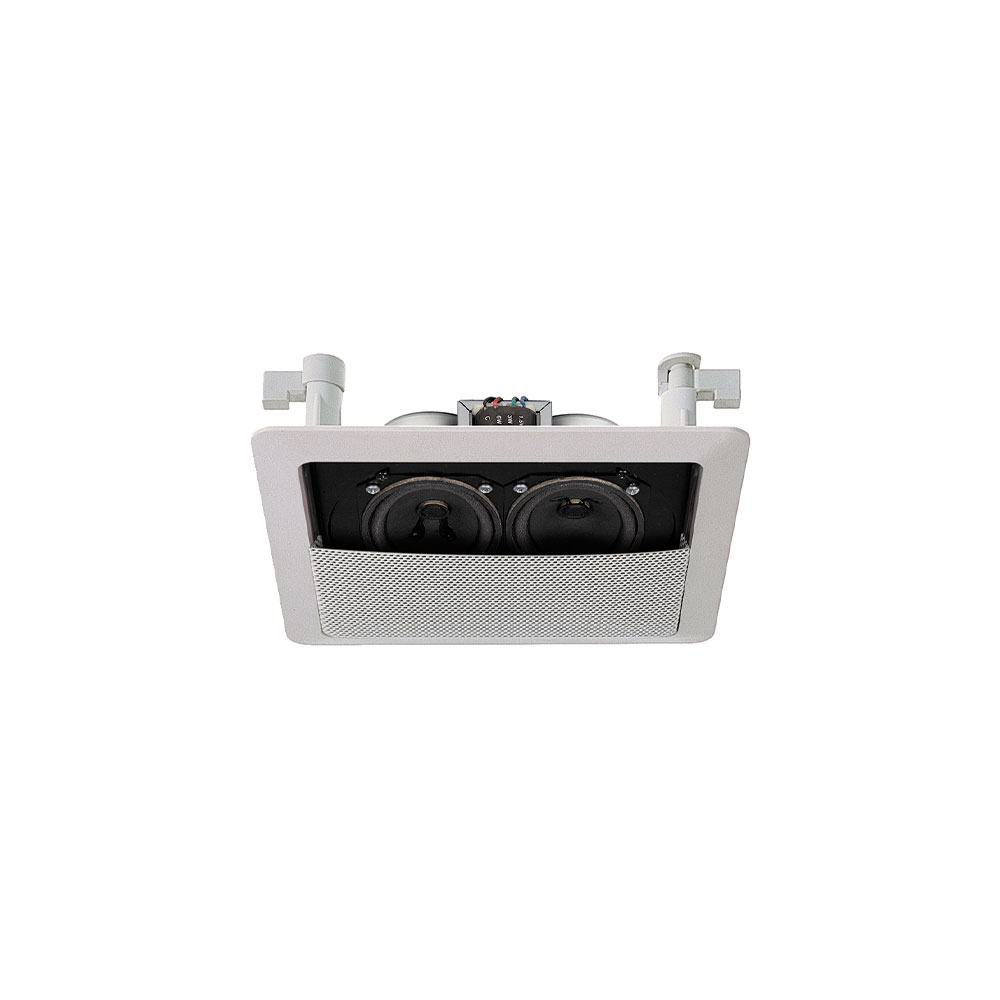

RCS Audio-Systems SC-520 AB
This image may differ from the desired article.
RCS Audio-Systems SC-520 ABRCS Audio-Systems SC-520 AB
85,50 EUR
( 101,74 EUR incl. VAT )
≈ £71.48  |  ≈ $94.48
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems SC-520 AB A/B in-ceiling speaker, square, 2x 15/10 W, 100 V, white
Datasheet:file_download Download
Lieske Part No.:276325
Mfg Part No: SC-520 AB
UPC/EAN: 4250458204987
Weight:2.2 kg
Type:SC-520AB
Graduated prices net
From piecesPrice per pieces
679,73 EUR
1273,96 EUR
2468,19 EUR
3662,42 EUR

Product information for RCS Audio-Systems SC-520 AB:

The SC-520 AB from RCS Audio-Systems is an A/B in-ceiling speaker for safety-critical voice alarm systems, enabling the required redundant sound coverage in accordance with DIN EN 60849 / VDE 0828. It features two 10,2 cm ( 4 inch ) x 6,3 cm ( 2,5 inch ) oval wideband speakers and two 100-V transformers in a single housing, thus achieving a space-saving and technically secure A/B configuration. This design is particularly suitable for public buildings, educational institutions, airports, and shopping centres, where reliable alarm notification in emergencies is crucial.

Applications

The speaker is designed for use in indoor environments, especially in rooms with high requirements for safety and acoustics. The integrated A/B cabling enables redundant signal transmission, ensuring that if one channel fails, the other continues to operate. This is essential for compliance with standards in safety-critical installations. Its robust construction also makes it suitable for areas with increased theft risk.

Functions and Equipment in Detail

The SC-520 AB is equipped with a quick-tension locking system, enabling tool-free installation in various ceiling types, including plasterboard. Installation is carried out using an installation frame made of high-quality plastic and a perforated sheet metal plate made of coated steel, ensuring a theft-secure construction. The external design is discreet, with a frame height of approximately 2 mm, allowing the speaker to blend seamlessly into the ceiling.

Technology Explained Simply

The speaker operates in a 100-V network, a standard for professional sound systems, enabling long cable runs without signal loss. The rated power handling is 2 x 10 W (program power), with a maximum power of 15 W per channel. The impedance matching at 100 V is configured as 2 x 10/5/2.5 W, allowing flexible adaptation to various power requirements. The impedance is 8 Ohm, suitable for use with standard amplifiers and networks. The frequency range is 90 – 16,000 Hz (±10 dB), enabling clear reproduction of speech and music. The sound pressure level is 96 dB at 1 W/1 m and 113.4 dB at maximum power (Pmax/1 m), with the maximum value measured at 182 Hz. The radiation angle is 180° (-6 dB at 1 kHz), ensuring even sound distribution over a wide area.

Compatibility and Accessories

The SC-520 AB is available in various versions: The wet room version (FI-100) features special impregnation of the chassis and transformers for use in damp environments. The fire protection variant (BS-5839) includes a ceramic terminal, a thermal fuse, and fire-resistant cable to meet fire safety requirements. Custom RAL special painting is available upon request to match the surrounding environment. Additionally, an installation flange (EZ-120) is available for installation in brick, concrete, or other solid ceilings.

Installation and Mounting

Installation is carried out by fitting the speaker into a square ceiling cutout with a side length of 185 mm ±5 mm. The external dimensions of the speaker are 220 mm, with an installation depth of 70 mm. The quick-tension system adapts to various ceiling thicknesses and allows for fast and secure mounting without tools.

Operational Advantages

The SC-520 AB offers high reliability due to its redundant A/B structure, easy installation thanks to the quick-tension system, and long service life due to its robust construction. The discreet external dimensions ensure unobtrusive integration into architectural design. The high sound pressure output guarantees clear and intelligible speech transmission, even in large rooms. The availability of various versions (wet room, fire protection, special painting) expands application possibilities in different environments.

Technical data
Beam angle (-6dB, 1 kHz)180°
Adjustments at 100 V2 x 10/5/2,5 W
Speaker2 St. 4" x 2,5"
Sound pressure level (SPL) Pmax/1 m113,4 dB @182Hz
Built-in depth70 mm
Rated load capacity (program)2 x 10 (15) W
ShapeAngular
Dimensions Ø220 mm
Ceiling cutout, square185 x 185 mm ±5 mm
Sound pressure level (SPL) 1 W/1 m96 dB
Frequency range (±10dB)90 – 16.000 Hz
ColourWhite
Impedance8 Ohm


Product data sheet
Datasheet for RCS Audio-Systems SC-520 AB, EAN: 4250458204987

Questions & answers

What is the delivery time of RCS Audio-Systems SC-520 AB A/B in-ceiling speaker, square, 2x 15/10 W, 100 V, white?

The article RCS Audio-Systems SC-520 AB A/B in-ceiling speaker, square, 2x 15/10 W, 100 V, white is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems SC-520 AB to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems SC-520 AB A/B in-ceiling speaker, square, 2x 15/10 W, 100 V, white always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems SC-520 AB A/B in-ceiling speaker, square, 2x 15/10 W, 100 V, white if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of RCS Audio-Systems SC-520 AB A/B in-ceiling speaker, square, 2x 15/10 W, 100 V, white we can offer you a price of 79,73 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
