RCS Audio-Systems SC-512 AB A/B in-ceiling speaker, square, 2x 15/6 W, 100 V, white

Your rating:
Average rating
product review for RCS Audio-Systems SC-512 AB A/B in-ceiling speaker, square, 2x 15/6 W, 100 V, white
( 4.5 / 5 ) 19 ratings

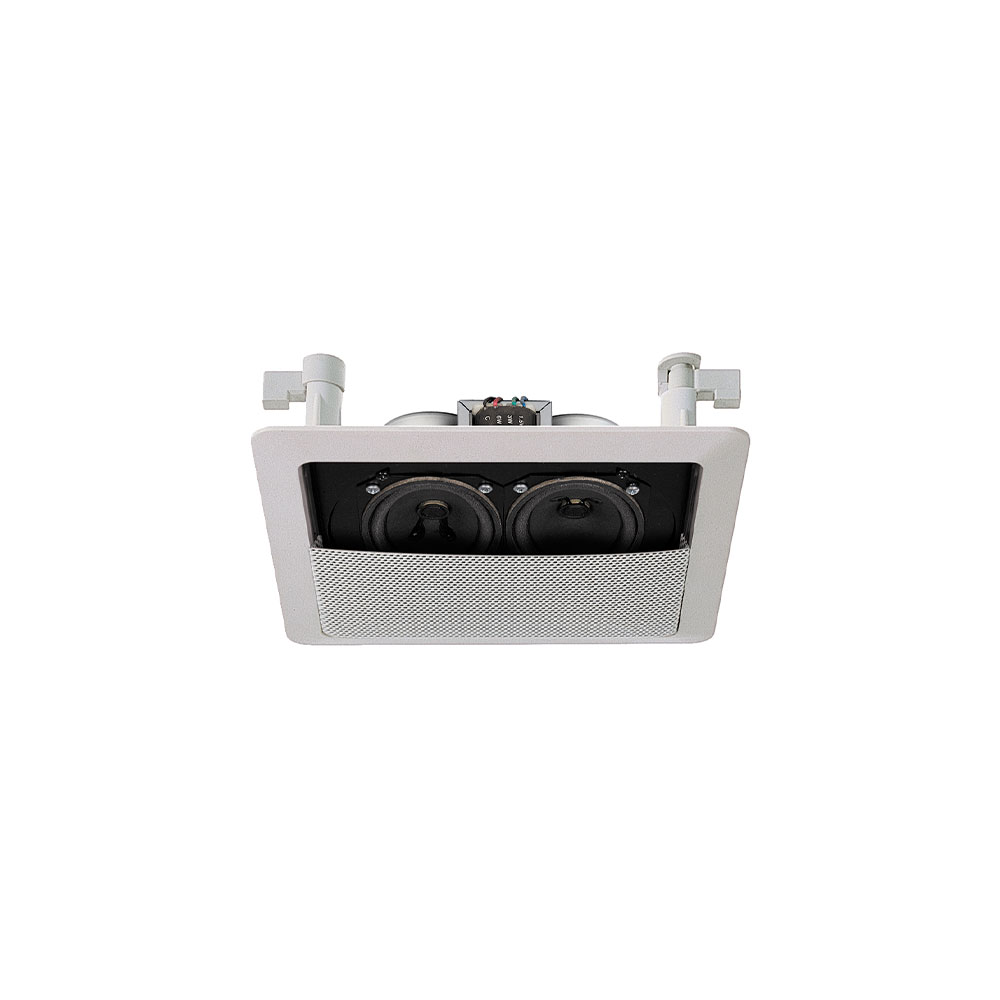

RCS Audio-Systems SC-512 AB
This image may differ from the desired article.
80,75 EUR
( 96,09 EUR incl. VAT )
≈ £67.51  |  ≈ $89.23
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems SC-512 AB A/B in-ceiling speaker, square, 2x 15/6 W, 100 V, white
Datasheet:file_download Download
Lieske Part No.:909441
Mfg Part No: SC-512 AB
UPC/EAN: 4250458204871
Weight:2.1 kg
Type:SC-512AB
Graduated prices net
From piecesPrice per pieces
675,30 EUR
1269,85 EUR
2464,40 EUR
3658,95 EUR

Product information for RCS Audio-Systems SC-512 AB:

The SC-512 AB from RCS Audio-Systems is a professional ceiling-mounted speaker with integrated A/B split, specifically designed for safety-critical voice alarm systems. It meets the requirements of DIN EN 60849 / VDE 0828, which mandate separate signal transmission for alarm purposes. The device combines two separate wideband speakers and two 100-V transformers in a compact, space-saving housing, thus achieving the necessary redundancy for critical applications in a single installation unit.

Applications

The speaker is intended for use in buildings with alarm systems, particularly in areas where reliable and redundant voice messaging is required, such as office buildings, hospitals, schools, or public facilities. The A/B split ensures that if one channel fails, the other continues to provide the alarm. The robust construction and options for damp room and fire protection versions extend the application range to technically demanding environments.

Functions and Equipment in Detail

The device features two 10,2 cm ( 4 inch ) x 6,3 cm ( 2,5 inch ) oval wideband chassis with tweeter cones, providing clear and balanced sound in the frequency range of 90 to 16,000 Hz. The impedance is 8 Ohm, enabling standard connection in professional systems. The rated power handling is 2 x 6 W (program power), with a maximum power of 2 x 15 W. The adjustments at 100 V include values of 6 W, 3 W, and 1.5 W per channel, allowing flexible integration into existing 100-V networks.

Technology Explained Simply

The integrated A/B split means that two independent signal paths are available, each with its own speaker and transformer. This is crucial for the reliability of alarm systems, as a failure in one channel does not affect the other. The sound pressure level is 95 dB at 1 W/1 m and reaches a maximum of 111.2 dB at 182 Hz, ensuring sufficient loudness for alarm functions in indoor spaces. The radiation angle is 180° at -6 dB (1 kHz), enabling uniform sound distribution over a wide area.

Compatibility and Accessories

The SC-512 AB is designed for use in 100-V networks and can be connected with standard cabling. An optional damp room version (FI-100) is available, where the chassis and transformers are specially impregnated to resist moisture. For applications with increased fire protection requirements, the BS-5839 option can be selected, which includes ceramic terminals, a thermal fuse, and fire-resistant cable. Special painting according to RAL is available upon request.

Installation and Mounting

Mounting is done via a quick-tension locking system, which adapts to various ceiling thicknesses and is also suitable for plasterboard ceilings. The ceiling cutout must be square with a side length of 185 mm ±5 mm. The external dimensions of the speaker are 220 mm, and the installation depth is 70 mm. The construction from coated steel (perforated sheet) and high-quality plastic frame ensures a theft-secure and robust design. The edge height is approximately 2 mm, providing a discreet appearance.

Advantages in Operation

The SC-512 AB combines functionality and design: it meets the technical requirements for safety-critical alarm systems, while offering a discreet appearance and easy installation. The integrated A/B split reduces the number of required installation units and simplifies cabling. The robust construction and options for special environments increase operational safety and the service life of the device. The color is white, enabling unobtrusive integration into most indoor spaces.

Technical data
Impedance8 Ohm
ShapeAngular
Sound pressure level (SPL) Pmax/1 m111,2 dB @182Hz
Ceiling cutout, square185 x 185 mm ±5 mm
Adjustments at 100 V2 x 6/3/1,5 W
Speaker2 St. 4" x 2,5"
Frequency range (±10dB)90 – 16.000 Hz
ColourWhite
Beam angle (-6dB, 1 kHz)180°
Rated load capacity (program)2 x 6 (15) W
Sound pressure level (SPL) 1 W/1 m95 dB
Built-in depth70 mm
Dimensions Ø220 mm


Product data sheet
Datasheet for RCS Audio-Systems SC-512 AB, EAN: 4250458204871

Questions & answers

What is the delivery time of RCS Audio-Systems SC-512 AB A/B in-ceiling speaker, square, 2x 15/6 W, 100 V, white?

The article RCS Audio-Systems SC-512 AB A/B in-ceiling speaker, square, 2x 15/6 W, 100 V, white is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems SC-512 AB to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems SC-512 AB A/B in-ceiling speaker, square, 2x 15/6 W, 100 V, white always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems SC-512 AB A/B in-ceiling speaker, square, 2x 15/6 W, 100 V, white if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of RCS Audio-Systems SC-512 AB A/B in-ceiling speaker, square, 2x 15/6 W, 100 V, white we can offer you a price of 75,30 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
