RCS Audio-Systems RSL-002 48,3 cm ( 19 inch ) drawer, 2 U content_copy

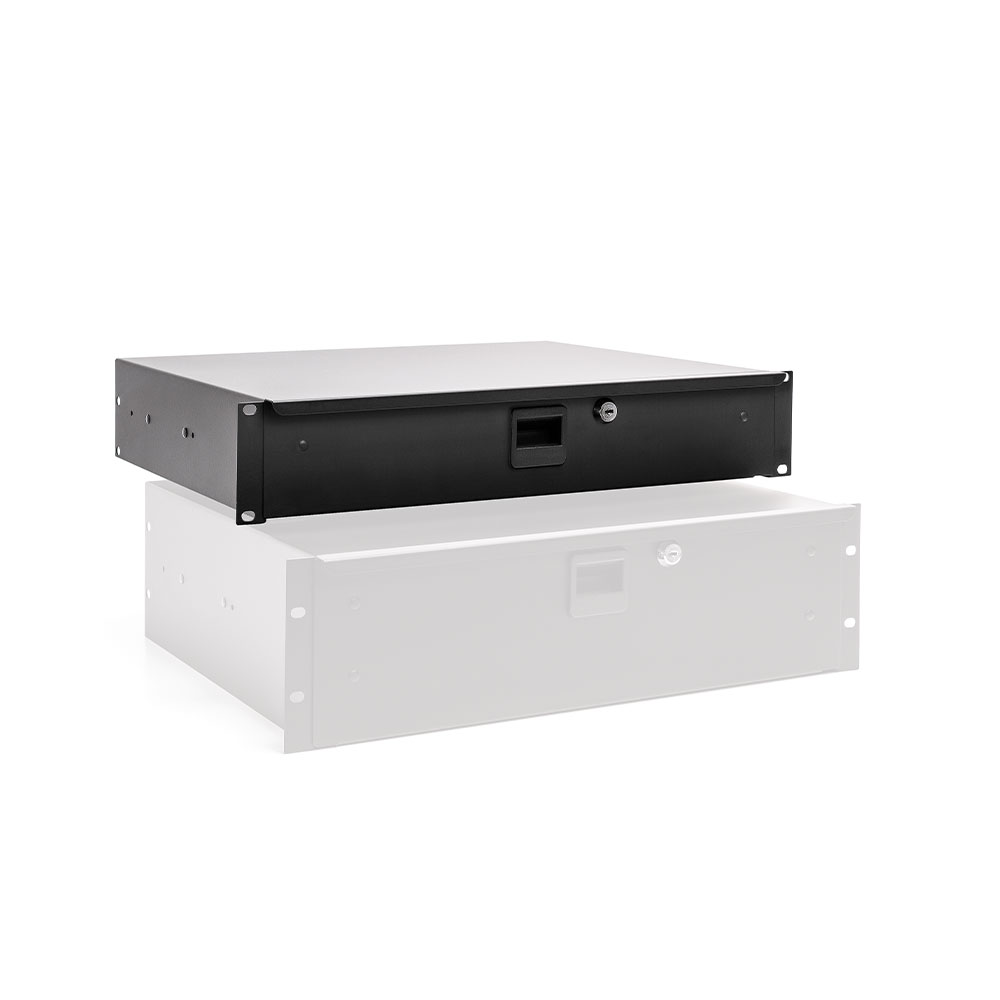

The RCS Audio-Systems drawer RSL-002 is a 48,3 cm ( 19 inch ) rack module in 2 U format, specifically designed for secure and convenient installation of devices and accessories in professional applications. The module is mounted in standard 48,3 cm ( 19 inch ) rack systems and provides a stable, fully extendable drawer suitable for use in technical installations, such as in recording studios, event technology, or security systems. The drawer is black and features an integrated handle recess as well as a cylinder lock with two keys to control access to the components stored inside.

Applications

The drawer is suitable for use in professional sound reinforcement and signal processing systems, where devices or accessories need to be securely and accessibly stored in the rack. It is particularly useful when small devices, cables, adapters, or other tools need to be organized and protected from unauthorized access. The 2 U height provides sufficient space for compact units without overloading the rack structure.

Functions and Features in Detail

The drawer is mounted on rails and can be fully extended, facilitating access to the components stored inside. The handle recess is recessed and includes a latching function that securely holds the drawer in the open position. The integrated cylinder lock with two keys enables simple access control, enhancing the security of devices stored in the rack. The drawer is made of 1.2 mm thick steel, ensuring high mechanical stability and long service life.

Technology Explained Simply

The 48,3 cm ( 19 inch ) form factor corresponds to the international standard for rack systems in IT and audio technology. The designation 2 U (Height Units) means the drawer has a height of two units, equivalent to approximately 8.8 cm. The insertion depth is 360 mm, which is sufficient to accommodate most compact devices without obstructing the rack. The fully extendable design allows convenient operation and maintenance of the installed components without requiring the entire rack to be opened or unlocked.

Compatibility and Accessories

The drawer is designed for installation in standard 48,3 cm ( 19 inch ) rack systems and therefore fits most professional rack installations. It is not specifically intended for particular devices or brands, but serves as a universal mounting unit.

Installation and Mounting

Installation is carried out in a 48,3 cm ( 19 inch ) rack using the integrated mounting holes. The drawer is inserted into the rack and secured using screws or clamp retainers. The insertion depth of 360 mm must be considered during rack installation planning to ensure the drawer can be fully extended without hitting the rear wall of the rack.

Operational Advantages

The drawer provides clear organization of rack contents, simplifying maintenance and operation of installed devices. The lockable design protects against unauthorized access, which is beneficial in security-critical applications. The robust steel construction ensures long service life, even under professional operating conditions. The integrated handle recess with latching function allows safe and convenient extension without requiring additional tools.

Technical data
Colour	Black
19" rack mounting

---
