RCS Audio-Systems RSD-601 Sound-Dome ceiling-mounted speaker 90/60 W white 2-way system

Your rating:
Average rating
product review for RCS Audio-Systems RSD-601 Sound-Dome ceiling-mounted speaker 90/60 W white 2-way system
( 4.5 / 5 ) 133 ratings
RCS Audio-Systems RSD-601
This image may differ from the desired article.
RCS Audio-Systems RSD-601RCS Audio-Systems RSD-601RCS Audio-Systems RSD-601RCS Audio-Systems RSD-601
212,80 EUR
( 253,23 EUR incl. VAT )
≈ £177.90  |  ≈ $235.14
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems RSD-601 Sound-Dome ceiling-mounted speaker 90/60 W white 2-way system
Datasheet:file_download Download
Lieske Part No.:831738
Mfg Part No: RSD-601
UPC/EAN: 4250458270951
Weight:3.3 kg
Graduated prices net
From piecesPrice per pieces
5198,44 EUR
10184,07 EUR
15169,71 EUR
20155,34 EUR

Product information for RCS Audio-Systems RSD-601:

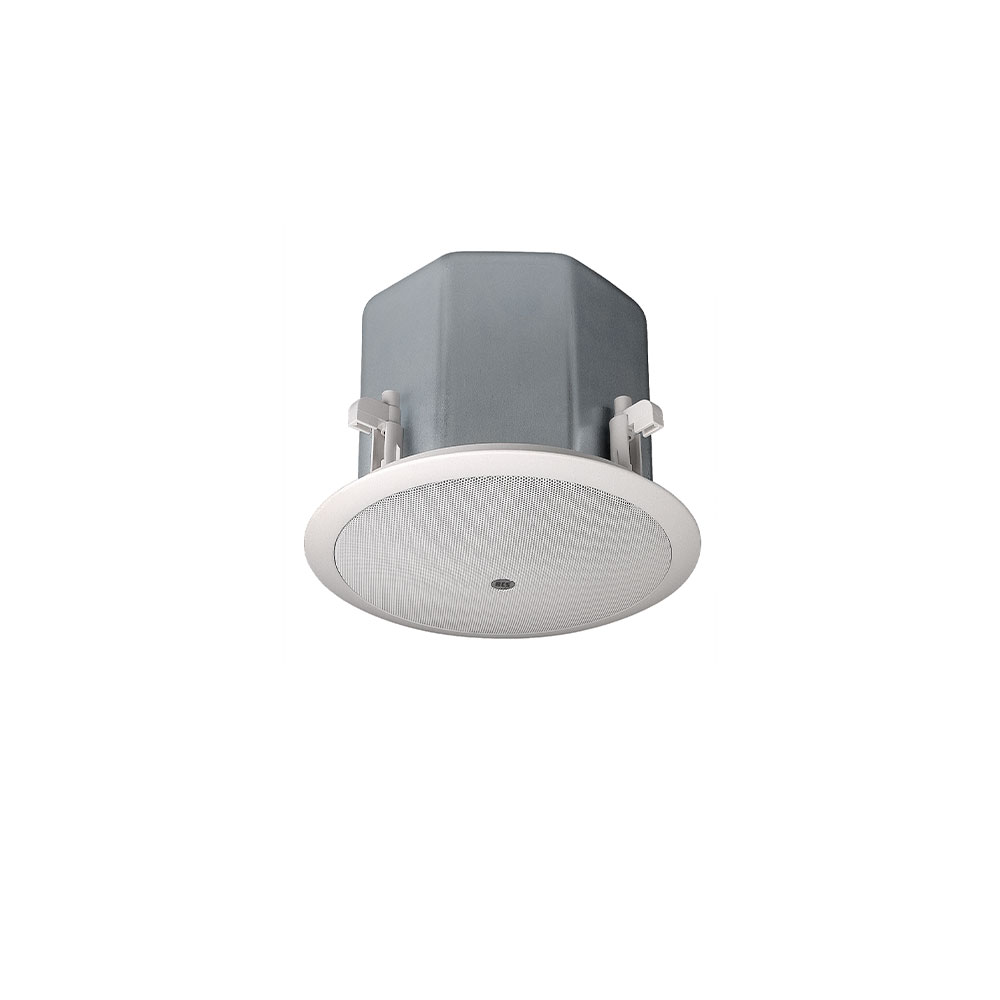

The RCS Audio-Systems Sound-Dome ceiling-mounted speaker RSD-601 is a 2-way system with a rated power handling of 60 W (program power) and a maximum power of 90 W. It is specifically designed for use in larger rooms such as restaurants, conference halls, or sports halls, where clear and even sound coverage is required. The device features an integrated 100 V transformer, enabling flexible adaptation to existing distribution networks. The impedance is 16 Ohm, with a front-mounted impedance selector switch allowing quick adjustment to specific requirements. The switch can also be set to 16 Ohm under the speaker grille, which is advantageous during maintenance or replacement.

Applications

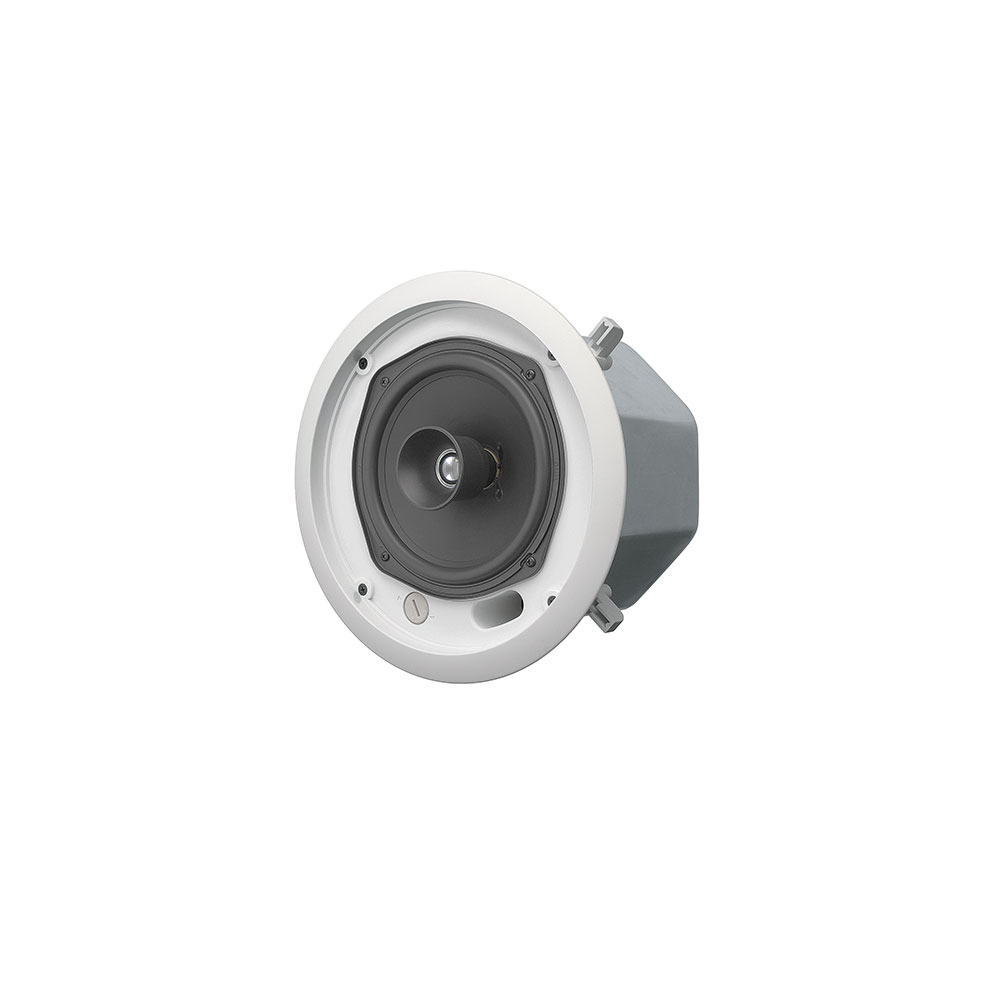

This speaker is particularly suitable for rooms with high acoustic demands, such as open-plan offices, event halls, gymnasiums, or catering establishments. The combination of a coaxial chassis, aluminium frame, and integrated bass reflex tube ensures clear, detailed sound with good sound pressure. The dispersion angles are 180° at 1 kHz, 80° at 4 kHz, and 65° at 8 kHz, providing broad yet targeted sound radiation. The frequency response ranges from 60 Hz to 20,000 Hz (±10 dB), enabling balanced reproduction from bass to treble.

Functions and Equipment in Detail
The speaker features screw-type connection terminals with one input and one output each, allowing quick and secure connection to other speakers in the network. Installation is done via a quick-tension fastening mechanism, ensuring simple and secure mounting in the ceiling. The external dimensions are Ø 250 mm, with an installation depth of 190 mm. The required cutout in the ceiling should have a diameter of 225 mm ± 5 mm. The speaker is white in colour, with optional lacquering available in all RAL colours. An optional humid environment version with specially treated chassis and transformer is available as option FI-100.

Technology Explained Simply
The integrated 100 V transformer enables use in 100 V distribution networks, commonly used in professional sound systems. The available power settings at 100 V are 60 W, 30 W, and 15 W, allowing flexible adaptation to the overall system power. The sound pressure level at 1 W/1 m is 97.5 dB, indicating high efficiency. At maximum power (Pmax), the speaker reaches a sound pressure level of 116 dB at 8 kHz, ensuring clear and powerful reproduction even at higher volumes. The 16 Ohm impedance is a standard value for passive speakers in professional applications.

Compatibility and Accessories
The speaker is designed for use in existing 100 V distribution networks and can be combined with other speakers from the same manufacturer or compatible systems. The adjustable power settings (60/30/15 W) allow flexible integration into various system configurations. The FI-100 option for humid environment version extends the application range to areas with increased humidity, such as kitchens or bathrooms.

Installation and Mounting

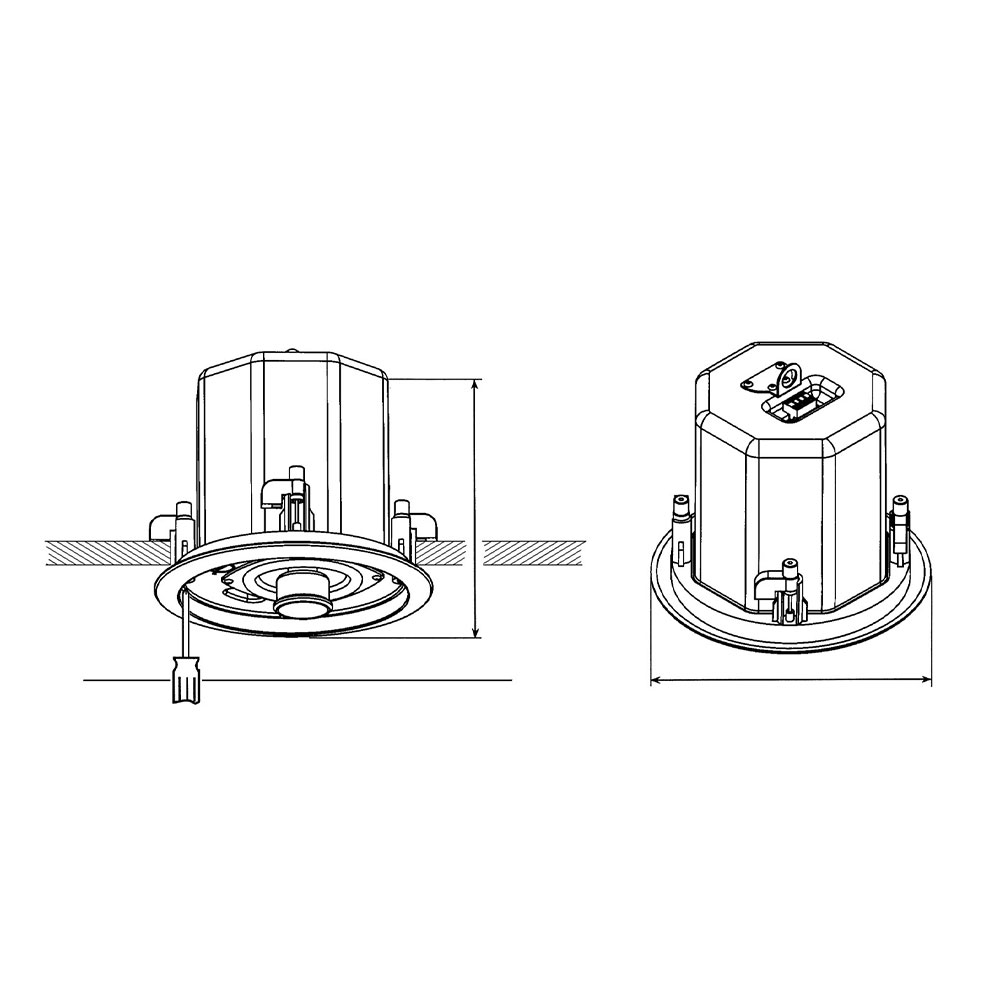

Mounting is done using a quick-tension fastening mechanism, ensuring secure installation in the ceiling. The ceiling cutout must have a diameter of 225 mm ± 5 mm, and the installation depth must be at least 190 mm. Installation requires no additional tools, as the fastening mechanism operates mechanically. The screw-type connection terminals enable a secure electrical connection.

Operational Advantages
The speaker offers high sound pressure efficiency and broad radiation characteristics, enabling even sound coverage in large rooms. The simple mounting and flexible power adjustment options increase operational flexibility. The robust construction with an aluminium frame and integrated bass reflex tube ensures long service life and reliable performance even under heavy loads. The option for RAL colours and the humid environment version extend application possibilities in various environments.

Technical data
Sound pressure level (SPL) 1 W/1 m97,5 dB
Rated load capacity (program)60 W (90 W)
Sound pressure level (SPL) Pmax/1 m116 dB @8kHz
Radiation angle (-6dB, 1/4/8 kHz)180°/ 80°/ 65°
Impedance16 Ohm
Built-in depth190 mm
ShapeRound
Speaker diameter160 mm
ColourWhite
Dimensions Ø250 mm
Frequency range (±10dB)60 - 20.000 Hz
Adjustments at 100 V60/30/15 W
