RCS Audio-Systems RSD-301 Sound-Dome ceiling-mounted speaker 90/30 W white 2-way system

Your rating:
Average rating
product review for RCS Audio-Systems RSD-301 Sound-Dome ceiling-mounted speaker 90/30 W white 2-way system
( 4.5 / 5 ) 70 ratings
RCS Audio-Systems RSD-301
This image may differ from the desired article.
RCS Audio-Systems RSD-301RCS Audio-Systems RSD-301RCS Audio-Systems RSD-301RCS Audio-Systems RSD-301
150,10 EUR
( 178,62 EUR incl. VAT )
≈ £125.48  |  ≈ $165.86
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems RSD-301 Sound-Dome ceiling-mounted speaker 90/30 W white 2-way system
Datasheet:file_download Download
Lieske Part No.:998564
Mfg Part No: RSD-301
UPC/EAN: 4250458270791
Weight:2.2 kg
Graduated prices net
From piecesPrice per pieces
5139,97 EUR
10129,84 EUR
15119,70 EUR
20109,57 EUR

Product information for RCS Audio-Systems RSD-301:

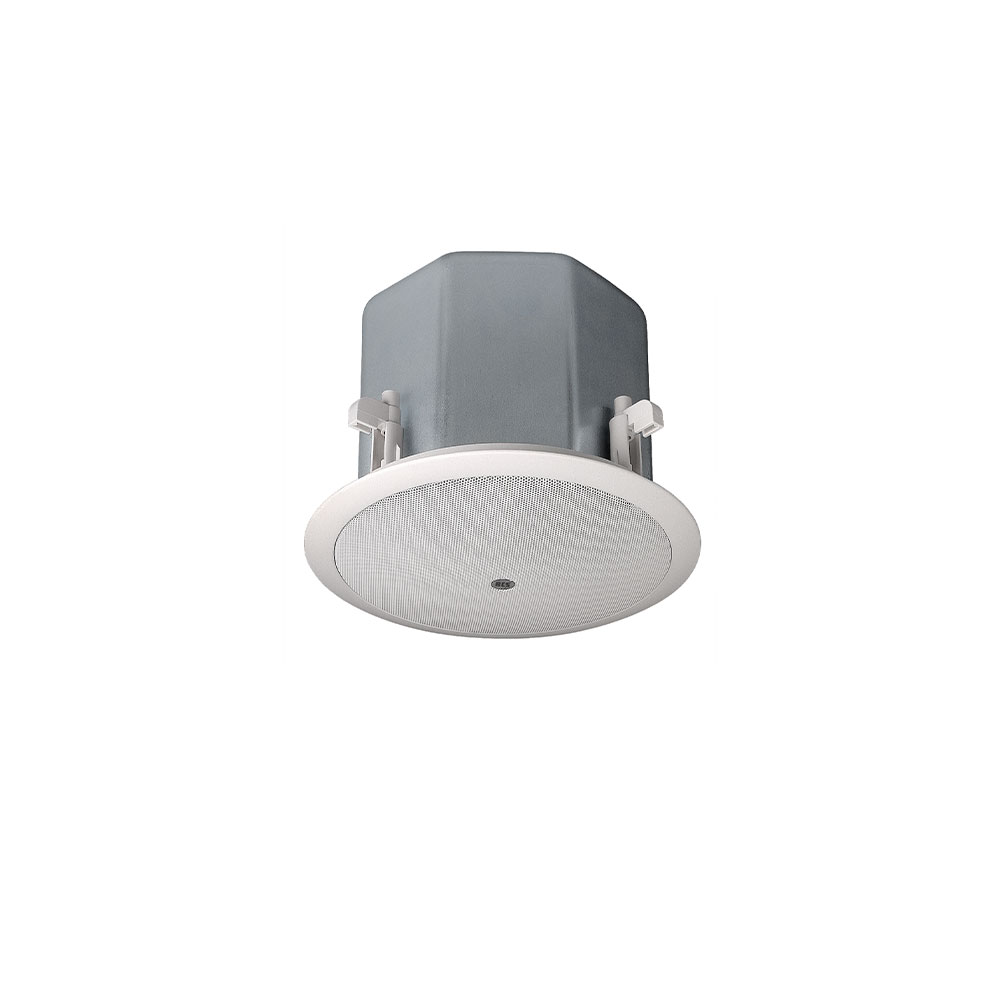

The RSD-301 from RCS Audio-Systems is a ceiling-mounted speaker with a 2-way system, designed for use in larger rooms such as restaurants, conference halls or sports halls. The device features an integrated 100-V transformer and is designed for a rated power handling of 30 W (program power), with a maximum music power of up to 45 W. The impedance is 16 Ohm, enabling compatible connection to standard 100-V amplifiers. The speaker is available in white and features a round shape with an outer Ø of 213 mm and an installation depth of 150 mm. Installation is carried out via a quick-tension fastening, ensuring easy mounting in ceiling constructions.

Applications

The RSD-301 is particularly suitable for applications requiring uniform, spatially balanced sound coverage. Due to its high sound pressure levels and wide frequency range, it is suitable for musical requirements, for example in event spaces, gastronomy establishments or public facilities. The integrated bass reflex technology ensures improved bass reproduction, supporting use in larger rooms with high acoustic demands.

Functions and equipment in detail

A central feature is the front-mounted impedance selector switch, which allows quick adjustment of the speaker impedance to meet specific requirements. This switch can also be set to 16 Ohm under the speaker grille, ensuring flexible use during maintenance or as needed. The adjustments at 100 V are 30/15/7.5 W, enabling flexible power control within a 100-V network. The screw terminal connections, each with an input and output, simplify wiring and allow quick cascading with additional speakers.

Technology explained simply

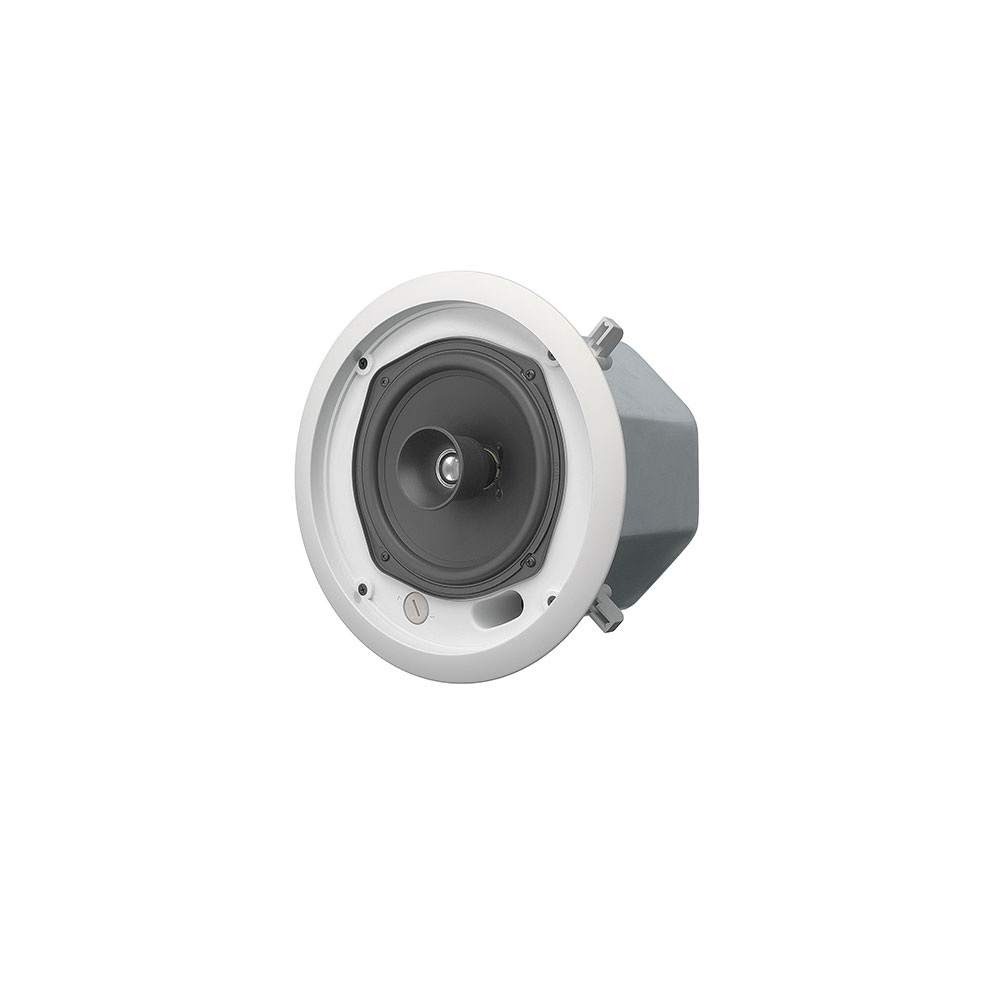

The speaker operates with a coaxial chassis, where the tweeter and mid-range driver are centrally positioned within the woofer area. This ensures precise sound reproduction and optimal phase alignment. The aluminium frame enhances mechanical stability and contributes to sound quality. The integrated bass reflex tube supports the reproduction of low frequencies, improving sound pressure in the lower frequency range. The frequency response is in the range of 130 Hz to 20,000 Hz (±10 dB), enabling clear and balanced sound reproduction across the entire audible range. The sound pressure at 1 W/1 m is 92.5 dB, while the maximum sound pressure (SPL Pmax/1 m) is 112 dB, measured at 20 kHz.

Compatibility and accessories

The RSD-301 is designed for use in 100-V networks and can be combined with other speakers from the same system. An optional humid environment version (option FI-100) is available, suitable for use in damp environments. On request, the speaker can be painted in any RAL colour, allowing individual design to match room aesthetics.

Installation and mounting

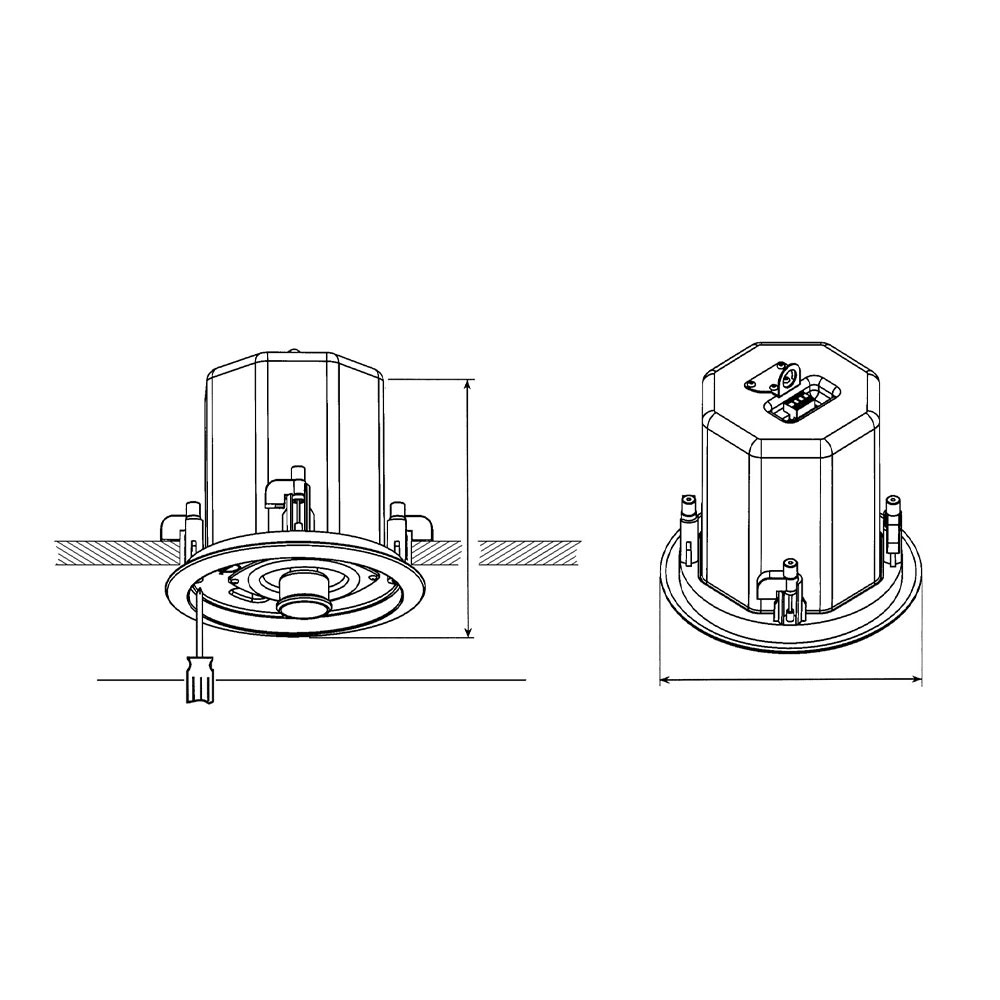

Mounting is done via a quick-tension fastening, enabling easy and secure attachment in the ceiling. The required cutout should have a diameter of 188 mm ± 5 mm. The installation depth must be at least 150 mm to ensure correct mounting. The speaker dimensions (Ø 213 mm, installation depth 150 mm) are designed to allow seamless integration into standard ceiling constructions.

Advantages in operation

The RSD-301 offers high sound pressure performance combined with good sound quality. The flexible power adjustment via the impedance selector switch enables optimal use in different rooms. The robust construction with aluminium frame and integrated bass reflex tube ensures long service life and reliable performance even under high loads. The screw terminal connections simplify installation and maintenance, while the white colour allows unobtrusive integration into ceiling design.

Technical data
Adjustments at 100 V30/15/7,5 W
Dimensions Ø213 mm
Built-in depth150 mm
Rated load capacity (program)30 W (45 W)
ShapeRound
Radiation angle (-6dB, 1/4/8 kHz)180°/ 100°/ 90°
Impedance16 Ohm
Sound pressure level (SPL) Pmax/1 m112 dB @20kHz
Speaker diameter105 mm
Sound pressure level (SPL) 1 W/1 m92,5 dB
ColourWhite
Frequency range (±10dB)130 - 20.000 Hz


Please note...
If you pay by prepayment or on account, we will ship this article for free within Germany ! Note that although the delivery charges will be shown to you in the shopping cart, we won't charge them.
Product data sheet
Datasheet for RCS Audio-Systems RSD-301, EAN: 4250458270791

Questions & answers

What is the delivery time of RCS Audio-Systems RSD-301 Sound-Dome ceiling-mounted speaker 90/30 W white 2-way system?

The article RCS Audio-Systems RSD-301 Sound-Dome ceiling-mounted speaker 90/30 W white 2-way system is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems RSD-301 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems RSD-301 Sound-Dome ceiling-mounted speaker 90/30 W white 2-way system always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems RSD-301 Sound-Dome ceiling-mounted speaker 90/30 W white 2-way system if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of RCS Audio-Systems RSD-301 Sound-Dome ceiling-mounted speaker 90/30 W white 2-way system we can offer you a price of 139,97 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
