RCS Audio-Systems RFC-020 48,3 cm ( 19 inch )-rack Flight-Case, 20 U content_copy

The RFC-020 from RCS Audio-Systems is a professional 19˝ flight-case rack with a height of 20 units (U), specifically designed for use in event technology, on stages, and for secure transport via freight shipping or air freight. The housing is built according to the international 19˝ standard and provides a stable platform for audio, lighting, control, and network technology. It combines high mechanical load capacity with functional equipment that meets the requirements of mobile and stationary applications.

Applications
This rack is designed for professional use in event technology, where high mechanical loads, frequent transportation, and quick assembly are required. It is ideal for use at concerts, trade fairs, events, and in studios, where technology must be quickly and securely installed, transported, and disassembled. The robust construction ensures protection against shocks, vibrations, and environmental influences during transport.

Functions and Equipment in Detail
The body is made of 7 mm thick, multi-layered birch plywood in double-door configuration, enabling access to the equipment from both sides. This access is ensured by removable lids on the front and rear, equipped with recessed butterfly latches and spring-loaded flip handles in shells. This equipment ensures a secure closure and comfortable transport, as the handles do not protrude when the lids are closed.

Technology Explained Simply
The 19˝ mounting rails on the front and rear allow the installation of standard 19˝ devices. The rails are continuously adjustable, so inserts can be mounted at any position, enabling flexible arrangement of the devices. The rack comes with a complete mounting kit, including M5 screws, nuts, washers, and rosettes, to ensure immediate commissioning.

Compatibility and Accessories

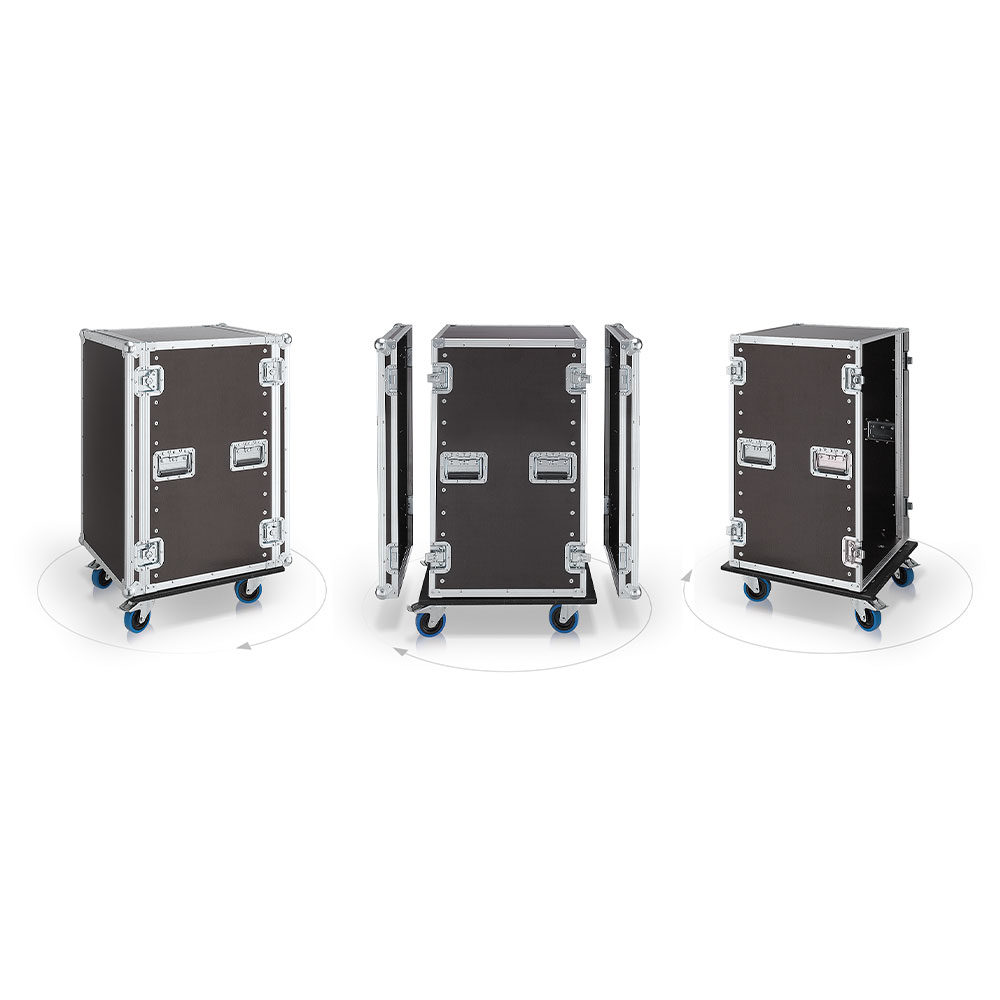

The RFC-020 is compatible with all standard 19˝ devices. As an accessory, a roll base (RUS-100) is offered, made of stable plywood and equipped with four 100 mm Blue-Wheels swivel castors. This enables mobile use of the rack. Additionally, an insert rail set (ESS-520) is available, consisting of a pair of aluminum angles, recommended for heavy devices to improve load distribution.

Mounting and Installation
Mounting is done via the provided 19˝ rails on the front and rear. The continuous adjustment of insert positions allows individual adaptation to device height. The included mounting materials (M5 screws, nuts, washers, rosettes) are sufficient for securing all common 19˝ devices. Installation requires no tools or additional components.

Operational Advantages
The rack offers high stability thanks to the surrounding aluminum edge protection (25/25 mm) and eight high-gloss zinc-plated steel corners (ball corners), which provide additional protection at the corners. The rubber feet at the bottom ensure a secure stand on various surfaces. The total weight is approximately 21 kg, which is typical for a robust flight case in the 20 U format. The insert depth is 520 mm, sufficient for most standard 19˝ devices. The overall dimensions are 550 mm (width) × 945 mm (height) × 675 mm (depth), with an insert height of 905 mm. The construction ensures secure transport and quick assembly without additional tools.

Scope of Delivery
The product is delivered with 1x RFC-020 flight-case rack (20 U), 2x removable lids (front and rear), and 1x mounting kit (M5 screws, nuts, washers, rosettes).

Technical data
Height units	20 HE
Overall width (external)	550 mm
Total height (external)	945 mm
Mounting depth (inside)	520 mm
Overall depth (external)	675 mm
Mounting height (internal)	905 mm
19" rack mounting

---
