RCS Audio-Systems RFC-015 48,3 cm ( 19 inch )-rack Flight-Case, 15 U content_copy

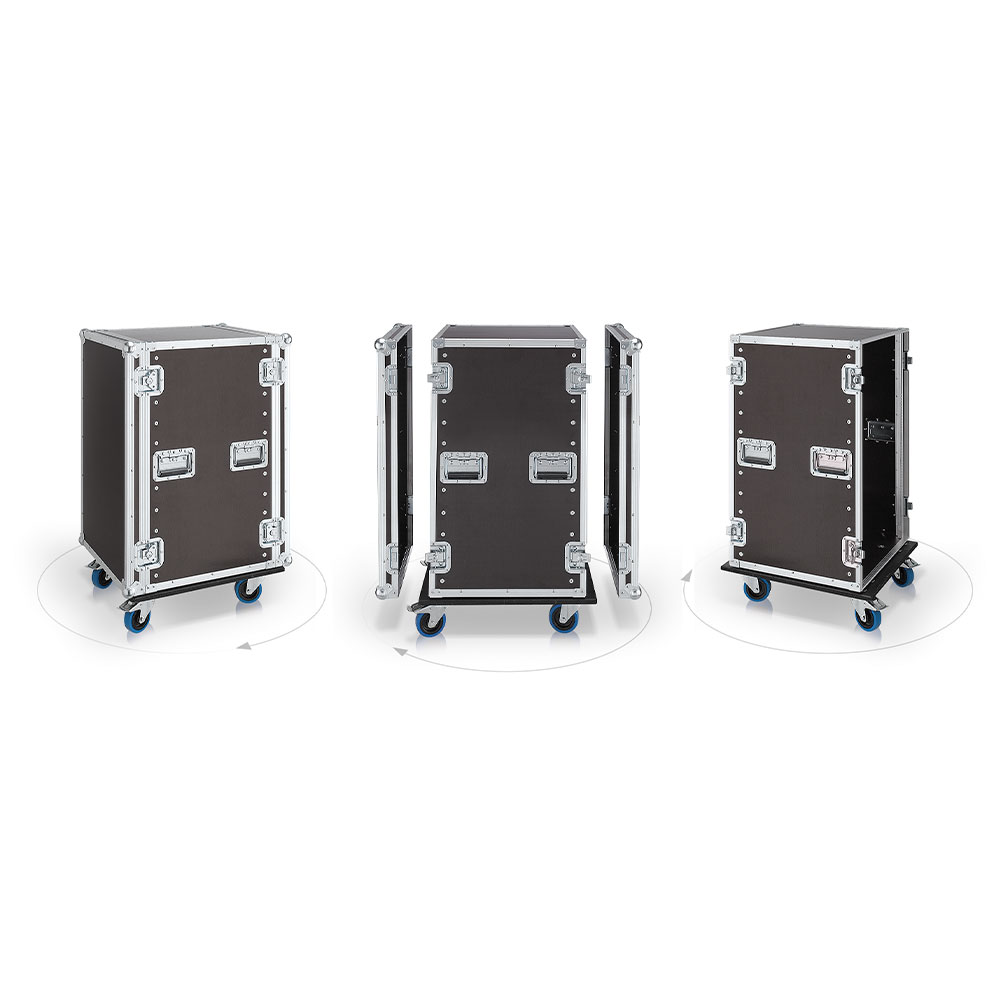

The RCS Audio-Systems RFC-015 is a 48,3 cm ( 19 inch ) rack in flight case design with a height of 15 rack units (U). It is designed for professional use in event technology, particularly for use on stages, at events, and for transport via freight shipping or air freight. The housing conforms to the international 48,3 cm ( 19 inch ) standard and is designed for mounting standard 48,3 cm ( 19 inch ) devices on the front and rear sides.

Applications
This rack is suitable for use in mobile and stationary installations within the field of event technology. It offers sufficient space for 15 U of mounting height, equivalent to an installation height of 680 mm. The overall height is 730 mm, the overall width is 550 mm, and the overall depth is 675 mm. The installation depth is 520 mm, which is sufficient for most standard devices. The construction is robust enough to meet the requirements of frequent transport and rough handling.

Functions and Equipment in Detail
The chassis is made of very stable Double Door 7 mm multi-layer birch plywood, ensuring high mechanical load capacity. The edges are protected by all-around aluminium frame profile angles (25/25 mm) to prevent mechanical damage. At all eight outer corners, high-gloss zinc-plated steel ball corners are fitted, providing additional protection. The underside is equipped with four stable rubber feet, ensuring secure stability. The delivery includes recessed folding handles in the shell and spring-loaded butterfly latches, enabling safe and convenient handling.

Technology Explained Simply
The 48,3 cm ( 19 inch ) mounting rails on the front and rear sides allow for stepless mounting of devices. This includes sufficient mounting screws, nuts (M5), washers, and rosettes intended for mounting the inserts. Mounting is done via the integrated rails, ensuring secure and precise fixation of the devices. The installation depth of 520 mm provides sufficient space for most standard devices. The overall depth of 675 mm accounts for the thickness of the front panels and mounting elements.

Compatibility and Accessories
The rack is compatible with all standard 48,3 cm ( 19 inch ) devices requiring a mounting height of up to 15 U. It can be combined with the roll base RUS-100, which is made of stable cross-laminated multiplex wood (15 mm) and equipped with four 100 mm Blue-Wheels swivel castors. These castors are fitted with two brakes to allow secure positioning. Additionally, the insert rail set ESS-520 is available, consisting of a pair of aluminium angles, recommended for heavy insert devices to distribute the load on the rails.

Mounting and Installation
Device mounting is done via the integrated 48,3 cm ( 19 inch ) mounting rails on the front and rear sides. The included mounting components (screws, M5 nuts, washers, rosettes) enable secure and precise mounting. The stepless mounting allows flexible adaptation to individual devices. The removable lids on the front and rear sides facilitate access to the devices and maintenance.

Operational Advantages
The flight case design provides a high level of protection for the mounted devices. The combination of stable multiplex wood, aluminium edge protection, and steel ball corners ensures high mechanical stability. The rubber feet prevent slipping and protect the floor. The butterfly latches and folding handles enable safe and convenient handling. The rack is designed for use in demanding environments where high loads and frequent transportation are involved.

Technical data
Overall depth (external)	675 mm
Mounting depth (inside)	520 mm
Height units	15 HE
Mounting height (internal)	680 mm
Overall width (external)	550 mm
Total height (external)	730 mm
19" rack mounting

---
