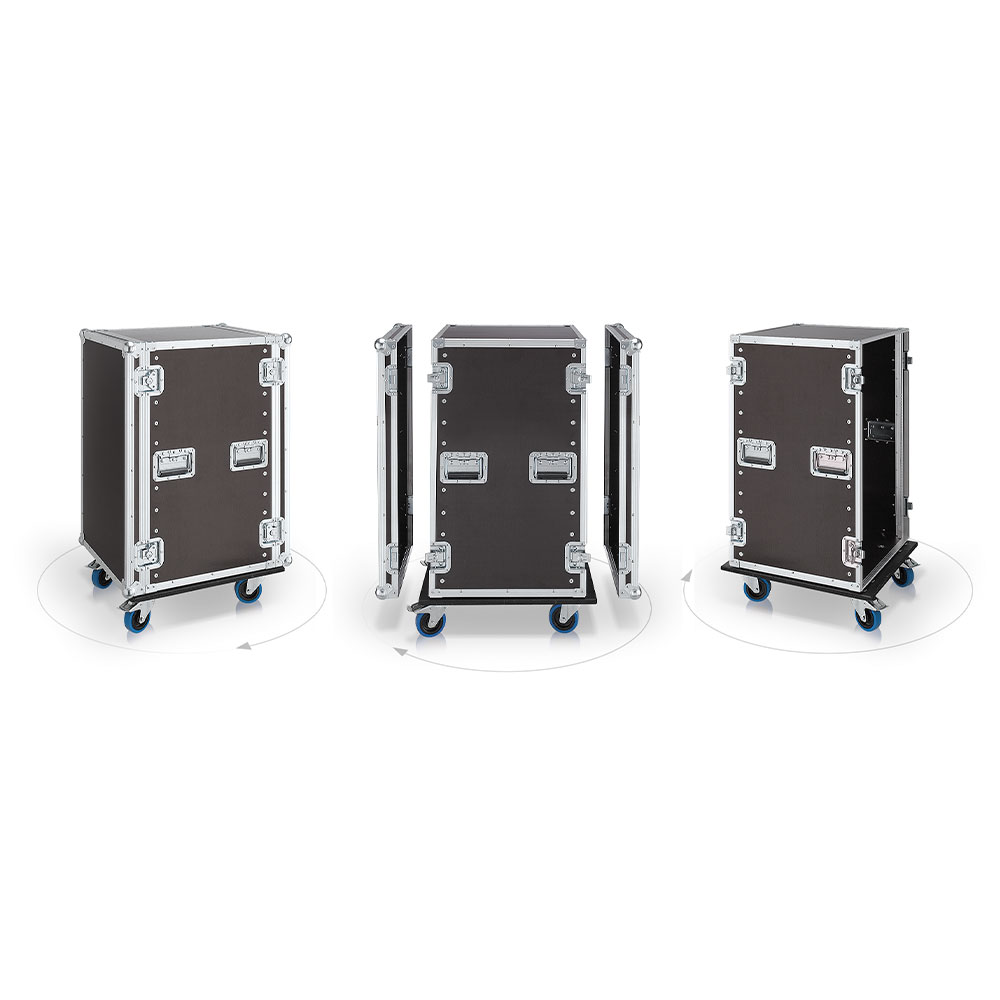

RCS Audio-Systems RFC-010 48,3 cm ( 19 inch )-rack Flight-Case, 10 U content_copy

The RFC-010 is a professional 48,3 cm ( 19 inch )-flight case from the brand RCS Audio-Systems, designed for use in event technology, studios, or for transporting sensitive electronics. It features 10 rack units (U) and is constructed according to the international 48,3 cm ( 19 inch ) standard, ensuring universal compatibility with standard 48,3 cm ( 19 inch ) devices. The housing provides a stable and protective structure for rack-mounted equipment, with an internal mounting height of 450 mm, corresponding to 10 U. The external overall height is 510 mm, the external overall width is 550 mm, and the external overall depth is 675 mm. The internal mounting depth to the mounting rail is 520 mm, providing sufficient space for deeper devices.

Applications
This flight case is designed for professional use, particularly for mobile applications such as tours, stage installations, studio setups, or shipping via freight and air cargo. Its robust construction protects sensitive equipment from mechanical stress, shocks, and vibrations. The double door design allows access to mounted devices from both sides, making maintenance and installation more efficient.

Functions and Equipment in Detail
The body is made of 7 mm thick, multi-layered birch plywood, ensuring high stability and durability. The entire housing is reinforced with an aluminum edge protection profile (25/25 mm), protecting the edges from damage. At all 8 external corners, shiny zinc-plated steel sheet ball corners are installed, providing additional protection against impacts and transport stress. The removable lids on the front and rear allow easy access to the devices, while recessed folding handles and spring-loaded butterfly latches ensure secure and comfortable transport.

Technology Explained Simply
The 48,3 cm ( 19 inch ) mounting rails are installed on both the front and rear sides of the case, enabling stepless mounting of devices. The rails are designed for secure fastening and support mounting of devices with varying weights. The rubber feet on the bottom ensure a non-slip stand, especially on smooth surfaces.

Compatibility and Accessories
The RFC-010 is designed for mounting standard 48,3 cm ( 19 inch ) devices and complies with international standards. It is compatible with accessories such as the Roll-underset RUS-100, made of stable plywood and equipped with 100 mm Blue-Wheels, as well as the Insert rail set ESS-520, consisting of a pair of aluminum angles, recommended for heavy devices.

Mounting and Installation
Mounting is done via the front- and rear-mounted 48,3 cm ( 19 inch ) rails, allowing stepless positioning of devices. The included fastening materials — screws, nuts, washers, and rosettes — are sufficient for mounting all devices to be installed in the rack. The screws are designed for M5 holes, which corresponds to the standard in rack technology.

Advantages in Operation
The RFC-010 offers high flexibility in use due to its robust construction and double-sided covers. The combination of stable plywood, aluminum edge protection, and steel sheet ball corners ensures a high level of protection. Integrated handles and latches facilitate transport, while the non-slip rubber feet ensure secure positioning. The design is optimized for professional use, with adherence to the 48,3 cm ( 19 inch ) standard ensuring universal usability. The weight is approximately 14 kg, which is typical for a solid flight case in the 10 U range.

Technical data
Height units	10 HE
Overall width (external)	550 mm
Mounting height (internal)	450 mm
Total height (external)	510 mm
Overall depth (external)	675 mm
Mounting depth (inside)	520 mm
19" rack mounting

---
