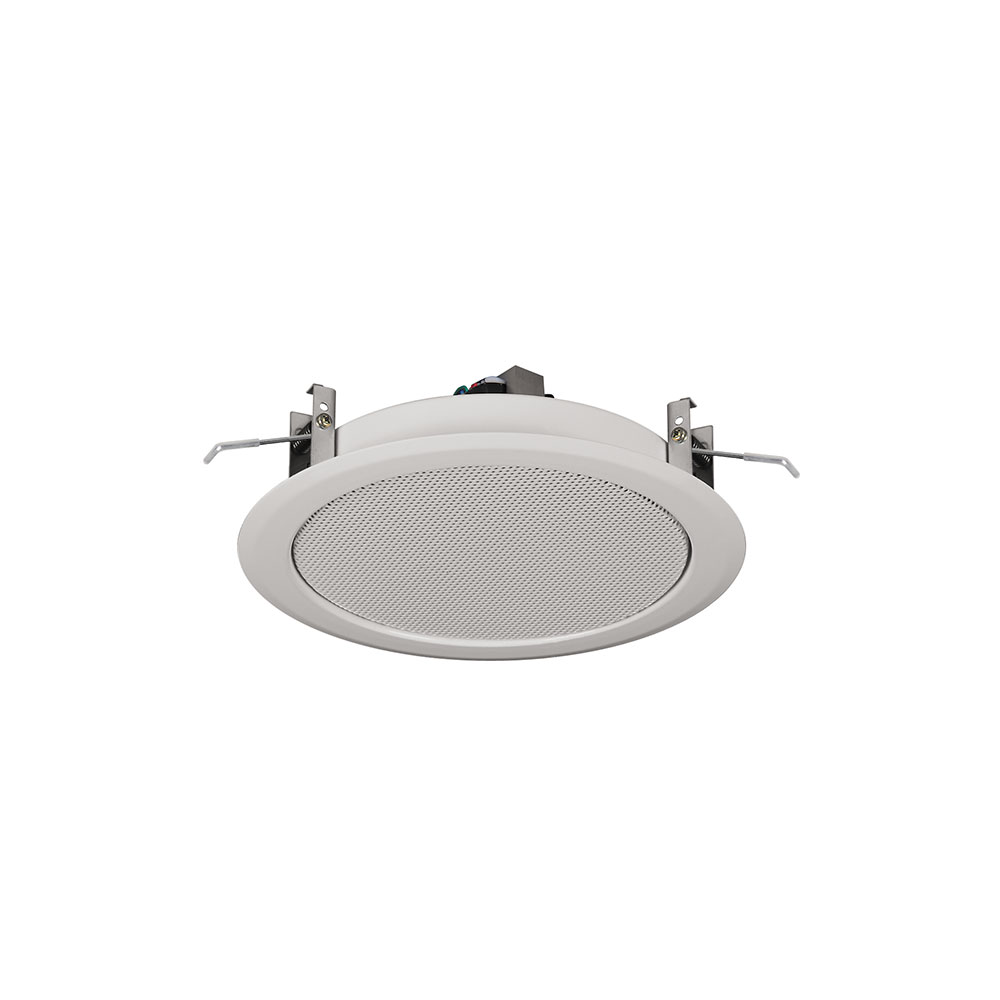

RCS Audio-Systems RC-306 Ceiling-mounted speaker, 15/6 W, 2-piece, metal version
|
36,10 EUR |
|||||||||||
|
( 42,96 EUR incl. VAT ) ≈ £30.14 | ≈ $40.47 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Datasheet: | file_download Download | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lieske Part No.: | 902331 | ||||||||||
| Mfg Part No: | RC-306 | ||||||||||
| UPC/EAN: | 4250458270241 | ||||||||||
| Weight: | 1.1 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems RC-306:
Applications
The speaker is suitable for use in offices, administrative buildings, schools, hospitals, or retail stores where uniform, unobtrusive sound coverage is required. Due to the 100-V technology, it can be operated in larger installations with multiple speakers via a central amplifier. The 180° dispersion angle ensures broad, even sound distribution, providing clear speech reproduction and music playback.
Functions and Equipment in Detail
The RC-306 features a high-quality, wide-range speaker chassis with a diameter of 165 mm (6.5˝), ensuring clear and balanced sound reproduction. The rated power handling is 6 W (program power), with a maximum power handling of 15 W. The sound pressure levels are 97.5 dB at 1 W/1 m and 107 dB at maximum power (Pmax/1 m), providing sufficient loudness for indoor spaces. The frequency response ranges from 97 Hz to 20,000 Hz (±10 dB), enabling good reproduction of speech and music.
Technology Explained Simply
The speaker is equipped with a 100-V transformer that allows adaptation to different power levels (6/3/1.5 W). This is necessary to adjust the volume according to room size and the number of speakers. The impedance is 8 Ohm, which is standard for connecting to amplifier systems. Installation is tool-free: three bent snap springs automatically adapt to ceiling thickness and ensure secure mounting. The speaker insert is installed using a bayonet system, making installation quick and easy.
Compatibility and Accessories

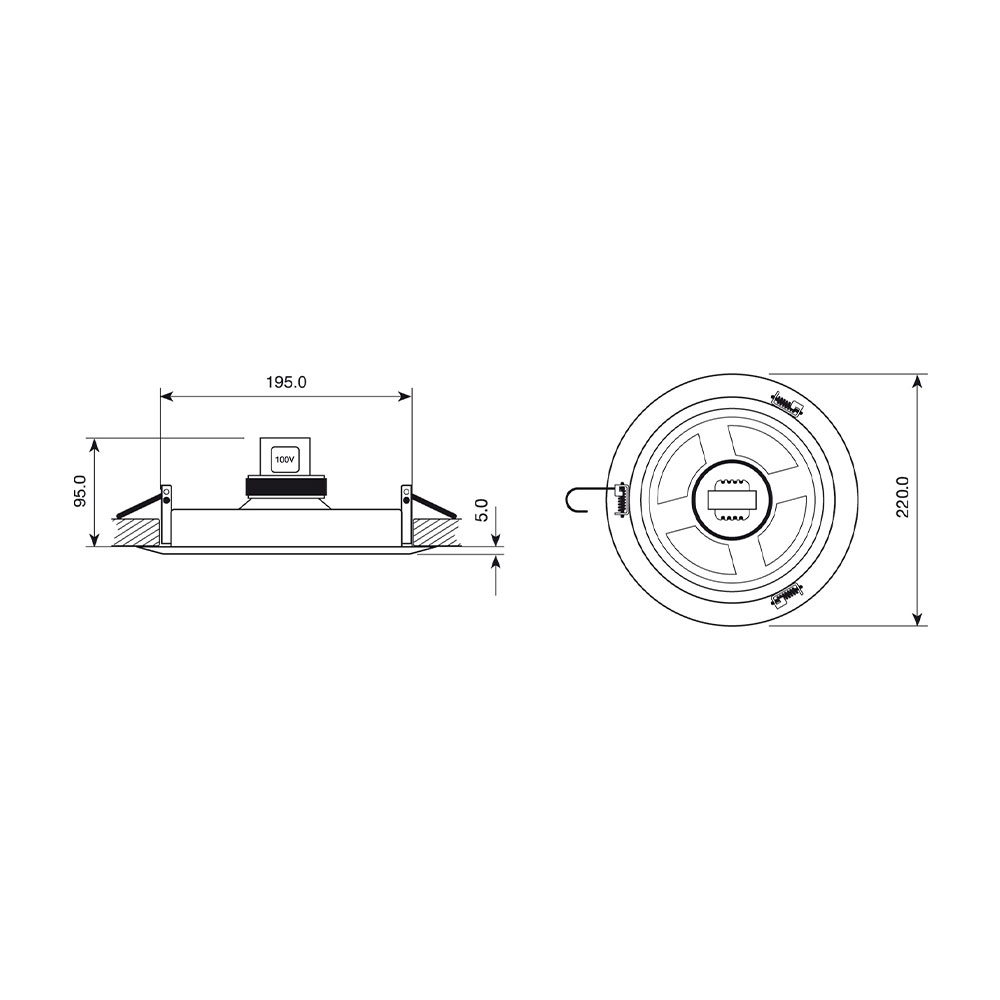

The speaker is designed for use in 100-V amplifier systems. It is also available in a damp room version (FI-100), making it suitable for bathrooms, kitchens, or other damp areas. Installation requires a cutout with a diameter of 195 mm ± 5 mm and a minimum installation depth of 95 mm. The mounting plate and speaker ring are made of powder-coated steel, meeting the requirements of most fire safety regulations.
Installation and Mounting
Installation is tool-free in suspended ceilings. The three mounting clips automatically adapt to ceiling thickness and ensure secure fastening. The speaker insert is installed using a bayonet system, minimizing installation time. The external dimensions are 220 mm in diameter, with a maximum installation depth of 95 mm. The mounting is suitable for all common ceiling thicknesses.
Operational Advantages
The RC-306 offers quick, tool-free installation, even sound distribution due to the 180° dispersion angle, and a robust full-metal construction. The use of powder-coated steel for the mounting plate and speaker ring ensures high mechanical stability and complies with most fire safety requirements. The 100-V technology enables flexible power adjustment and centralized control of the sound system.
| Technical data | |
| Mounting depth (max.) | 95 mm |
| Adjustments at 100 V | 6/3/1,5 W |
| Impedance | 8 Ohm |
| Beam angle (-6dB, 1 kHz) | 180° |
| Shape | Round |
| Rated load capacity (program) | 6 W (15 W) |
| Sound pressure level (SPL) Pmax/1 m | 107 dB |
| Speaker diameter | 165 mm |
| Sound pressure level (SPL) 1 W/1 m | 97,5 dB |
| Colour | white (RAL 9010) |
| External dimensions Ø | 220 mm |
| Frequency range (±10dB) | 97 – 20.000 Hz |
