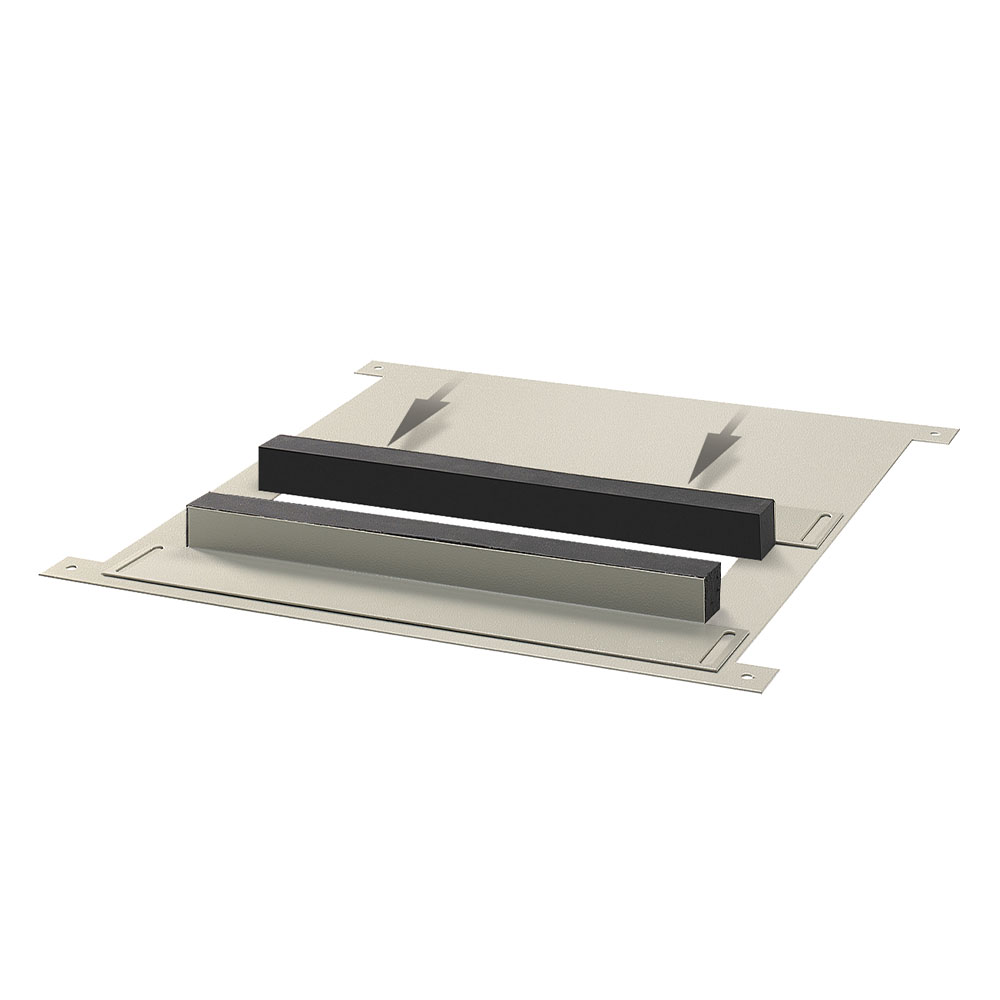

RCS Audio-Systems RBP-100 Floor plate for 48,3 cm ( 19 inch ) enclosures RAB content_copy

The RBP-100 base plate from RCS Audio-Systems is an accessory for the 19˝ enclosures of the RAB series. It provides secure closure of the lower section of the enclosure, preventing dust and dirt particles from entering the interior of the device housing. The design also enables orderly and clean cable routing, allowing the cabling within the enclosure to be structured and clearly arranged.

Applications

The base plate is specifically designed for use in professional sound reinforcement and audio systems based on the RAB series. It is used in environments where high cleanliness and protection against contamination are required, such as in recording studios, event technology, or technical rooms with high hygiene standards. The lockable design ensures controlled air circulation while minimizing the entry of foreign particles.

Functions and Features in Detail

The RBP-100 features a sliding mechanism that enables secure closure of the lower enclosure section. This mechanism ensures that air circulation within the enclosure remains dust-free, preventing unwanted particles from entering. Cable routing is facilitated through a foam seal, which allows for comfortable and clean cable exit. This reduces the risk of cable damage and improves the clarity of the installation.

Technology Explained Simply

The base plate is a fixed component designed to be installed into the lower opening of RAB enclosures. The lockable feature is achieved via an integrated sliding mechanism, ensuring secure closure. The use of a foam seal for cable routing ensures that cables are not pulled through the opening uncontrolled, but are instead routed in an organized and protected manner. This contributes to cable longevity and installation safety.

Compatibility and Accessories

The RBP-100 base plate is exclusively intended for 19˝ enclosures of the RAB series. It is compatible with all models of this series listed in the product description. The use of additional accessories such as the fan module RFF-200 or the sliding rails RGL-525 is recommended in the datasheet to optimize the functionality and stability of the enclosure system. The base plate itself is not part of these accessories, but is a standalone component for securing the lower section.

Installation and Mounting

The base plate is installed by simply inserting it into the lower opening of the RAB enclosure. The sliding mechanism is then closed to ensure secure closure. Cable routing is done through the designated foam seal, enabling clean and structured cabling. The installation requires no additional tools or mounting aids, as the base plate mechanically fits into the enclosure frame.

Operational Advantages

Using the RBP-100 improves hygiene and cleanliness within the enclosure, as dust and dirt particles are effectively excluded. The structured cable routing increases clarity and simplifies maintenance tasks. The lockable design also ensures controlled air circulation, supporting cooling of devices installed in the enclosure without compromising the cleanliness of the interior. The base plate is therefore an important component for professional use of the RAB series in demanding environments.

Technical data
System compatibility	RAB series

---
