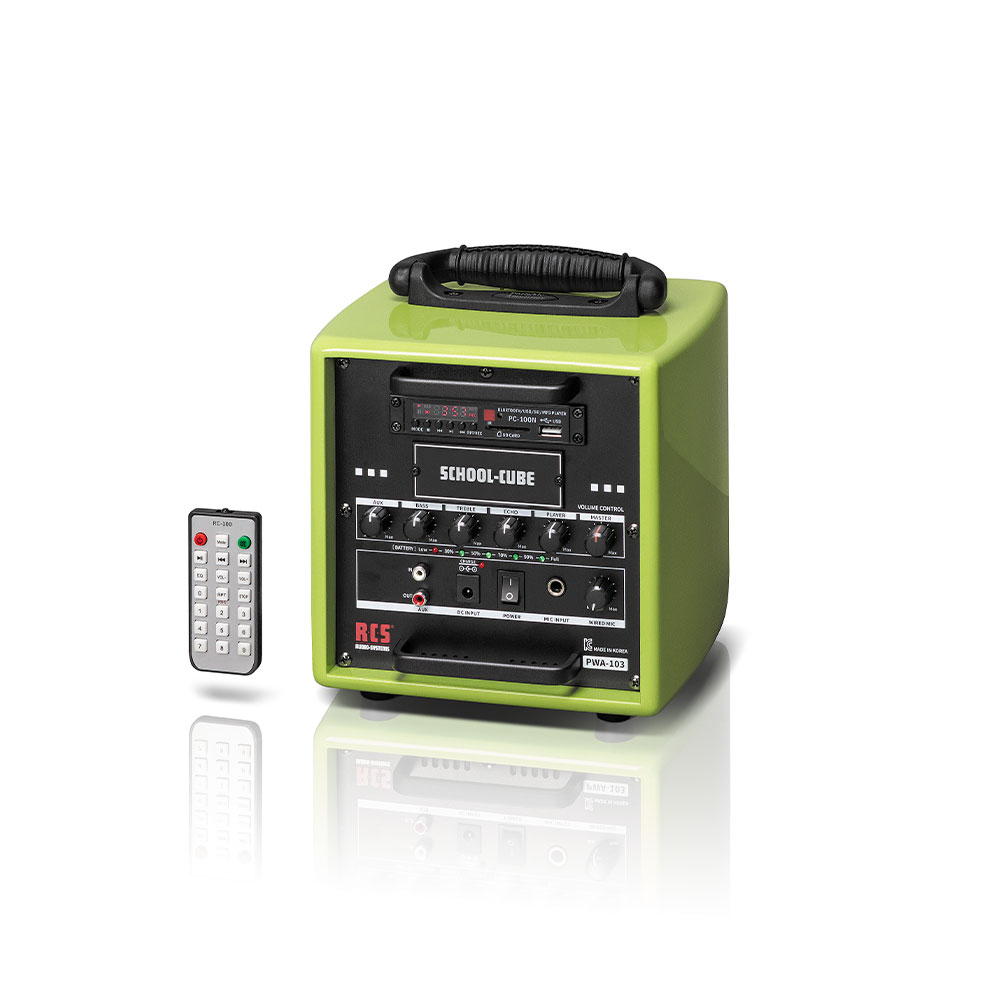

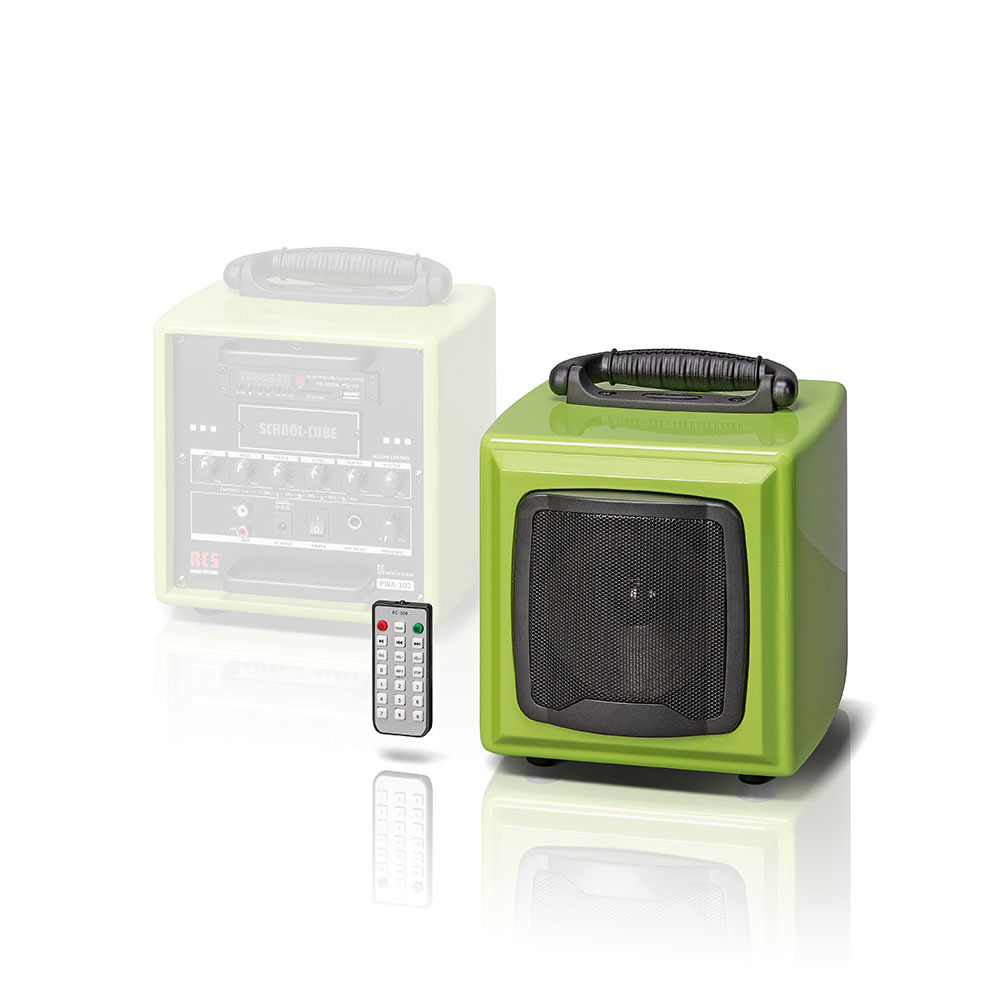

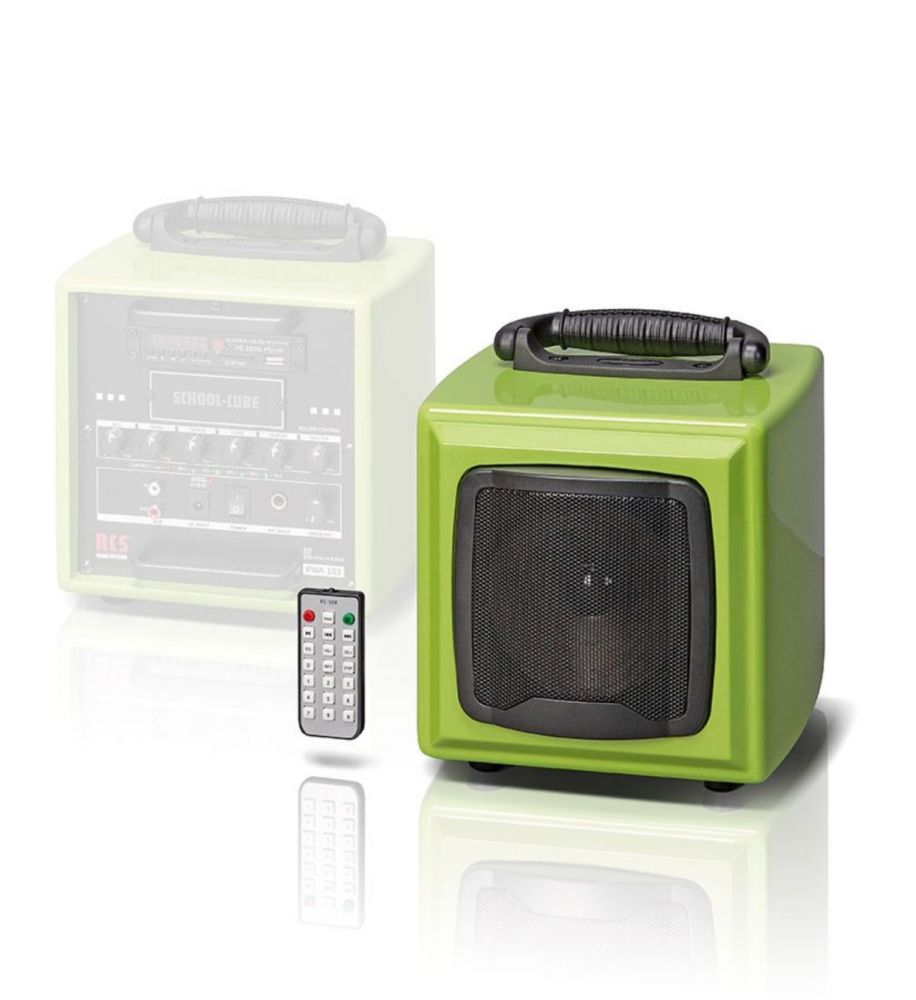

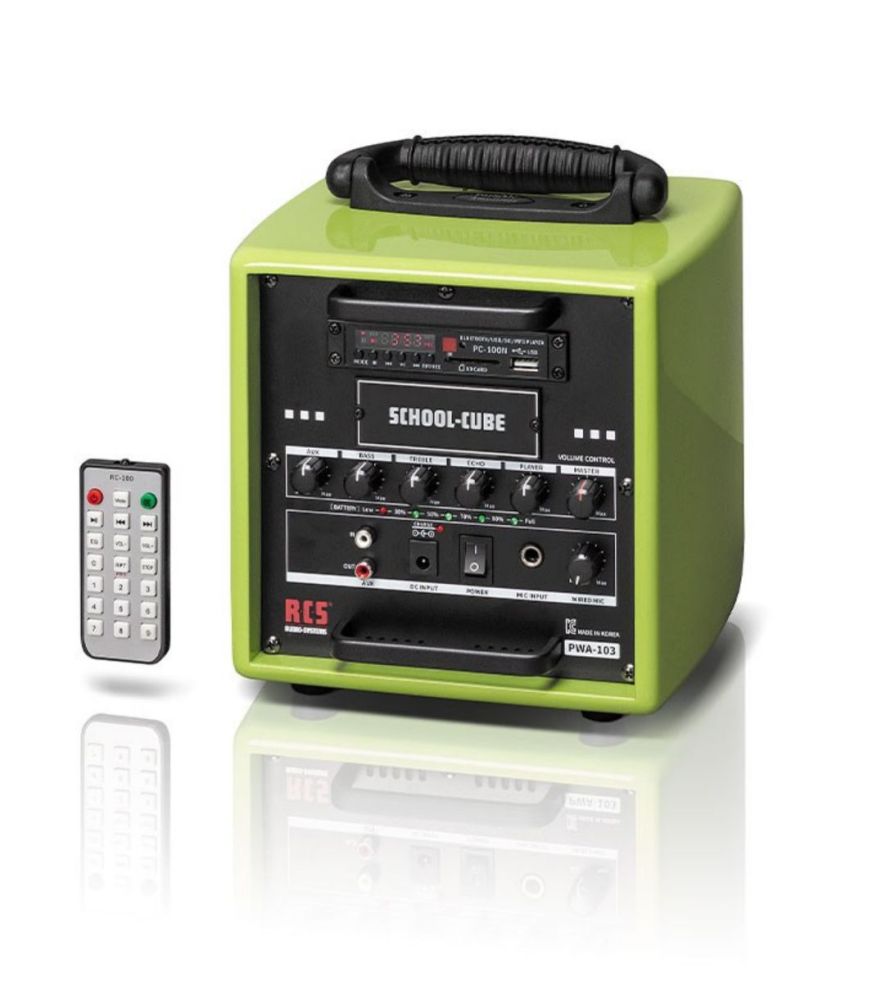

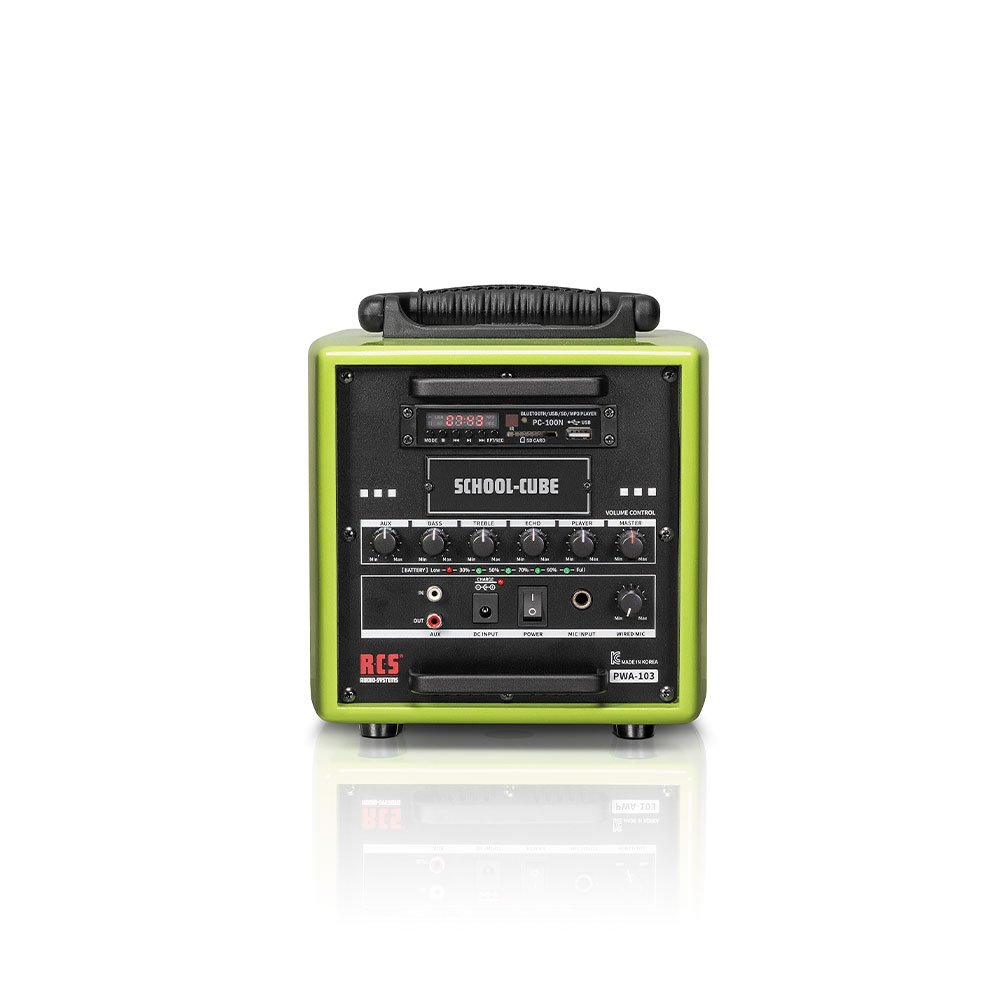

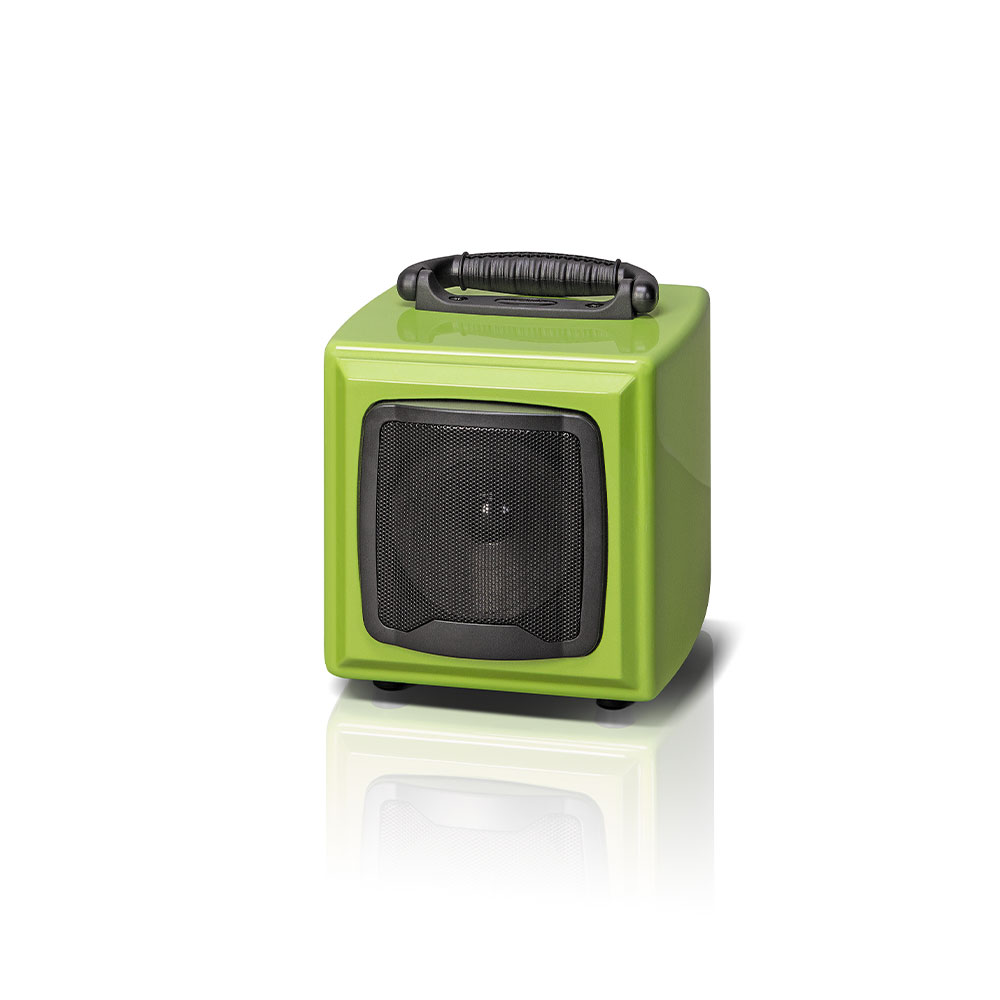

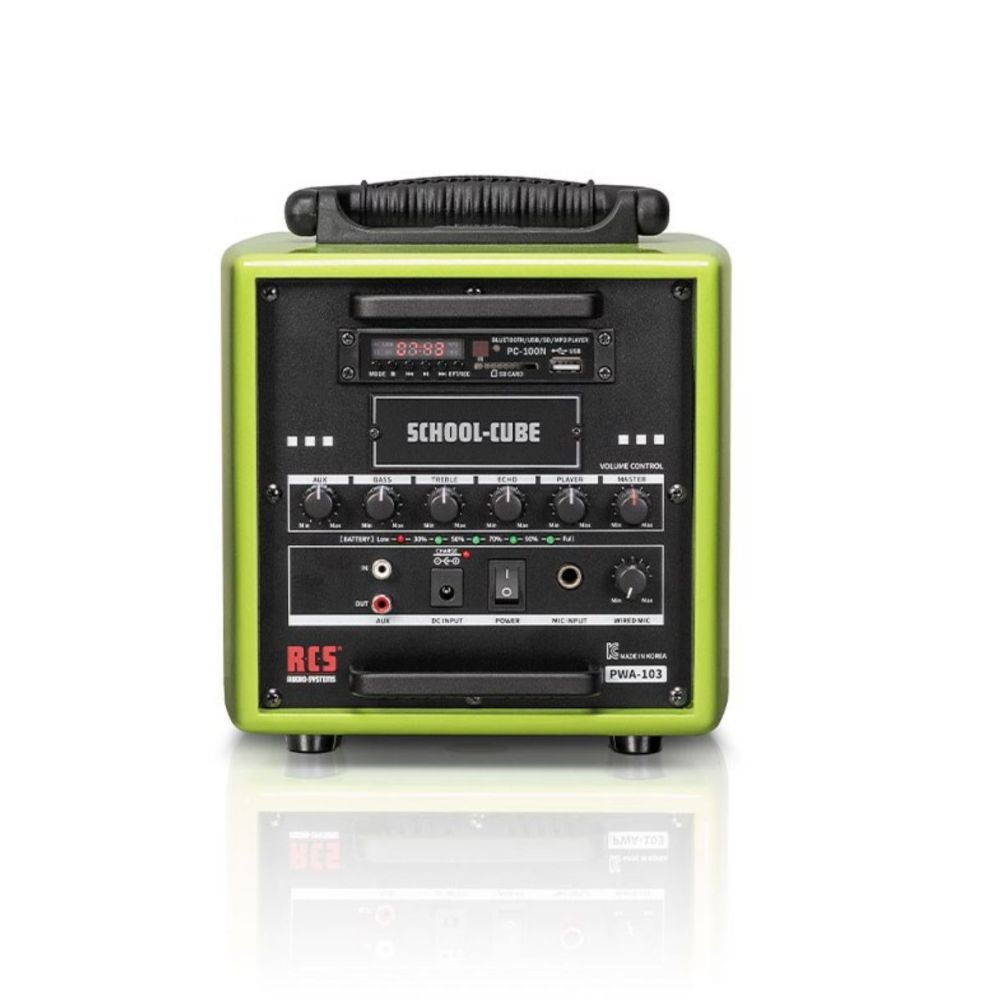

RCS Audio-Systems PWA-103 SCHOOL CUBE 100, 40 W, with integrated multifunction player content_copy

The PWA-103 from RCS Audio-Systems is a compact, powerful speaker specifically designed for use in schools. It is intended for classroom audio support during lessons and features a robust construction, easy operation, and versatile functions. The device includes an integrated MP3 multi-player, enabling playback of audio files via USB, SD card, or Bluetooth. Additionally, it can be used as a recording device to save audio content directly to USB storage or SD cards. The combination of compact dimensions, lightweight design, and mains operation makes the PWA-103 particularly mobile and suitable for continuous use in educational environments.

Applications
The PWA-103 is primarily designed for use in schools, especially for audio coverage in classrooms during lessons. It is suitable for playing educational materials, audiobooks, music, or language exercises. The robust construction with an MDF enclosure and durable components make it ideal for daily, intensive use in educational institutions. Due to its mobile design, it can be easily transported between different rooms.

Functions and Features in Detail
The device features an integrated MP3 multi-player that supports playback of audio files in MP3 format. Media sources include USB storage, SD cards, and Bluetooth connectivity, allowing flexible use with various devices such as laptops, smartphones, or tablets. An integrated recording function enables saving audio content directly to USB or SD, for example, for documenting lesson recordings or presentations. Operation is facilitated by a supplied remote control, which allows control of playback, volume, and other functions.

Technology Explained Simply
The PWA-103 is equipped with a 5.25˝ full-range speaker, delivering balanced, clear, and natural sound. The program power is 40 W, with an RMS power of 20 W, providing sufficient volume for a classroom. Power supply is via an included DC power adapter rated at 15 V and 3.3 A. The device features a line cinch input and a 6.3 mm jack microphone input to connect external audio sources such as microphones or PCs. A line out cinch output allows forwarding the audio signal to other devices. The enclosure is made of MDF and finished in high-gloss lindgreen, giving it an attractive yet durable appearance.

Compatibility and Accessories
The PWA-103 can be connected to various audio sources, including PCs, smartphones, and microphones, thanks to its integrated connections. Support for USB, SD card, and Bluetooth enables use with a wide range of storage media and mobile devices. The included remote control enhances usability. No specific accessories are mentioned in the sources, but compatibility with common storage media and audio inputs is provided.

Mounting and Installation
The PWA-103 is designed as a freestanding unit and requires no special mounting. It can simply be placed on a table, lectern, or shelf. Power supply is via the included power adapter, which connects to a standard wall outlet. Connections for external devices are directly accessible on the unit, eliminating the need for additional adapters or extensions.

Operational Advantages
The PWA-103 offers high user-friendliness thanks to the integrated remote control and simple operation of its functions. The combination of compact design, lightweight construction, and mains operation enables flexible use. The robust MDF enclosure ensures long service life, even with daily use. The variety of connection options and the integrated recording function enhance functionality in educational settings.
