RCS Audio-Systems PTC-240 D ›VARES-3000‹ master clock, 1 U, incl. secondary clock control, digital

Your rating:
Average rating
product review for RCS Audio-Systems PTC-240 D ›VARES-3000‹ master clock, 1 U, incl. secondary clock control, digital
( 4.5 / 5 ) 157 ratings

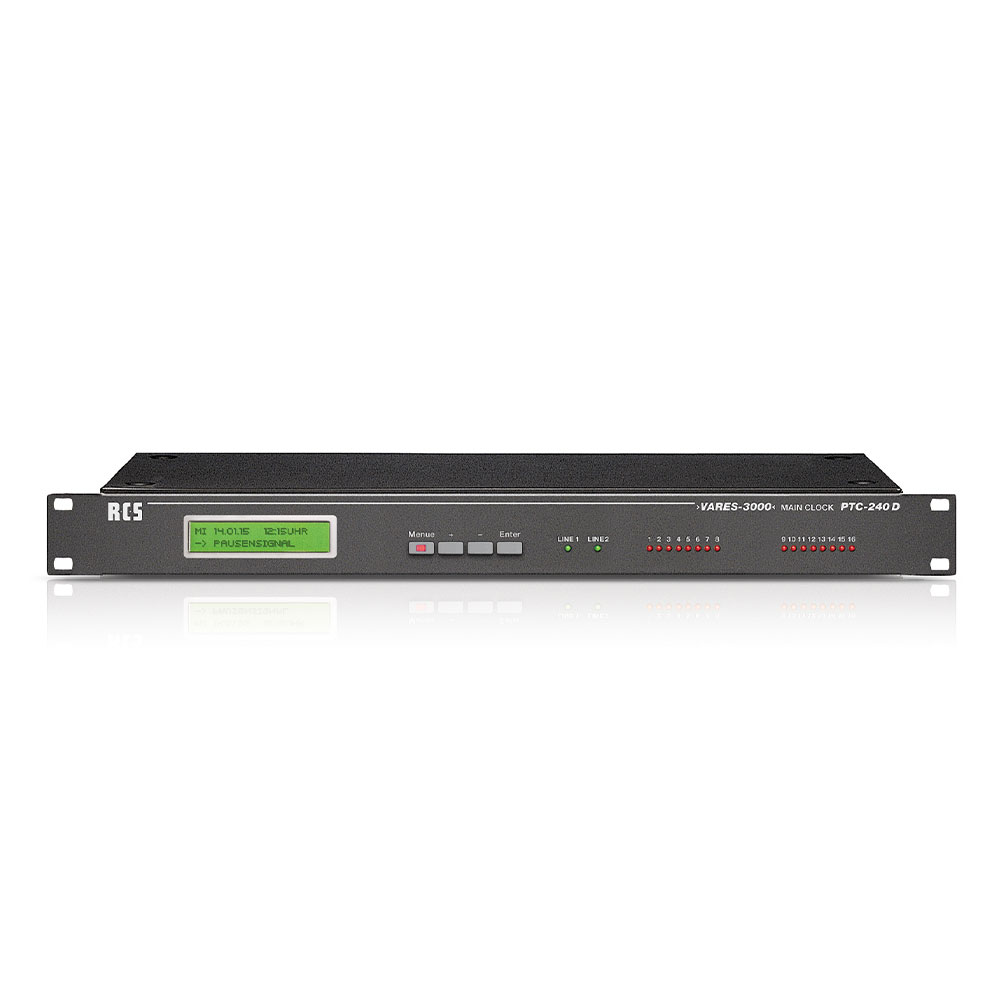

RCS Audio-Systems PTC-240 D
This image may differ from the desired article.
874,00 EUR
( 1.040,06 EUR incl. VAT )
≈ £728.04  |  ≈ $958.78
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems PTC-240 D ›VARES-3000‹ master clock, 1 U, incl. secondary clock control, digital
Datasheet:file_download Download
Lieske Part No.:102606
Mfg Part No: PTC-240 D
UPC/EAN: 4250458237701
Weight:2 kg
Type:PTC-240D
Graduated prices net
From piecesPrice per pieces
3815,01 EUR
6756,01 EUR
9697,02 EUR
12638,02 EUR

Product information for RCS Audio-Systems PTC-240 D:

The PTC-240 D is a 48,3 cm ( 19 inch )-master clock from the manufacturer RCS Audio-Systems, specifically developed for the central control of slave clocks in industrial, educational, or public facilities. It serves as the system master clock in the VARES-3000 system and enables control of up to 130 slave clocks via two independent slave clock lines in pulse mode. The clock is designed for mounting in standard 48,3 cm ( 19 inch ) racks and has a height of 1 U. The operating voltage is 24 V DC, with a maximum current consumption of 2 A. The timekeeping reserve is 10 years, ensuring high reliability even during power failures.

Applications
The master clock PTC-240 D is suitable for applications in the field of time-controlled sound signaling and slave clock control in buildings with multiple rooms or departments. It is commonly used in schools, hospitals, administrative buildings, or production facilities where precise and synchronized time control is required. The integrated slave clock control enables centralized control of clocks at various locations, with pulses transmitted via the NU lines. The automatic switch from summer to winter time ensures always up-to-date time display without manual intervention.

Functions and Equipment in Detail
The clock features a two-line LCD display with text readout, showing the current time, operating status, and set events. Basic functions can be quickly and comfortably adjusted using four buttons on the front panel. For more extensive programming, a PC configuration software is available, enabling clear and structured input of events. The memory capacity is 250 events, logged in a daily list. The pulse sequence is normally set to 1 pulse per minute, and during alignment, to 10 pulses per minute. The pulse duration is digitally adjustable and can be varied between 1 and 59 seconds.

Technology Explained Simply
The time base of the master clock is based on a quartz oscillator, ensuring high accuracy. Optionally, a DCF-77 radio receiver (PRR-077 B) can be connected, which synchronizes the clock hourly with the German radio time signal. This ensures high time accuracy, especially in environments with good reception. The operating mode of the NU lines is in minute pulse mode, with each pulse lasting 2 seconds. The load capacity per line is 0.5 A, sufficient to supply up to 65 slave clocks per line. The contact load capacity of the switching outputs is 6 A at 160 V per channel, enabling safe control of relays and switches.

Compatibility and Accessories
The master clock PTC-240 D is part of the VARES-3000 system and can be combined with other components of this system. Optionally, relay cards PTC-008 B can be connected to realize up to 16 time-dependent switching outputs. The RS-485 bus interface enables communication with other devices in the system. The DCF radio receiver PRR-077 B is intended for external time correction and can be mounted outdoors, as it complies with protection class IP 65. The programming adapter PCA-300 is used for configuring the master clock, especially when operated without the base unit PSS-224 C.

Mounting and Installation
The master clock is designed for 48,3 cm ( 19 inch ) rack mounting and fits into standard 48,3 cm ( 19 inch ) racks. Dimensions are 483 mm (width) × 44 mm (height) × 171 mm (depth). Installation is done via integrated mounting holes. The monitoring of NU lines includes overload and short-circuit protection to prevent damage to the installation. A monitored 24 V emergency power input ensures that slave clock pulses continue to be transmitted even during a power failure. The position of the slave clocks is stored during power failure, without requiring an additional battery. After the mains voltage is restored, the slave clocks are automatically re-synchronized.

Advantages in Operation
The free programming of all relay contacts enables flexible use of switching outputs for various applications, such as controlling fans, lighting, or alarm systems. The logging of daily events in the daily list simplifies maintenance and fault diagnosis. The automatic time adjustment and the high timekeeping reserve reduce maintenance effort. The combination with the VARES-3000 system extends functionality with additional features such as time-controlled text announcements in selected areas.

Technical data
Power supply24 V DC / max. 2 A
Storage space250 (events)
IndicationLCD display, two-line, plain text
Operating mode NU-linesMinute pulse, 2 seconds long
InterfacesRS-485 bus
Autonomy10 years
Load capacity0.5 A/line
Height units1 HE
System compatibilityVARES-3000
Dimensions (W x H x D)483 x 44 x 171 mm; 1 HE
Switching outputsmax. 16/changeover contact
Number of NU lines65 auxiliary clocks per line
Time baseQuartz, optional DCF-77
Pulse sequenceNormal: 1/min. Aligning: 10/min.
Pulse duration1-59s digitally adjustable
Contact rating6A/160 V per channel
19" rack mountingJa


Product data sheet
Datasheet for RCS Audio-Systems PTC-240 D, EAN: 4250458237701
