RCS Audio-Systems PSM-108 B PRO-LINE microphone fault alarm module, speech station extension for PDM-208 B, digital
|
283,10 EUR |
|||||||||||
|
( 336,89 EUR incl. VAT ) ≈ £236.67 | ≈ $312.83 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 187084 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | PSM-108 B | ||||||||||
| UPC/EAN: | 4250458268361 | ||||||||||
| Weight: | 0.3 kg | ||||||||||
| Type: | PSM-108B | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems PSM-108 B:
Applications
The PSM-108B is designed for use in professional public address systems, particularly in buildings with high safety requirements such as hospitals, administrative buildings, industrial facilities, or public institutions. It serves as an extension for existing speaking stations to enhance their functionality with local fault indication. The direct display at the speaking station allows operating personnel to immediately recognize disturbances without relying on central monitoring systems.
Functions and Equipment in Detail

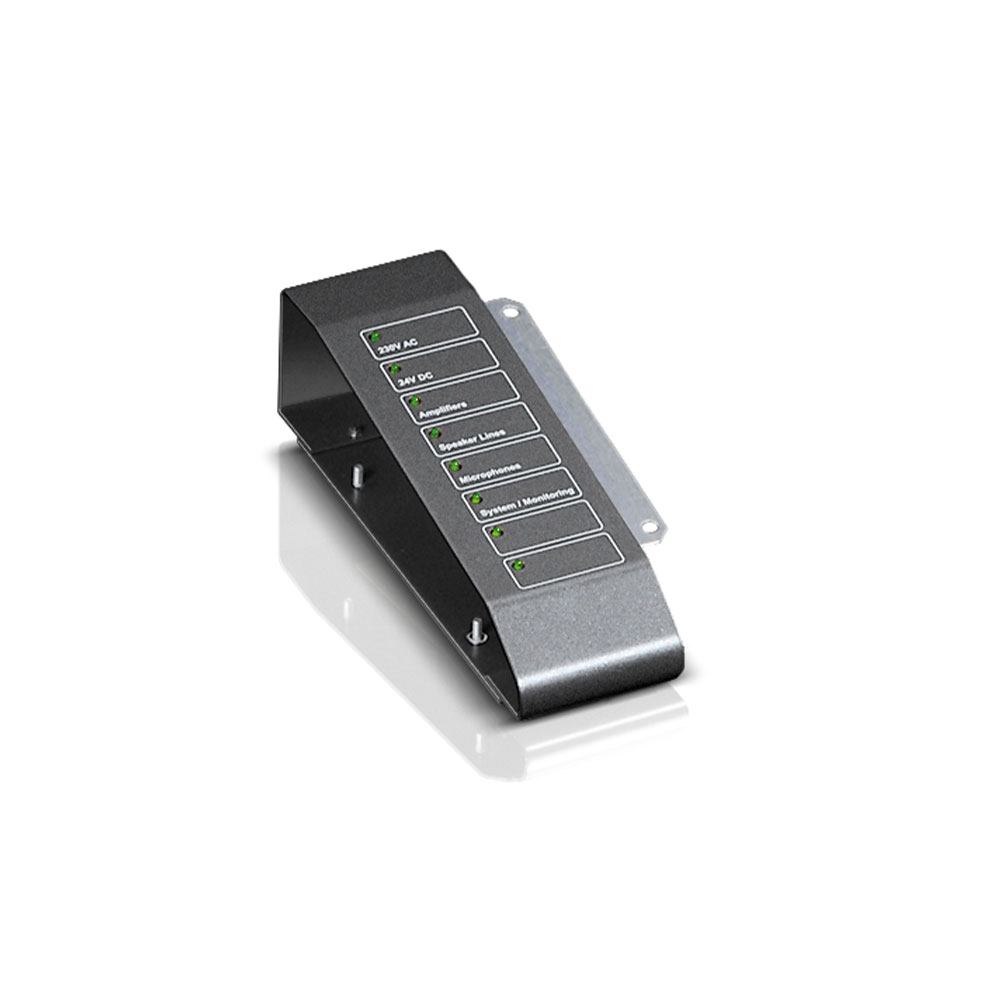

The module signals eight specific fault types, each indicated by its own display. The fault types include failure of the main power supply, backup power supply, amplifier, impedance change in a loudspeaker line, failure of a microphone or its connecting cable, failure of a siren or text module, bus interruption or device failure, as well as memory or module failures. This detailed fault identification enables targeted and rapid response to disturbances.
Technology Explained Simply
Power supply is provided via the connection cable PFK-101, which delivers 5 V. The module consumes a continuous current of up to 5 mA and at least 150 µA, ensuring extremely energy-efficient operation. Due to this low power consumption, the module is suitable for continuous use without requiring additional power supply units. The compact housing with dimensions 55 x 45 x 182 mm (W x H x D) can be easily mounted on existing speaking stations without affecting the existing installation.
Compatibility and Accessories
The PSM-108B is specifically developed for integration into the VARES-3000 system and serves as an extension for speaking stations, particularly for the PDM-208 B model series. It is supplied together with the connection cable PFK-101, which ensures power supply. The use of the module requires no additional components beyond the existing speaking station system.
Mounting and Installation

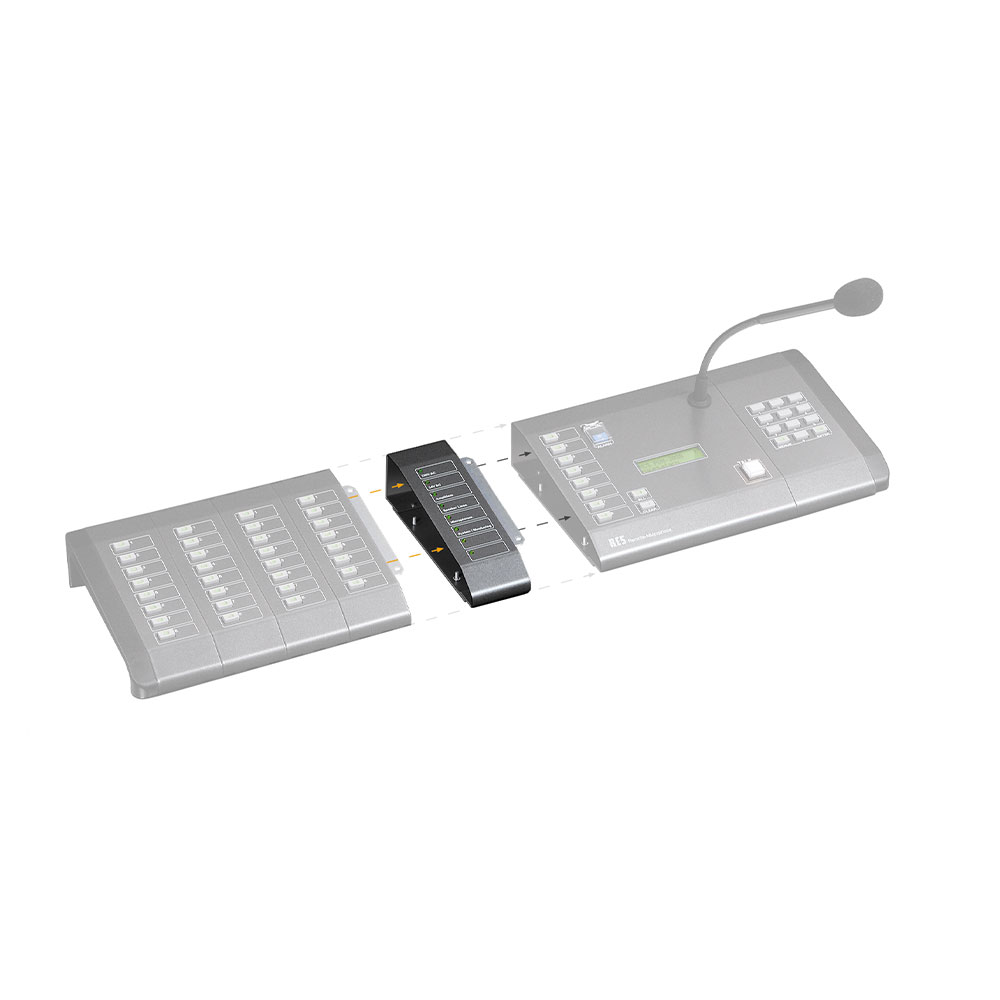

Mounting is done directly at the speaking station, where the module is installed as a modular extension. Installation is simple and does not require major modifications to the existing system. The compact design allows for unobtrusive integration into existing installations.
Operational Advantages
Through direct, selective fault indication at the speaking station, response time to disturbances is significantly reduced. The norm-compliant monitoring according to VDE 0828 and EN 60849 ensures that the system meets required safety standards. The modular design enables easy retrofitting of existing systems without requiring a complete overhaul of the infrastructure. The low power consumption ensures reliable and low-maintenance operation over a long period.
Scope of Delivery
The scope of delivery includes the microphone fault alert module PSM-108B, the connection cable PFK-101, and the operating instructions. These components are sufficient to install and commission the module directly at a speaking station.
| Technical data | |
| System compatibility | VARES-3000 |
| Dimensions (W x H x D) | 55 x 45 x 182 mm |
| Power consumption min./max. | Continuous current 150 µA / 5 mA |
| Current supply | via connection cable PFK-101 (5V) |
| Error indicators | 8 |
