RCS Audio-Systems PRC-508 A VARES-3000 relay card 8-channel digital incl. routing for line monitoring

Your rating:
Average rating
product review for RCS Audio-Systems PRC-508 A VARES-3000 relay card 8-channel digital incl. routing for line monitoring
( 4.5 / 5 ) 73 ratings
RCS Audio-Systems PRC-508 A
This image may differ from the desired article.
RCS Audio-Systems PRC-508 ARCS Audio-Systems PRC-508 ARCS Audio-Systems PRC-508 A
416,10 EUR
( 495,16 EUR incl. VAT )
≈ £346.61  |  ≈ $456.46
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems PRC-508 A VARES-3000 relay card 8-channel digital incl. routing for line monitoring
Lieske Part No.:812815
Mfg Part No: PRC-508 A
UPC/EAN: 4250458203461
Weight:0.2 kg
Type:PRC-508A
Graduated prices net
From piecesPrice per pieces
4388,01 EUR
8359,93 EUR
12331,84 EUR
16303,75 EUR

Product information for RCS Audio-Systems PRC-508 A:

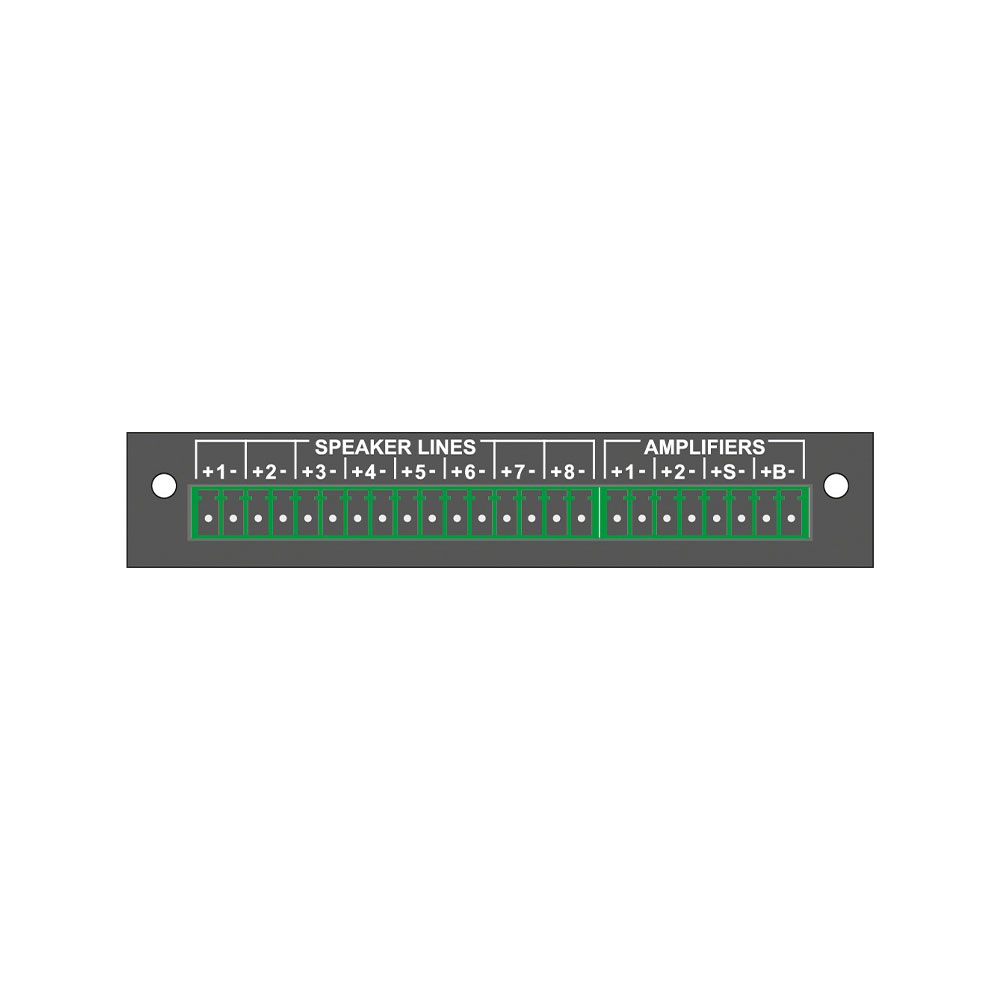

The PRC-508A from RCS Audio-Systems is a digital line matrix relay card specifically developed for use in the emergency warning system VARES-3000. It serves as the central control unit for signal distribution and monitoring in professional public address systems, particularly in buildings with high requirements for the reliability and safety of alarm and notification systems. The card enables control of eight loudspeaker outputs and simultaneously provides the capability to monitor four amplifier inputs, thus playing a central role in the signal flow within the system.

Line matrix relay card
The PRC-508A is an 8-channel digital relay card comprising a total of 24 relays. These relays are used for signal distribution and control between amplifiers and loudspeakers. Digital control is performed via an integrated microprocessor, which monitors and controls the card’s functions. This ensures precise and reliable signal processing, which is essential for critical applications such as emergency warnings.

Functions and equipment in detail
A key component of the card is line monitoring, carried out in accordance with standards VDE 0828 and EN50849. The card continuously monitors the signal path to detect faults or interruptions in the system at an early stage. In the event of an external short circuit, an automatic two-pole disconnection of the affected line is initiated to protect the entire system from damage.

Technology explained simply
The digital control via the microprocessor enables flexible and precise control of the relays. The card can be freely programmed using the VARES-3000 software, allowing individual adaptation to the specific requirements of the installation environment. Continuous monitoring of the signal path ensures that system integrity is maintained at all times. The two-pole disconnection in the event of a short circuit protects not only the affected line but also the remaining system components from potential damage.

Compatibility and accessories
The PRC-508A is exclusively designed for the VARES-3000 system and can only be used within this system environment. The card is not suitable for other systems or without the VARES-3000 software.

Mounting and installation

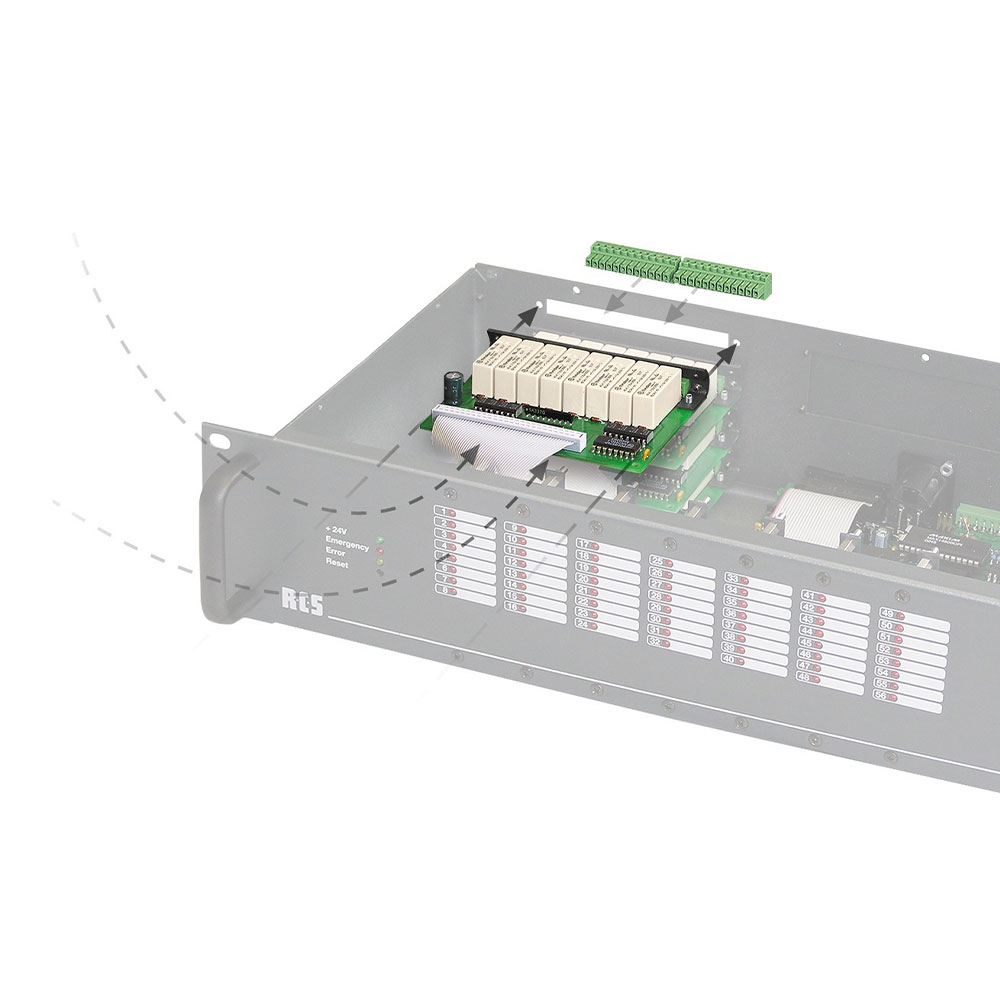

The card has dimensions of 135 mm (width) × 95 mm (height) × 13 mm (depth) and is designed for mounting in standard 19-inch racks. Installation is performed by integrating the card into the VARES-3000 system, with cabling and configuration carried out via the software. The card requires no additional tools or special mounting conditions.

Advantages in operation
The card offers high reliability through continuous system monitoring and automatic disconnection in case of faults. Free programmability allows flexible adaptation to different requirements. Integration into the VARES-3000 system ensures compatible and standardized operation, which is crucial for professional applications in buildings equipped with emergency warning systems. Digital control ensures precise signal processing, which is essential for the safety and functionality of the entire system.

Technical data
System compatibilityVARES-3000
Dimensions (W x H x D)135 x 95 x 13 mm


Questions & answers

What is the delivery time of RCS Audio-Systems PRC-508 A VARES-3000 relay card 8-channel digital incl. routing for line monitoring?

The article RCS Audio-Systems PRC-508 A VARES-3000 relay card 8-channel digital incl. routing for line monitoring is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems PRC-508 A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems PRC-508 A VARES-3000 relay card 8-channel digital incl. routing for line monitoring always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems PRC-508 A VARES-3000 relay card 8-channel digital incl. routing for line monitoring if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of RCS Audio-Systems PRC-508 A VARES-3000 relay card 8-channel digital incl. routing for line monitoring we can offer you a price of 388,01 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
