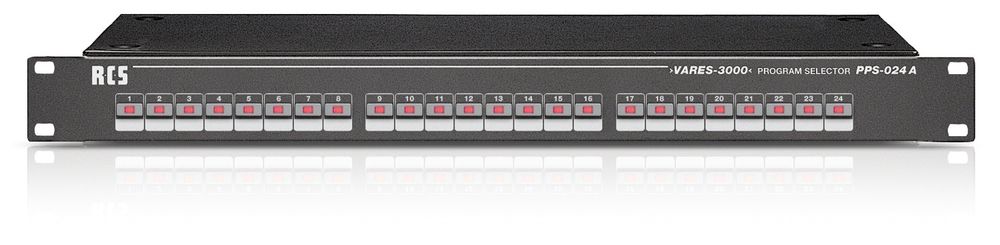

RCS Audio-Systems PPS-024 A PRO-LINE program panel, 1 RU, digital content_copy

The PPS-024A program control panel is the ideal solution for manually switching up to 24 individually programmed background music zones in PA systems. Each button on the panel can be assigned to a relay in the control center, allowing flexible control over individual zones or defined speaker groups. The intuitive configuration of each button is performed via the PC software “ConfigV3000”.

With support for up to three PPS-024A units per control center, the system offers maximum flexibility for managing complex sound distribution networks. Connection is simple via the PFK-200 cable, plugging into the SLAVE port of the PSS-224C control center. For decentralized installations, the internal bus module PBC-400B allows the panel to be placed anywhere along the VARES-3000 bus—just like an intercom station.

The PPS-024A is integrated into the system via a PBA-300A bus socket, using the PMC-003 connection cable. For added reliability, the bus connection can be monitored through the “ConfigV3000” software.

Technical Data:

Device Type:
– PPS-024A Program Control Panel

Power Supply:

– via external PFK-200 bus cable (5V)

Current Consumption:

– 7 mA (all buttons off)
– 20 mA (all buttons on)

Connection:

– SLAVE IN: 26-pin ribbon connector

Dimensions (W x H x D):

– 483 x 45 x 185 mm (1 RU)

Required Rack Depth:

– 200 mm

Weight:

– 2.3 kg

Key Features:

– Control of up to 24 background music zones
– Buttons programmable for individual or grouped speaker circuits
– Up to three panels can be used per control center
– Remote installation via internal bus module possible
– Connects via PBA-300A bus socket and PMC-003 cable
– Bus monitoring function via “ConfigV3000”
– Seamless integration with VARES-3000 system
Type: PPS-024A
