RCS Audio-Systems PMO-350 C ›VARES-3000‹ measurement and monitoring module, digital

Your rating:
Average rating
product review for RCS Audio-Systems PMO-350 C ›VARES-3000‹ measurement and monitoring module, digital
( 4.6 / 5 ) 59 ratings

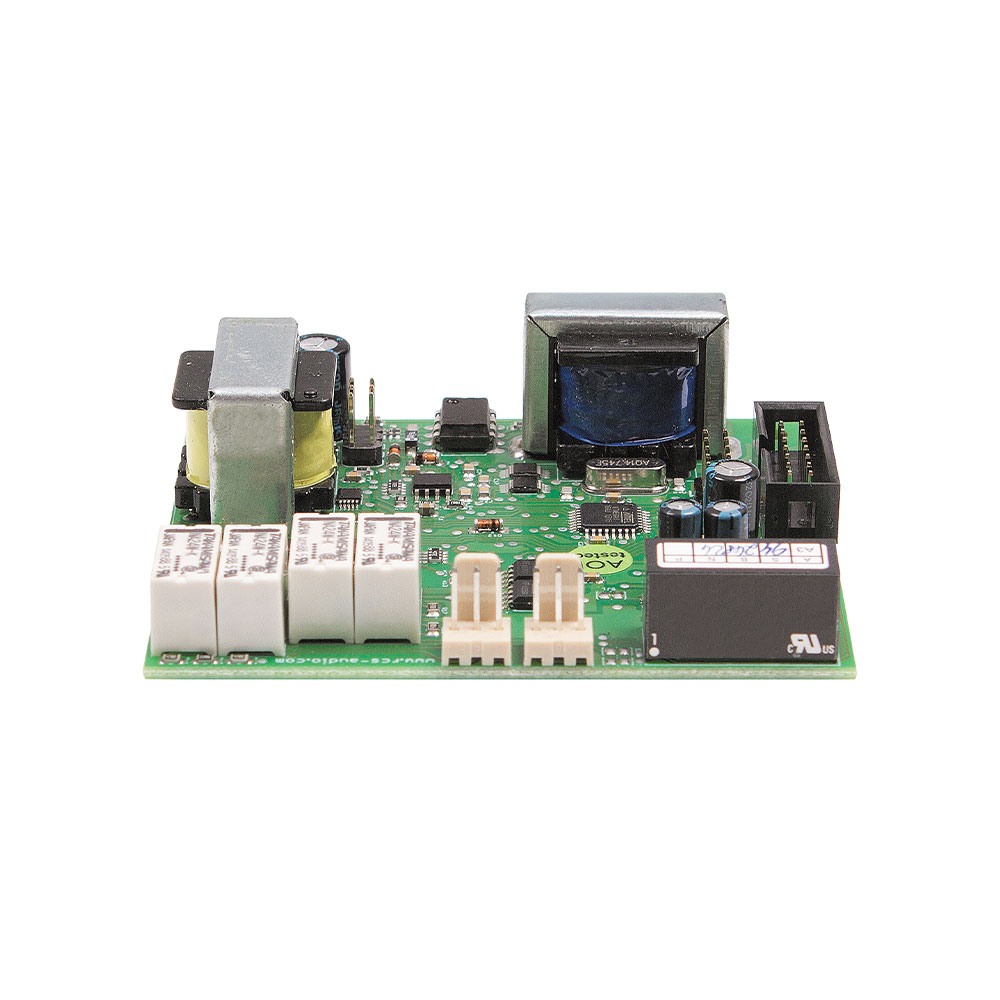

RCS Audio-Systems PMO-350 C
This image may differ from the desired article.
491,15 EUR
( 584,47 EUR incl. VAT )
≈ £410.60  |  ≈ $539.77
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems PMO-350 C ›VARES-3000‹ measurement and monitoring module, digital
Lieske Part No.:102455
Mfg Part No: PMO-350 C
UPC/EAN: 4250458278902
Weight:0.2 kg
Type:PMO-350C
Graduated prices net
From piecesPrice per pieces
4458,00 EUR
8424,84 EUR
12391,69 EUR
16358,54 EUR

Product information for RCS Audio-Systems PMO-350 C:

The measurement and monitoring module PMO-350C from RCS Audio-Systems is a digital internal module specifically developed for installation in the Control-Center PSS-224C. It serves as a central component in the VARES-3000 system for continuous evaluation and monitoring of audio and test signals. The module enables precise monitoring of line, microphone, and amplifier signals, ensuring reliable functional control of the entire public address system. The technical design complies with the standards VDE0828/EN60849, confirming compliance with safety and functional requirements for emergency warning systems. As an impedance measuring device, it detects electrical resistances in the signal path to identify faults or defects at an early stage.

Applications

The module is primarily intended for professional public address systems in the field of emergency and alarm technology, particularly in buildings with high requirements for communication reliability, such as hospitals, administrative buildings, or public facilities. It integrates into existing VARES-3000 systems and supports continuous monitoring of signal quality to enable immediate response to errors or failures. Integration into the Control-Center PSS-224C ensures central control and diagnostics of the entire system.

Functions and Equipment in Detail

The PMO-350C evaluates all connected audio and test signals. Signals from lines, microphones, and amplifiers are analyzed to detect deviations from predefined parameters. The function as an impedance measuring device allows measurement of electrical resistance in the signal path, which is crucial for detecting cable breaks, contact problems, or incorrectly connected loudspeakers. Monitoring is performed digitally, ensuring high accuracy and stability of measurement values. The module is not intended for use outside the Control-Center and must be installed in the PSS-224C to perform its functions.

Technology Explained Simply

Digital signal processing in the module enables precise analysis of electrical signals. Impedance measurement is performed by determining the resistance in the signal path, which has a defined value in a correctly installed system. Deviations from this value indicate technical faults. The standard VDE0828/EN60849 specifies that such systems must be suitable for monitoring emergency warning systems, which underlines the reliability and safety of the module. The installation size of 80 x 70 x 27 mm (W x H x D) is designed to match the standard of the Control-Center PSS-224C, ensuring trouble-free mounting.

Compatibility and Accessories

The module is exclusively intended for use in the Control-Center PSS-224C and belongs to the VARES-3000 system. It is not compatible with other control devices or systems. The module’s functions are focused on monitoring line, microphone, and amplifier signals, with evaluation performed digitally.

Mounting and Installation

Installation is carried out by inserting the module into the Control-Center PSS-224C, where the physical dimensions of the module (80 x 70 x 27 mm) are matched to the designated slots. Installation requires no additional tools or components, as the module is directly integrated into the Control-Center.

Operational Advantages

Continuous monitoring of audio and test signals, along with impedance measurement, increases the operational safety of the entire public address system. Faults in the signal path are detected early, ensuring that emergency communication is not impaired. Integration into the VARES-3000 system enables central diagnostics and control, making maintenance work more efficient. Digital evaluation ensures high accuracy of measurement results, supporting the overall reliability of the system.

Technical data
System compatibilityVARES-3000
Dimensions (W x H x D)80 x 70 x 27 mm


Questions & answers

What is the delivery time of RCS Audio-Systems PMO-350 C ›VARES-3000‹ measurement and monitoring module, digital?

The article RCS Audio-Systems PMO-350 C ›VARES-3000‹ measurement and monitoring module, digital is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems PMO-350 C to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems PMO-350 C ›VARES-3000‹ measurement and monitoring module, digital always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems PMO-350 C ›VARES-3000‹ measurement and monitoring module, digital if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of RCS Audio-Systems PMO-350 C ›VARES-3000‹ measurement and monitoring module, digital we can offer you a price of 458,00 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
