RCS Audio-Systems PIC-216 C ›VARES-3000‹ expansion module for PIC-416 C, 16 monitored inputs, digital

Your rating:
Average rating
product review for RCS Audio-Systems PIC-216 C ›VARES-3000‹ expansion module for PIC-416 C, 16 monitored inputs, digital
( 4.5 / 5 ) 34 ratings

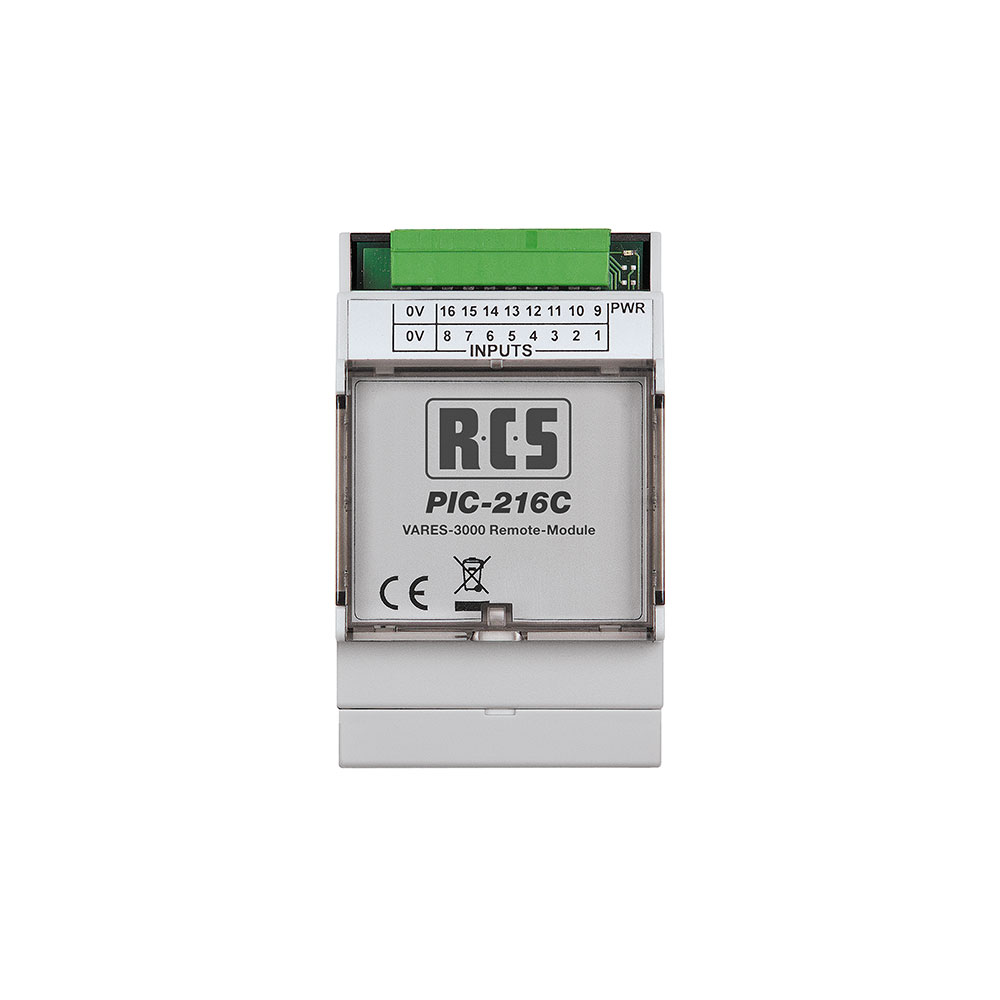

RCS Audio-Systems PIC-216 C
This image may differ from the desired article.
406,60 EUR
( 483,85 EUR incl. VAT )
≈ £338.70  |  ≈ $446.04
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems PIC-216 C ›VARES-3000‹ expansion module for PIC-416 C, 16 monitored inputs, digital
Lieske Part No.:102381
Mfg Part No: PIC-216 C
UPC/EAN: 4250458255101
Weight:0.2 kg
Type:PIC-216C
Graduated prices net
From piecesPrice per pieces
4379,15 EUR
8351,71 EUR
12324,26 EUR
16296,82 EUR

Product information for RCS Audio-Systems PIC-216 C:

The PIC-216C is a digital expansion module from RCS Audio-Systems, specifically designed for integration into the VARES-3000 system. As a slave module, it extends the input capacity of an existing emergency warning system by providing 16 monitored alarm inputs. The device is designed for mounting on a DIN rail and can be connected at any point along the bus cable, enabling flexible and decentralized installation. It is therefore ideal for applications requiring central control of multiple sensors or contacts, for example in industrial plants, buildings, or security systems.

Applications

The module is used in systems requiring central monitoring of multiple digital signal sources. Typical application scenarios include monitoring of door contacts, window contacts, smoke detectors, or other security sensors connected to the VARES-3000 system via digital inputs. The ability to connect up to two additional expansion units PIC-216C to the system allows scaling of the input count to up to 48 monitored contacts when multiple modules are combined. This makes the module particularly suitable for larger installations where a high number of sensors must be monitored.

Functions and Equipment in Detail

The PIC-216C features 16 programmable inputs, each monitoring a digital alarm contact. The inputs are designed to detect state changes and transmit these to the central VARES-3000 system. Monitoring is digital, ensuring clear signal transmission without analog errors. Each input can be individually configured to detect specific alarm conditions, allowing flexible adaptation to different requirements. The module architecture as a bus device enables serial communication over the VARES-3000 bus system, ensuring stable and reliable data transmission.

Technology Explained Simply

The module operates as a slave module, meaning it does not have independent control functions but connects to the central control unit of the VARES-3000 system. Communication takes place via a bus cable, which transmits data between individual modules and the main unit. DIN rail mounting enables compact and standardized installation in enclosures. The dimensions of 54 x 108 x 60 mm (W x H x D) correspond to the standard format for DIN rail modules, ensuring easy integration into existing control systems. The 16 monitored alarm inputs are designed to detect state changes from external sensors and forward them as digital signals to the system.

Compatibility and Accessories

The PIC-216C is exclusively intended for use in the VARES-3000 system. It can be combined with additional expansion units of the same type, with up to two additional PIC-216C modules connectable. This extends the total number of monitored inputs to up to 48 when all modules are fully utilized.

Mounting and Installation

Mounting is done on a standard DIN rail, with the module secured using the provided mounting elements. Connection is achieved via the bus cable, which can be connected at any point in the system. Installation does not require special tools, but proper cabling and configuration within the VARES-3000 system are necessary to fully utilize the functions. The module size of 54 x 108 x 60 mm allows for compact placement in enclosures without occupying much space.

Operational Advantages

Using the PIC-216C provides a flexible and scalable solution for extending the input capacity of a VARES-3000 system. Digital signal transmission ensures high reliability and minimizes error sources. The ability to connect up to two additional modules allows adaptation to growing requirements without replacing the central system. DIN rail mounting and bus communication simplify integration into existing installations and reduce installation time. The module architecture as a slave module ensures that the load on the central control unit is distributed, increasing system stability.

Technical data
Dimensions (W x H x D)54 x 108 x 60 mm
System compatibilityVARES-3000
Inputs16 monitored alarm inputs


Questions & answers

What is the delivery time of RCS Audio-Systems PIC-216 C ›VARES-3000‹ expansion module for PIC-416 C, 16 monitored inputs, digital?

The article RCS Audio-Systems PIC-216 C ›VARES-3000‹ expansion module for PIC-416 C, 16 monitored inputs, digital is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems PIC-216 C to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems PIC-216 C ›VARES-3000‹ expansion module for PIC-416 C, 16 monitored inputs, digital always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems PIC-216 C ›VARES-3000‹ expansion module for PIC-416 C, 16 monitored inputs, digital if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of RCS Audio-Systems PIC-216 C ›VARES-3000‹ expansion module for PIC-416 C, 16 monitored inputs, digital we can offer you a price of 379,15 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
