RCS Audio-Systems PFM-330 D ›VARES-3000‹ fire department wall station, digital

Your rating:
Average rating
product review for RCS Audio-Systems PFM-330 D ›VARES-3000‹ fire department wall station, digital
( 4.6 / 5 ) 88 ratings
RCS Audio-Systems PFM-330 D
This image may differ from the desired article.
RCS Audio-Systems PFM-330 DRCS Audio-Systems PFM-330 D
1.301,50 EUR
( 1.548,78 EUR incl. VAT )
≈ £1,084.15  |  ≈ $1,427.75
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems PFM-330 D ›VARES-3000‹ fire department wall station, digital
Datasheet:file_download Download
Lieske Part No.:102254
Mfg Part No: PFM-330 D
UPC/EAN: 4250458273402
Weight:1.7 kg
Type:PFM-330D
Graduated prices net
From piecesPrice per pieces
21.213,65 EUR
41.125,80 EUR
61.037,95 EUR
8950,10 EUR

Product information for RCS Audio-Systems PFM-330 D:

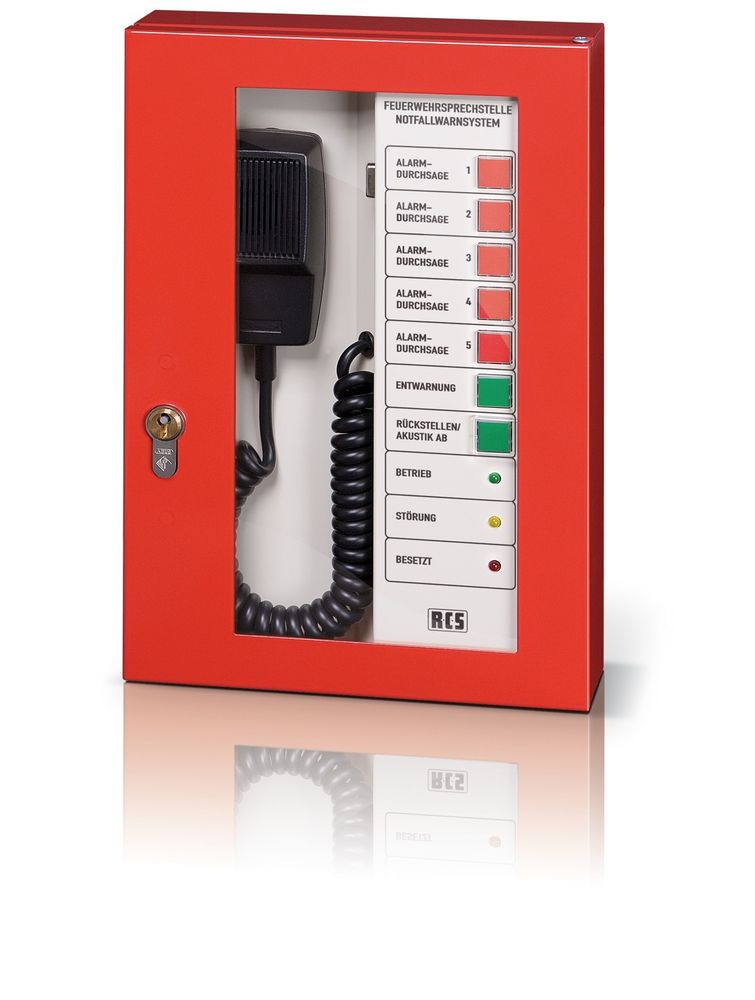

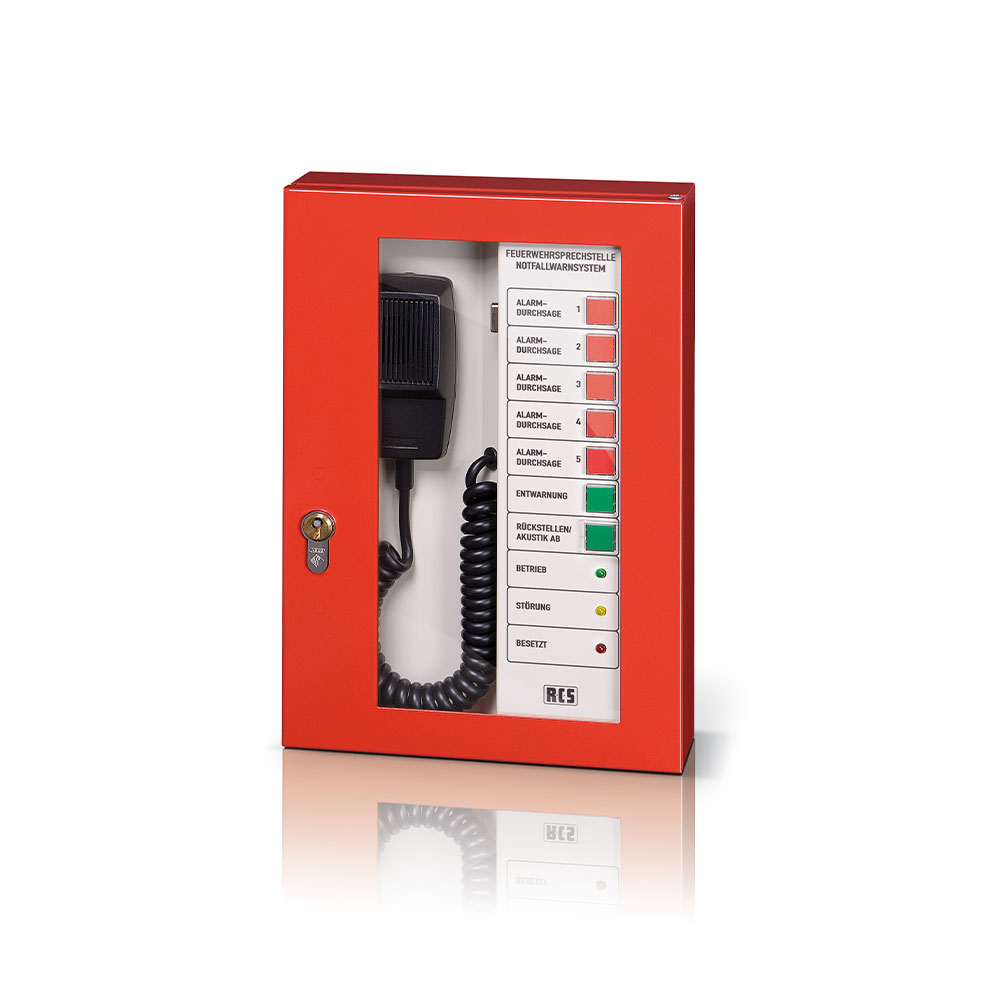

The fire brigade wall station PFM-330 D from RCS Audio-Systems is a digital communication device for emergency situations, used within the VARES-3000 system. It serves as an operating station for rescue forces to trigger targeted alarm announcements in pre-configured zones and coordinate building evacuations. The device is housed in a red, lockable sheet metal housing with a viewing window and complies with the standard ÖNORM F 3033. Electronic monitoring is performed according to VDE 0828 / EN 50849, ensuring the reliability of signal paths and operating elements.

Applications

The PFM-330 D is designed for use in buildings requiring targeted alarm systems, such as hospitals, high-rise buildings, or industrial facilities. The ability to trigger five alarm announcements in freely configurable zones enables precise communication, limiting evacuation to the affected zone. The all-clear announcement and reset function ensure clear signaling of the alarm status. The device is optimized for use by rescue forces, with intuitive operation and clear optical indication of operating states (operation, fault, bus busy) enabling quick response.

Functions and Equipment in Detail

The device features five monitored red illuminated pushbuttons, each triggering an alarm announcement in one of five freely configurable zones. An additional standardized illuminated pushbutton is used for the all-clear announcement, while a covered standardized illuminated pushbutton enables resetting of the active alarm announcement. Optical indication of operating states supports the operator in monitoring the device status. The integrated dynamic handheld microphone with a talk button enables voice transmission, with a preamplifier featuring a gate function suppressing background noise and a compressor improving speech intelligibility. The microphone is monitored via the integrated PMO-400 B module on the main board.

Technology Explained Simply

Power supply is provided via the external bus of the PSS-224C at 24 V DC, ensuring centralized power within the system. The microphone’s polar pattern is cardioid, meaning it primarily picks up sound from the front and better suppresses lateral noise. The frequency range of 300 Hz to 6 kHz covers the relevant range for voice transmission, ensuring clear and understandable communication. Programming and assignment of alarm announcements are performed via the ConfigV3000 software, allowing flexible configuration adapted to specific requirements. Firmware can be updated via an integrated programming interface.

Compatibility and Accessories

The PFM-330 D is part of the VARES-3000 system and works with the text module PMM-132 D of the PSS-224 C. Alarm announcements are retrieved from this module. Compatibility with the PSS-224C is ensured by power supply via the bus and the 10-pin system connector. The interchangeable lock in standard half-cylinder format allows for easy maintenance and replacement.

Mounting and Installation

Mounting the wall station is simple and can be done either surface-mounted or recessed. The robust sheet metal housing with a plexiglass window protects internal components and allows visual inspection of the device. Dimensions are 200 x 300 x 65 mm, allowing the device to fit into standardized wall openings. Installation requires no additional tools or special prerequisites, with connection to the system via the 10-pin system connector.

Operational Advantages

The PFM-330 D provides reliable and targeted alarm signaling, secured by electronic monitoring according to VDE 0828 / EN 50849. Clear optical indication and intuitive operation facilitate use by rescue forces. The ability to freely configure alarm announcements increases system flexibility. The integrated voice amplification with gate and compressor ensures clear and understandable communication, even in noisy environments. The interchangeable lock and simple programming via the ConfigV3000 software reduce maintenance effort and enhance operational safety.

Technical data
System compatibilityVARES-3000
Control elements5 x monitored red illuminated pushbuttons for alarm announcements in 5 freely configurable zones, 1x standard illuminated pushbutton for reset announcement, 1x standard covered illuminated pushbutton for reset
MicrophoneDynamic handheld microphone with talk button
ColourRed
Bus connections10-pin system connector
Directional characteristicKidney
Dimensions (W x H x D)200 x 300 x 65 mm
Frequency range300 Hz - 6 kHz
Current supplyvia external bus from PSS-224C, 24V DC


Product data sheet
Datasheet for RCS Audio-Systems PFM-330 D, EAN: 4250458273402

Questions & answers

What is the delivery time of RCS Audio-Systems PFM-330 D ›VARES-3000‹ fire department wall station, digital?

The article RCS Audio-Systems PFM-330 D ›VARES-3000‹ fire department wall station, digital is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems PFM-330 D to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems PFM-330 D ›VARES-3000‹ fire department wall station, digital always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems PFM-330 D ›VARES-3000‹ fire department wall station, digital if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of RCS Audio-Systems PFM-330 D ›VARES-3000‹ fire department wall station, digital we can offer you a price of 1.213,65 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
