RCS Audio-Systems PFH-485 A ›VARES-3000‹ RS485 hub, 5-channel, digital

Your rating:
Average rating
product review for RCS Audio-Systems PFH-485 A ›VARES-3000‹ RS485 hub, 5-channel, digital
( 4.6 / 5 ) 58 ratings

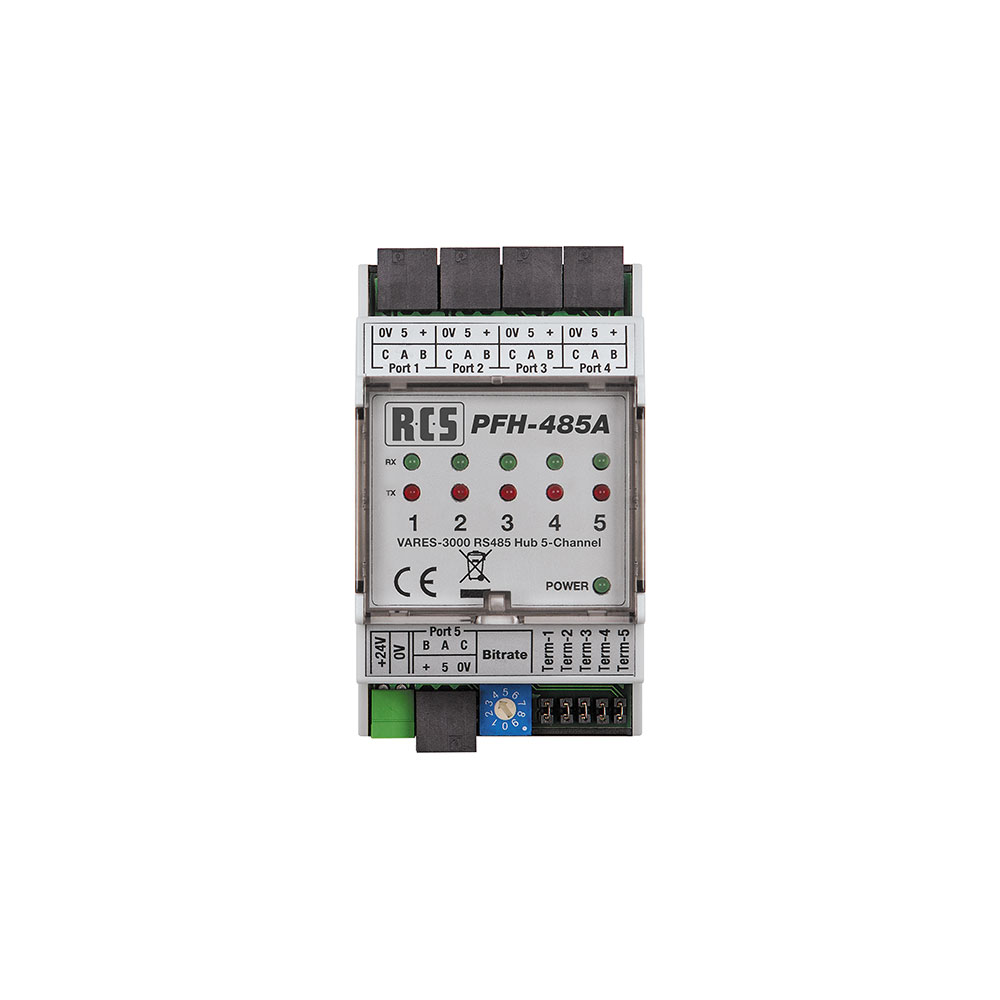

RCS Audio-Systems PFH-485 A
This image may differ from the desired article.
782,80 EUR
( 931,53 EUR incl. VAT )
≈ £652.07  |  ≈ $858.73
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems PFH-485 A ›VARES-3000‹ RS485 hub, 5-channel, digital
Lieske Part No.:102219
Mfg Part No: PFH-485 A
UPC/EAN: 4250458271002
Weight:0.2 kg
Type:PFH-485A
Graduated prices net
From piecesPrice per pieces
3729,96 EUR
6677,12 EUR
9624,28 EUR
12571,44 EUR

Product information for RCS Audio-Systems PFH-485 A:

The RS485 hub 5-channel from manufacturer RCS Audio-Systems, type PFH-485A, is a compact distributor for RS485 bus systems, specifically developed for use in industrial and commercial applications. It enables star-shaped wiring of RS485 buses, making the organisation of complex networks clearer and more efficient. The potential-free design of the hub ensures that no galvanic connections exist between the connected devices, increasing electromagnetic compatibility and operational safety. The design is intended for mounting on a DIN rail and occupies a width of 3TE, making it ideal for use in enclosures and control systems.

Applications

The PFH-485A is used in industrial control systems, commercial building automation, as well as in monitoring and communication networks. In these environments, reliable and structured data transmission over RS485 buses is required, for which the hub functions as a central distribution unit. The star topology simplifies network management and reduces cabling complexity compared to a bus topology.

Functions and Equipment in Detail

The hub features five potential-free RS485 channels, each enabling a separate end-device connection. This configuration allows multiple devices to be connected simultaneously to a central bus without electric potentials between the individual devices being interconnected. Communication status is indicated by green and red LEDs, visually signalling the operational state and possible network errors. This significantly simplifies system diagnosis and maintenance.

Technology Explained Simply

RS485 is a serial interface suitable for data transmission over long distances and in electrically noisy environments. The PFH-485A acts as a distributor, forwarding data flow from the main bus to multiple end devices. The potential-free design means the individual channels are galvanically isolated, increasing electromagnetic compatibility and minimising the risk of voltage differences between devices. Star-shaped wiring enables clear structuring of connections, simplifying fault localisation and maintenance.

Compatibility and Accessories

The hub is part of the VARES-3000 system and can be used within this system environment. Multiple PFH-485A hubs can be operated in parallel on the same bus to increase the number of addressable end devices. Cascading of downstream hubs is also possible, enabling even larger networks. Combination with other components of the VARES-3000 system is intended to create an integrated communication network.

Mounting and Installation

Mounting is done on a DIN rail, with the hub occupying a width of 3TE. Installation follows the included installation manual, which is part of the delivery. The manual describes correct cabling and setup of communication parameters. Star-shaped wiring requires clear assignment of end devices to individual channels, enabling structured network management.

Operational Advantages

Using the PFH-485A enables structured and interference-resistant data transmission in industrial and commercial environments. The potential-free design protects against voltage differences, LEDs facilitate visual monitoring, and the possibility of parallel operation and cascading extends system scalability. The compact design and DIN rail mounting integrate seamlessly into existing enclosure environments.

Scope of Delivery

The scope of delivery includes the RS485 hub 5-channel and the installation manual.

Technical data
System compatibilityVARES-3000
Dimensions (W x H x D)54 x 130 x 60 mm


Questions & answers

What is the delivery time of RCS Audio-Systems PFH-485 A ›VARES-3000‹ RS485 hub, 5-channel, digital?

The article RCS Audio-Systems PFH-485 A ›VARES-3000‹ RS485 hub, 5-channel, digital is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems PFH-485 A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems PFH-485 A ›VARES-3000‹ RS485 hub, 5-channel, digital always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems PFH-485 A ›VARES-3000‹ RS485 hub, 5-channel, digital if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of RCS Audio-Systems PFH-485 A ›VARES-3000‹ RS485 hub, 5-channel, digital we can offer you a price of 729,96 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
