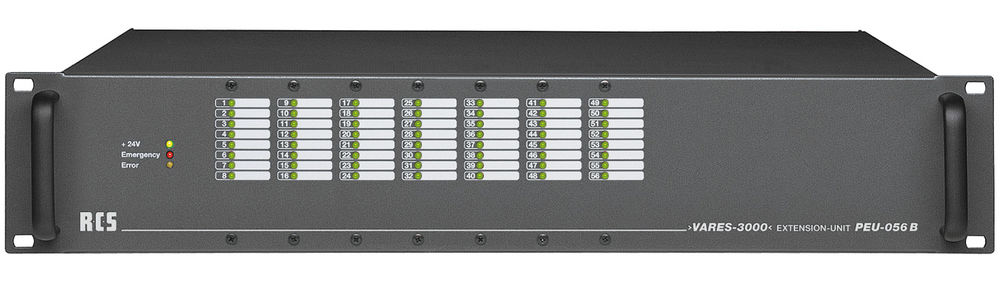

RCS Audio-Systems PEU-056 B PRO-LINE expansion unit for PSS-224 B 2 U, digital content_copy

The PEU-056B digital expansion unit is designed to provide a modular and scalable extension to the PSS-224C control center. Each PEU-056B allows the integration of up to 56 additional loudspeaker circuits or relay contacts and connects directly to the PSS-224C via the PFK-200 linking cable. Up to three PEU-056B units can be connected to a single control center, enabling the management of a total of 224 speaker lines or switching relays.

The base version of the PEU-056B is delivered without relay cards but can be flexibly equipped with up to three cards of type PRC-408C or PRC-508A. These cards meet the requirements of VDE 0828 / EN 60849 and provide monitored, fail-safe relay control—ideal for use in critical applications such as industrial systems, public infrastructure, and large-scale installations.

Power and relay control are supplied directly by the PSS-224C control center, eliminating the need for a separate power source. The modular design ensures that the PEU-056B can be configured precisely to match system needs while maintaining high levels of operational safety and flexibility.

Technical Details:

Model:
– PEU-056B Expansion Unit

Speaker Circuits:

– 8 (expandable up to 56)

Relay Card Compatibility:

– PRC-408C or PRC-508A (VDE 0828 / EN 60849 compliant)

Module Slots:

– 3 slots

Power Supply:

– 24 V DC / max. 750 mA
– Supplied by PSS-224C

Interface / AF Output Level:
– Not available

Dimensions (W x H x D):

– 483 x 89 x 270 mm (2 RU)

Weight:

– 3.2 kg (fully equipped: 5.1 kg)

Connection to Control Center:

– Via PFK-200 cable

Key Features:

– Expandable system with up to 224 speaker circuits per PSS-224C
– Fully modular for custom configurations
– Relay cards with full monitoring according to standards
– Ideal for critical paging and emergency sound systems
Type: PEU-056B
