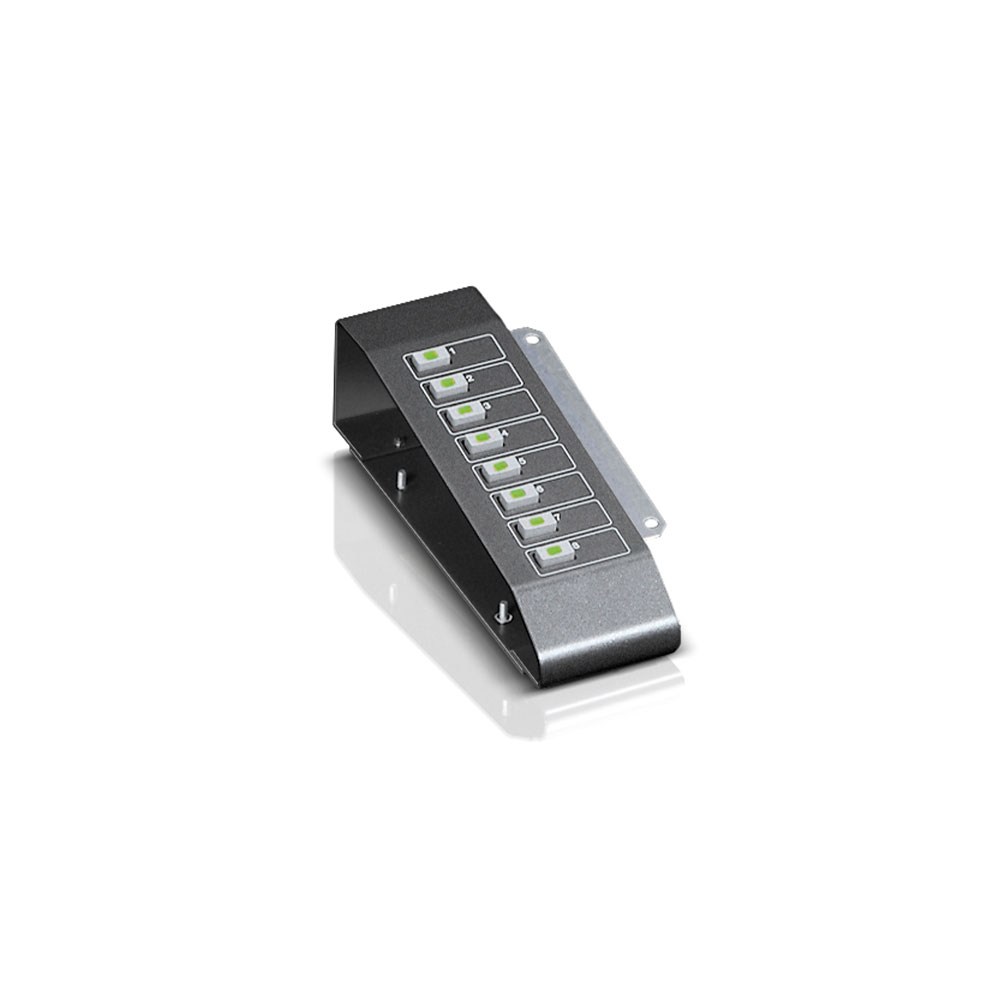

RCS Audio-Systems PEM-008 B PRO-LINE intercom extension with 8 digital keys
|
368,60 EUR |
|||||||||||
|
( 438,63 EUR incl. VAT ) ≈ £308.15 | ≈ $407.30 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 570089 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | PEM-008 B | ||||||||||
| UPC/EAN: | 4250458267241 | ||||||||||
| Weight: | 0.2 kg | ||||||||||
| Type: | PEM-008B | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems PEM-008 B:
Applications
The PEM-008B is designed for public address systems in large buildings such as industrial facilities, warehouses, schools, or administrative buildings. It is particularly suitable for environments requiring detailed zoning and individual control of speaker circuits. The modular expandability allows for step-by-step adaptation of system capacity to growing requirements.
Functions and Equipment in Detail
The 8 buttons are freely programmable and can be configured either for individual zones or for groups of multiple speaker circuits. This enables user-defined control tailored to the specific requirements of the application environment. A special feature is the configuration of buttons as direct buttons, using a monostable relay. This setting is useful for applications requiring direct activation without system control.
Technology Explained Simply
The PEM-008B operates digitally and is part of the VARES-3000 system, developed for professional public address solutions. Control is performed via the PDM-208B speaker station, to which the expansion units are modularly connected. The maximum of seven modules allows for scaling of control capability. Dimensions of 55 mm (width) × 45 mm (height) × 180 mm (depth) are compact, enabling space-saving installation. The buttons are designed for intuitive operation, with programming done via the speaker station.
Compatibility and Accessories
The unit is exclusively compatible with the PDM-208B speaker station. Up to seven PEM-008B modules can be connected to extend control capability to up to 64 speaker circuits. Control is performed via the VARES-3000 system, ensuring consistent system architecture.
Mounting and Installation

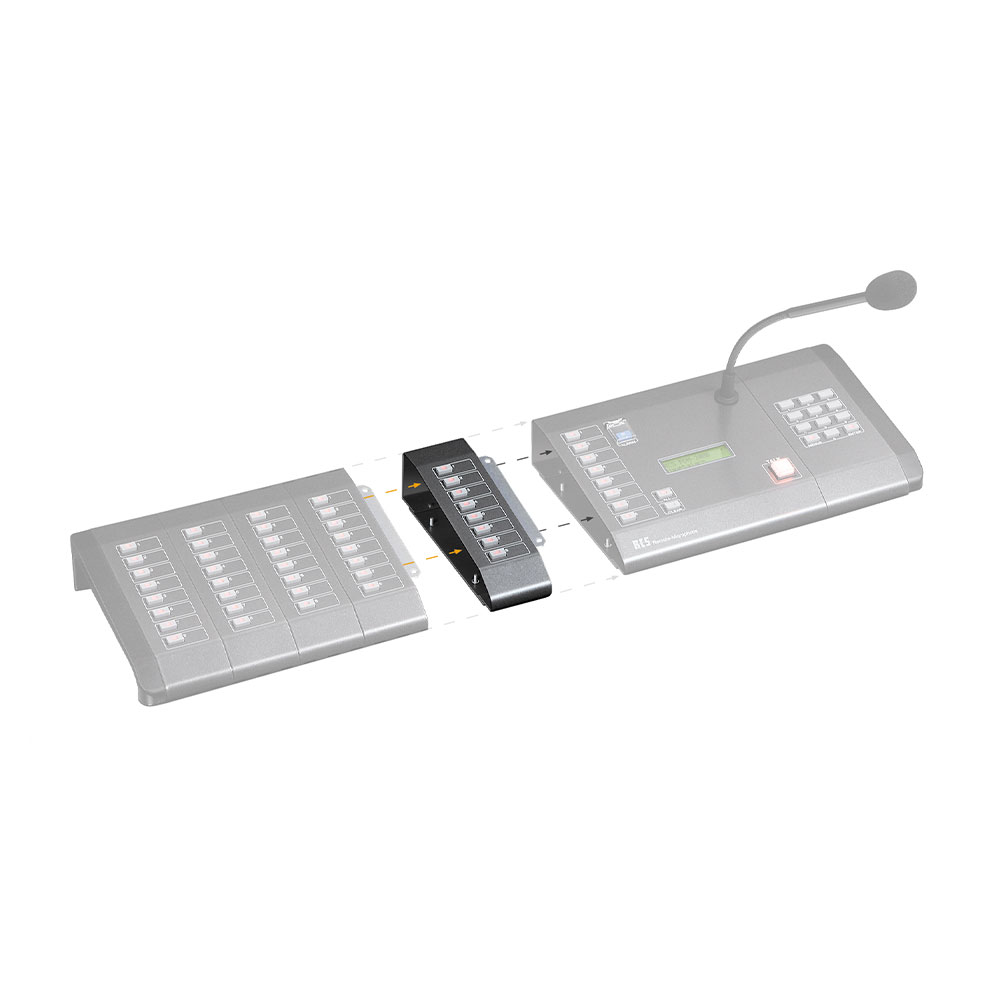

Mounting is done modularly to the PDM-208B speaker station. The unit is physically connected, with detailed mounting instructions included in the delivery. Installation requires no additional tools or components. Button programming is done via the speaker station, with configuration steps described in the manual.
Operational Advantages
The PEM-008B offers high flexibility in controlling speaker circuits. Modular expandability allows step-by-step adaptation to increasing requirements. The freely programmable buttons and direct button function expand application possibilities and enable precise control. Integration into the VARES-3000 system ensures consistent and reliable system performance.
Delivery Contents
The PEM-008B expansion unit is delivered with an installation manual.
System Compatibility
The unit belongs to the VARES-3000 system from RCS Audio-Systems, developed for professional public address systems. Compatibility with the PDM-208B speaker station is mandatory, and the maximum number of expansion units is seven.
| Technical data | |
| Control elements | 8 keys |
| Dimensions (W x H x D) | 55 x 45 x 180 mm |
| System compatibility | VARES-3000 |
