RCS Audio-Systems PBE-385 A VARES-3000 Bus-Extension Slave-Module, for remote components, digital

Your rating:
Average rating
product review for RCS Audio-Systems PBE-385 A VARES-3000 Bus-Extension Slave-Module, for remote components, digital
( 4.5 / 5 ) 72 ratings

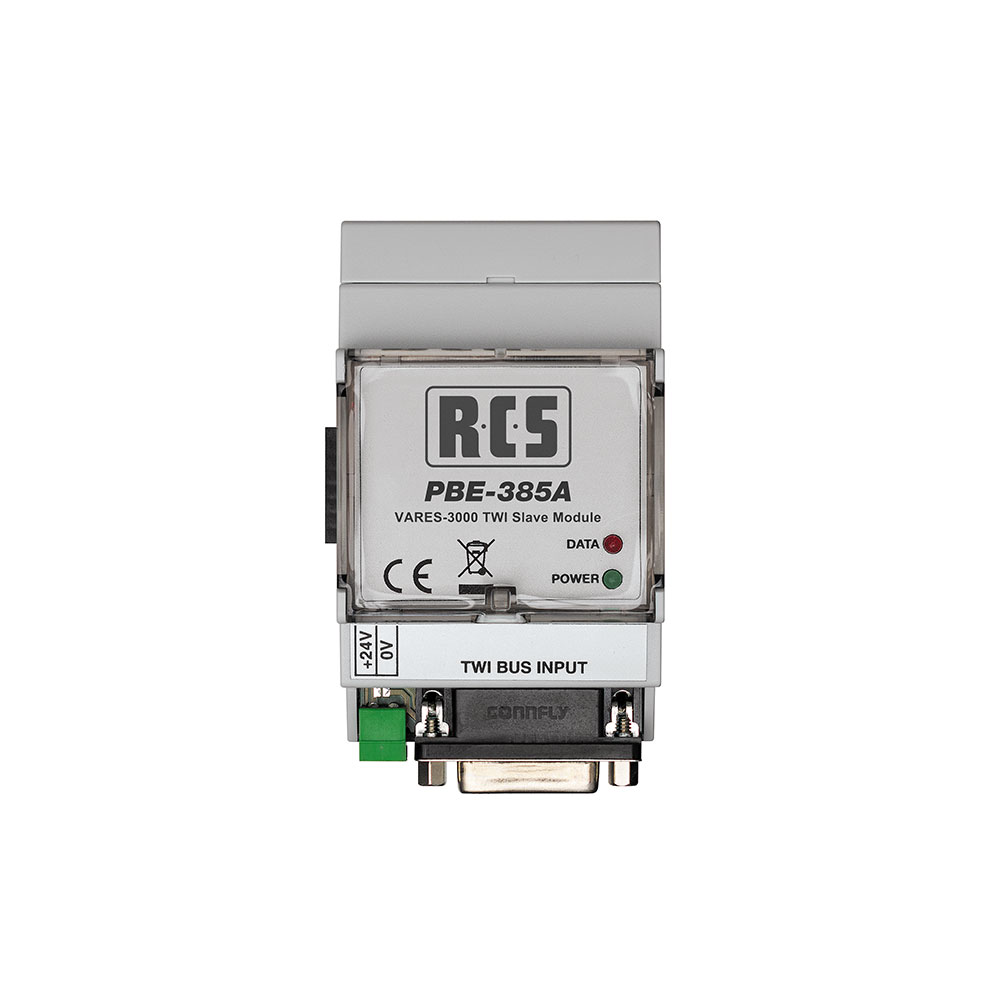

RCS Audio-Systems PBE-385 A
This image may differ from the desired article.
603,25 EUR
( 717,87 EUR incl. VAT )
≈ £504.32  |  ≈ $662.97
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems PBE-385 A VARES-3000 Bus-Extension Slave-Module, for remote components, digital
Lieske Part No.:102209
Mfg Part No: PBE-385 A
UPC/EAN: 4250458270302
Weight:0.2 kg
Type:PBE-385A
Graduated prices net
From piecesPrice per pieces
3562,53 EUR
6521,81 EUR
9481,09 EUR
12440,37 EUR

Product information for RCS Audio-Systems PBE-385 A:

RCS Audio-Systems PBE-385 A is a digital DIN rail module used as a Bus-Extension Slave Module in the VARES-3000 system. It extends the I²C bus from the central control unit PSS-224 C to supply remote components with digital communication. The module functions as a slave unit and enables galvanically isolated extension of the bus system, ensuring electrical isolation between the main system and external modules. This allows additional DIN rail modules such as the PNC-224 A to be connected without interference or voltage differences affecting communication.

Applications

The module is designed for professional applications in sound system technology and control engineering, particularly in systems where multiple modules are distributed over larger distances. It is typically used in emergency warning systems, where reliable and interference-free data transmission between central control and peripheral units is required. Its use within the VARES-3000 system architecture enables flexible scaling of the installation without requiring direct wiring connections to the main control unit.

Functions and Equipment in Detail

The PBE-385 A serves as a slave module in the I²C bus system, with communication taking place via a digital protocol. It connects to the central unit via a connection cable, with a maximum cable length of 20 metres. This length allows spatial separation between the main control and connected modules without degrading signal quality. The galvanically isolated connection protects the system from voltage spikes and potential differences that may occur due to differing ground potentials in different rooms or buildings.

Technology Explained Simply

The I²C bus (Inter-Integrated Circuit) is a serial communication protocol commonly used in control systems to connect multiple components via a shared pair of wires. The PBE-385 A acts as an extension unit, extending the bus over a longer distance. The galvanic isolation prevents electrical interference and voltage differences between connected devices. This is particularly important in larger installations where the control unit and peripheral modules operate in different electrical networks.

Compatibility and Accessories

The module is specifically developed for use in the VARES-3000 system and requires the master module PBE-185 A, which must be installed in the PSS-224 C. It is compatible with other DIN rail modules such as the PNC-224 A, which can be addressed via the extended bus system. Connection is made via a separate cable, with a maximum length of 20 metres. The exact cable length depends on the installation and electrical conditions, but the system specifies a maximum of 20 metres.

Mounting and Installation

The module is designed as a DIN rail module and is mounted in a standard DIN rail. Installation involves inserting the module into the rail and connecting it via cable to the master module PBE-185 A. The connection cables must be routed according to system requirements, ensuring the maximum length of 20 metres is not exceeded. No special tools are required for installation, but correct wiring and compliance with electrical standards are essential for system functionality.

Operational Advantages

Using the PBE-385 A enables a flexible and scalable system architecture, allowing additional modules to be connected at remote locations without direct wiring to the main control unit. The galvanically isolated transmission enhances system stability and reliability, especially in environments with differing ground potentials. The maximum cable length of 20 metres provides sufficient flexibility for many applications in building and emergency technology.

Dimensions

The module measures 55 mm (width) × 60 mm (height) × 90 mm (depth), making it compact enough to fit in a standard DIN rail without occupying excessive space. Its compact design allows dense mounting in enclosures and control cabinets.

System Membership

The module belongs to the VARES-3000 system by RCS Audio-Systems and is part of a modular control architecture developed for professional applications in sound system technology and emergency warning systems. Integration into existing systems is achieved via the PSS-224 C and the required master module PBE-185 A.

Technical data
System compatibilityVARES-3000
Dimensions (W x H x D)55 x 60 x 90 mm


Questions & answers

What is the delivery time of RCS Audio-Systems PBE-385 A VARES-3000 Bus-Extension Slave-Module, for remote components, digital?

The article RCS Audio-Systems PBE-385 A VARES-3000 Bus-Extension Slave-Module, for remote components, digital is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems PBE-385 A to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems PBE-385 A VARES-3000 Bus-Extension Slave-Module, for remote components, digital always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems PBE-385 A VARES-3000 Bus-Extension Slave-Module, for remote components, digital if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of RCS Audio-Systems PBE-385 A VARES-3000 Bus-Extension Slave-Module, for remote components, digital we can offer you a price of 562,53 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
