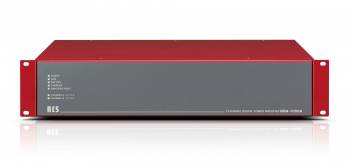

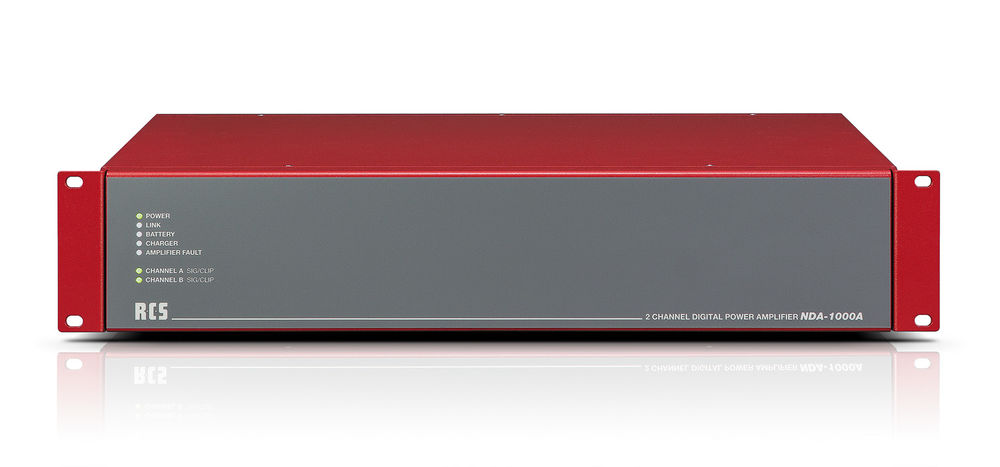

RCS Audio-Systems NDA-1000 A ›VARES-2000‹ Network Digital Power Amplifier, 2x 500?W, (with emergency power management)
|
3.781,00 EUR |
|||||||||||
|
( 4.499,39 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927612 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | NDA-1000 A | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems NDA-1000 A:
With its fully digital system architecture, the NDA-1000 A offers outstanding efficiency and audio clarity. It features two independent output channels delivering 500 W RMS each at 100 V – ideal for large-scale voice evacuation and announcement systems. The unit includes three redundant power supplies to guarantee maximum operational reliability.
An integrated battery charger with temperature sensor and EN 54-4 compliance enables operation with shared battery packs across multiple amplifiers. Additionally, the unit provides a 24 V DC auxiliary output for powering external components.
The amplifier monitors mains power faults, battery status (including internal resistance checks), and all audio output channels. Via AMP-Link protocol, it seamlessly integrates with the VARES-2000 system for full remote control and diagnostics.
Technical Specifications:
General:
- Product type: Digital network power amplifier
- Standards: Compliant with EN 54-16 and EN 54-4
- Housing: 48,3 cm ( 19 inch ) rack-mount, 2U
- Weight: approx. 16.5 kg
- Dimensions (W x H x D): 483 x 88.5 x 350 mm
Audio:
- Output power: 2x 720 W (program) / 2x 500 W (RMS)
- Output voltage: 100 V
- Frequency range: 3 – 35,000 Hz (–3 dB)
- Signal-to-noise ratio: > 90 dB
- Total harmonic distortion (1 kHz): < 0.1 %
- Crosstalk (20 Hz – 20 kHz): < –100 dB
- Input sensitivity: max. 775 mV / 0 dBu (balanced)
- Inputs: 2x BGM, 1x AUX (balanced analog)
Power Supply:
- Max. power consumption: 1,350 W
- Inrush current: max. 6 A @ 230 V AC
- DC current consumption: max. 45 A @ 24 V DC
- Idle consumption: 24 W active / 0.9 W standby
- Idle current (DC): 1 A active / 34 mA standby
- Efficiency: 89 % @ 230 V AC / 93 % @ 24 V DC
Emergency Power & Charging:
- Charging voltage: max. 27.9 V DC
- Charging current: max. 4 A
- DC output for external devices: max. 60 W / 2 A
- Battery connection for shared backup power across multiple amplifiers
Indicators & Interfaces:
- Status indicators: Power, Link, Battery, Charger, Channel A/B SIG/CLIP faults
- Network ports: 2x global AMP-Link connections
