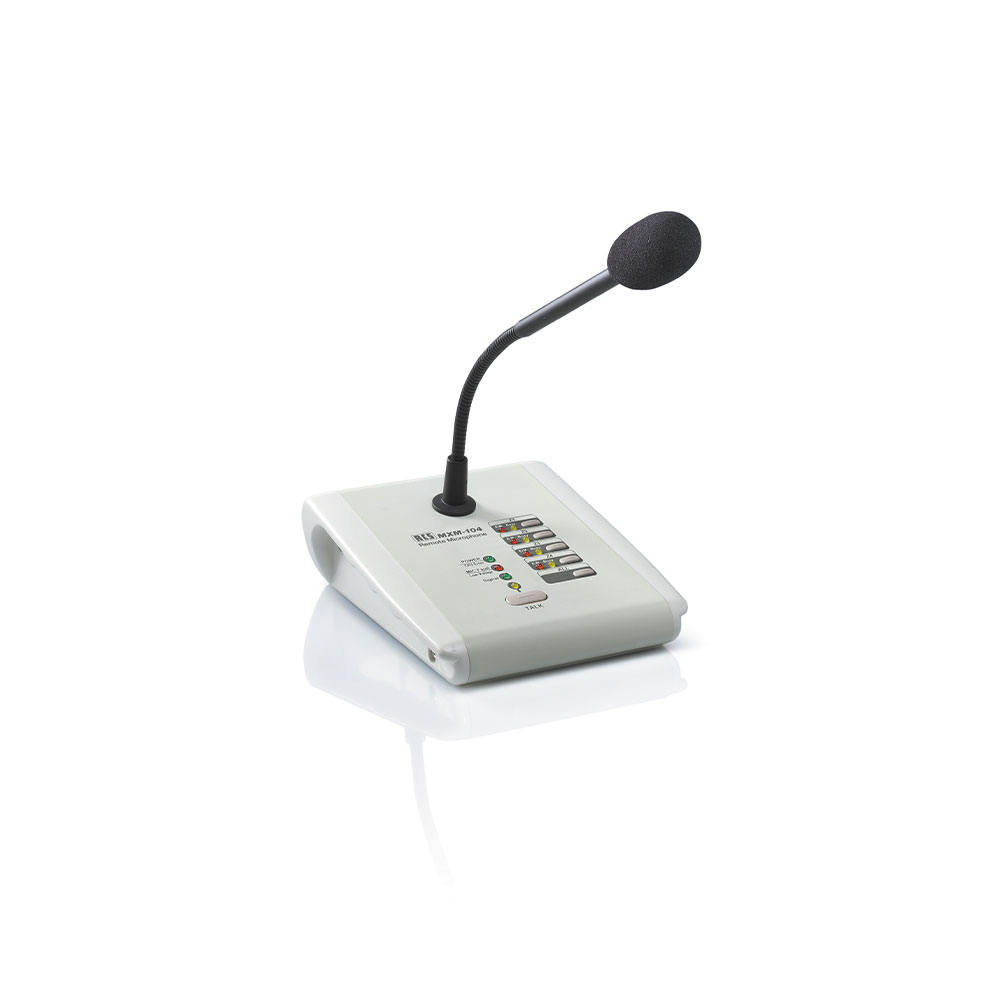

RCS Audio-Systems MXM-104 WO Digital microphone station, like MXM-104, but without RR-40 interface

Your rating:
Average rating
product review for RCS Audio-Systems MXM-104 WO Digital microphone station, like MXM-104, but without RR-40 interface
( 4.5 / 5 ) 32 ratings
RCS Audio-Systems MXM-104 WO
This image may differ from the desired article.
RCS Audio-Systems MXM-104 WORCS Audio-Systems MXM-104 WO
245,10 EUR
( 291,67 EUR incl. VAT )
≈ £204.90  |  ≈ $270.84
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems MXM-104 WO Digital microphone station, like MXM-104, but without RR-40 interface
Lieske Part No.:178673
Mfg Part No: MXM-104 WO
UPC/EAN: 4250458262741
Weight:0.2 kg
Type:MXM-104WO
Graduated prices net
From piecesPrice per pieces
5228,56 EUR
10212,01 EUR
15195,47 EUR
20178,92 EUR

Product information for RCS Audio-Systems MXM-104 WO:

The digital microphone station MXM-104WO from RCS Audio-Systems is a device for targeted selection of up to four speaker zones and is specifically designed for use in public address and alarm systems. It enables zone-based voice communication, suitable for safety-critical areas such as public buildings, industrial facilities, or educational institutions. Operation is performed via a button control, allowing direct selection of each zone. Status indication is provided by LED indicators, which display the status of individual zones, talk readiness (Talk), signal status, power supply (Power), any microphone faults, and occupancy indication in real time. This feedback ensures high operational reliability and enables precise control over the communication status.

Applications

The station is designed for use in alarm and public address systems, where fast and targeted communication across multiple zones is required. It is particularly suitable for building communication systems where zone-specific addressing is advantageous, such as in schools, hospitals, or administrative buildings. The robust design is intended for continuous operation and supports use in safety-critical applications.

Functions and Equipment in Detail

The station features intuitive operation with direct button selection per zone. The LED status indicators provide clear visual feedback on the operating status. The display includes activity of the four speaker zones, occupancy indication, talk readiness (Talk), signal status, power supply (Power), and microphone fault. These functions allow for quick identification of operating conditions and faults, simplifying maintenance and operation.

Technology Explained Simply

The directional characteristic of the integrated microphone is cardioid, meaning the microphone primarily picks up sound from a specific direction and better suppresses noise from the sides and rear. This improves speech quality and reduces background noise. The station is connected via an 8-pin data cable with RJ-45 connectors, included in the delivery. The cable length is 3 meters. The device dimensions are 135 mm (width) × 380 mm (height) × 145 mm (depth).

Compatibility and Accessories

The MXM-104WO is specifically designed for systems that do not require an extended feedback function via the RR-40 interface. This interface is therefore not present. The device is suitable for use in existing digital communication systems that support zone-based selection via a digital interface.

Mounting and Installation

Mounting depends on the installation location, although the sources do not specify any particular mounting instructions or housing types (e.g., desktop device, wall mounting). Installation is performed using the included 3-m data cable with RJ-45 connectors. The connection is made via an 8-pin interface, intended for digital communication with the associated system.

Operational Advantages

The station offers clear and reliable operation with immediate visual feedback on the operating status. The cardioid directional characteristic of the microphone ensures good speech pickup with minimal interference. The robust design is intended for continuous operation in safety-critical applications. The integrated LED display for all relevant status information enables quick fault diagnosis and increases operational safety.

Delivery Contents

The delivery includes the MXM-104WO device and a 3-m data cable (8-pin) with RJ-45 connectors.

Technical data
Dimensions (W x H x D)135 x 380 x 145 mm
IndicationLED status indicators for 4x speaker zones, occupied indicator, power, signal, talk, and microphone interference
Directional characteristicKidney
Scope of delivery3 m data cable (8-pin) with RJ-45 connectors


Questions & answers

What is the delivery time of RCS Audio-Systems MXM-104 WO Digital microphone station, like MXM-104, but without RR-40 interface?

The article RCS Audio-Systems MXM-104 WO Digital microphone station, like MXM-104, but without RR-40 interface is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems MXM-104 WO to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems MXM-104 WO Digital microphone station, like MXM-104, but without RR-40 interface always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems MXM-104 WO Digital microphone station, like MXM-104, but without RR-40 interface if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of RCS Audio-Systems MXM-104 WO Digital microphone station, like MXM-104, but without RR-40 interface we can offer you a price of 228,56 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
