RCS Audio-Systems MU-307A Monitor control panel, 2 U content_copy

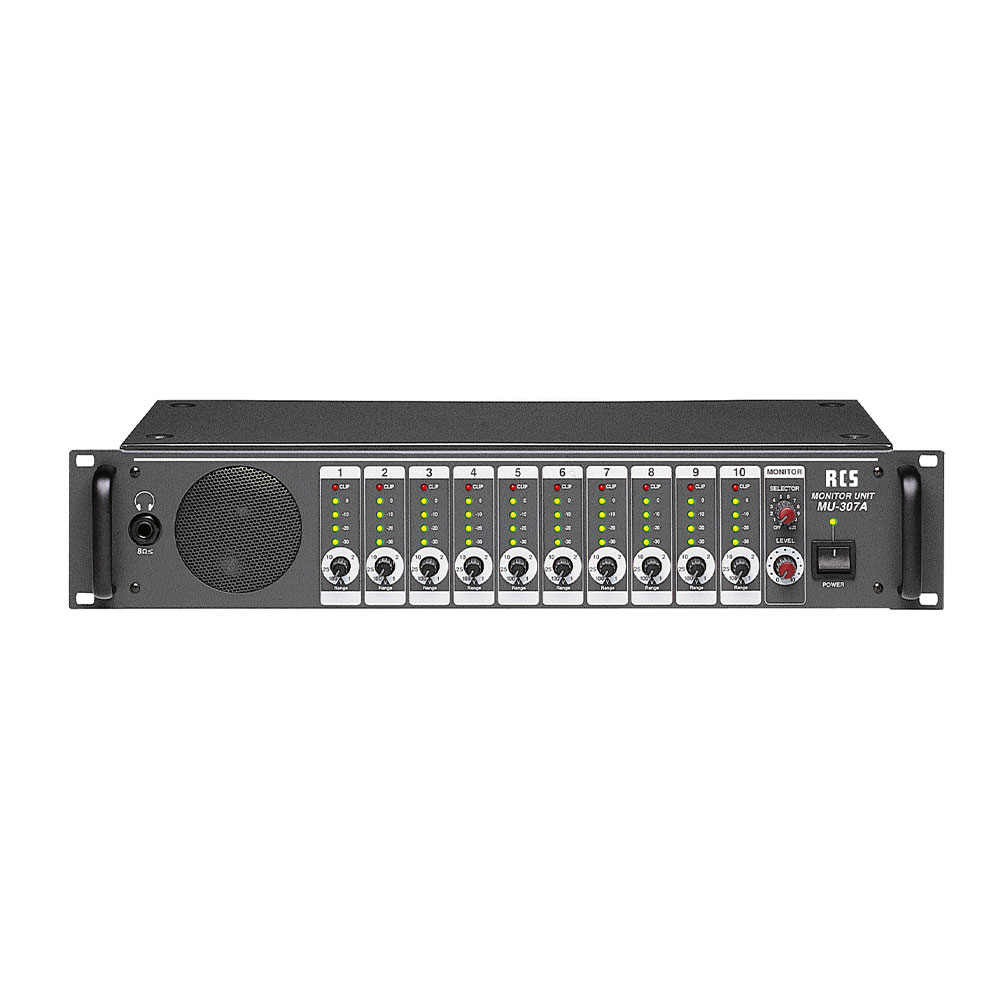

The MU-307A monitor control unit from RCS Audio-Systems is an active device for acoustic and visual monitoring of amplifiers as well as for transmitting preamplifier outputs. It is integrated in a stable 19˝ housing with a height of 2 U (rack units) and is suitable for operation in 100-V line systems (ELA operation) as well as in low-impedance applications. The device front features a high-quality broadband speaker and a headphone output, enabling continuous monitoring of audio signals. Both outputs are equipped with individual volume controls, allowing levels to be adjusted individually. Line volume adjustment is performed via rotary controls on the front, while signal level indication is provided by multi-coloured LED strips.

Applications
This device is designed for professional applications in sound reinforcement systems where continuous monitoring of audio signals is required. It is used in rooms where multiple amplifiers or preamplifiers are operated in parallel, for example in event technology, churches, schools or public facilities. The ability to monitor up to 10 programs individually makes it particularly suitable for systems with multiple channels or program lines.

Functions and Equipment in Detail
Monitoring is performed via 10 separate channels, which can be selected using a multi-stage selector switch. Each channel features a 5-segment LED level indicator, visually displaying the signal level. The input voltage for each of the 10 monitoring inputs can be continuously adjusted via a special rotary control on the front between 1 V and 100 V, allowing optimal adaptation of signals from different sources. Additionally, an AUX input is available, which is balanced (symmetrical), with an impedance of 10 kOhm and a nominal level of 0 dB.

Technology Explained Simply
The integrated broadband speaker has a power rating of 2 W and is equipped with its own volume control. The headphone output delivers a maximum power of 1.0 W at a minimum impedance of 8 Ohm and also features a volume control. The frequency response curve is better than -3 dB in the range from 100 Hz to 20 kHz, enabling clear reproduction of speech and music across the entire audible range. Power supply is either via AC voltage at 120 V, 220 V, 230 V, or 240 V (50–60 Hz) or via DC voltage at 24 V, allowing operation even during power failure using backup power supply. The maximum power consumption is 12 W.

Compatibility and Accessories
The device is compatible with 100-V line systems and low-impedance installations. The inputs are designed to receive signals from amplifiers and preamplifiers.

Mounting and Installation

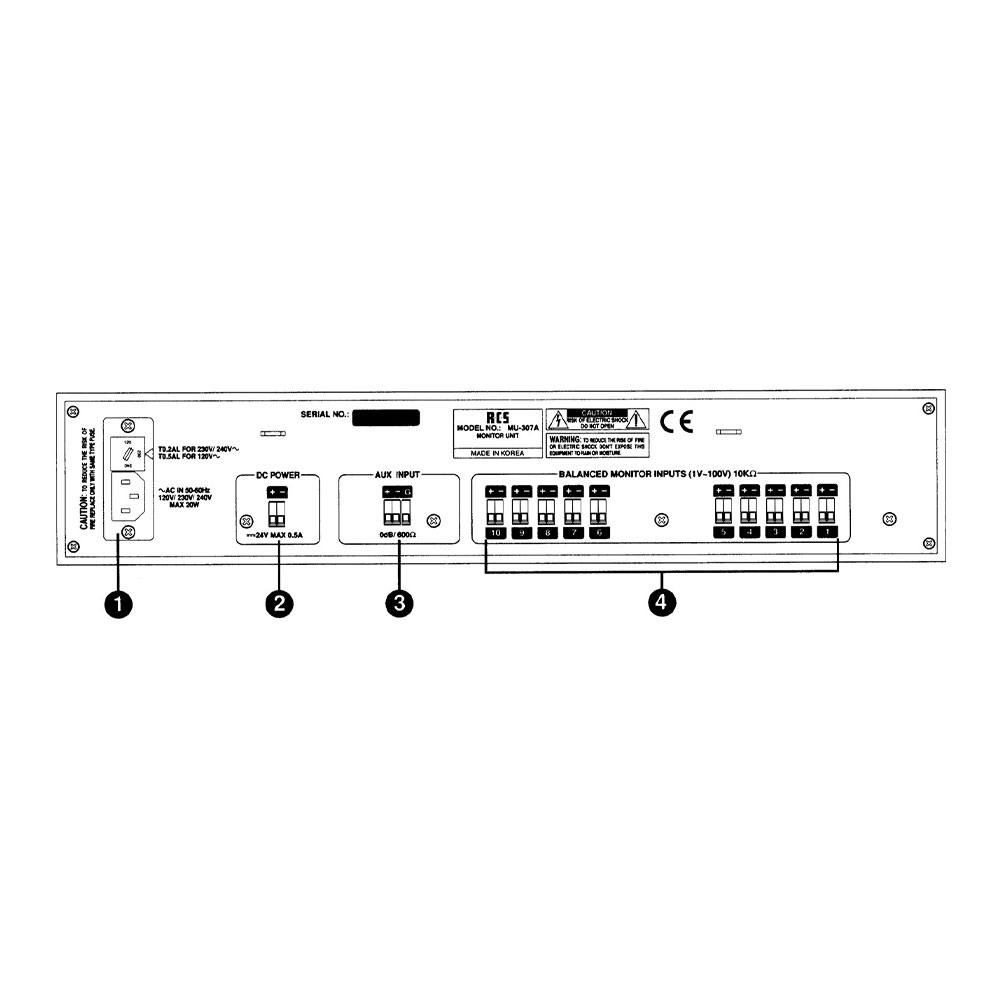

The MU-307A monitor control unit is designed for installation in standard 19˝ racks. Dimensions are 483 mm (width) × 88 mm (height) × 200 mm (depth). Mounting is performed using the integrated mounting holes in the housing. Connections on the rear are clearly labelled, enabling easy wiring. The device front is designed for operation by skilled personnel, with clearly visible controls and indicators.

Operational Advantages
The continuous adjustment of input voltage and volume for speaker and headphones allows precise adaptation to different signal sources. The visual level indication using LED strips provides quick and reliable signal monitoring. The dual power supply (AC/DC) increases operational reliability, especially in critical applications where interruption of power supply must be avoided. The robust construction and clear operating guidance ensure reliable use in professional environments.

General
Speaker	Broadband chassis, 2 W with volume control
Headphone output	max. 1.0 W, min. 8 Ohm, with volume control
Input voltage	1 V – 100 V (continuous)
AUX input	0 dB, 10 kOhm, symmetrical
Monitoring channels	10, individually switchable
Power consumption	max. 12 W
Power supply	AC 120 V, 220 V, 230 V, 240 V (50–60 Hz), DC 24 V
Frequency response	better than -3 dB (100 Hz – 20 kHz)
Dimensions	483 x 88 x 200 mm

---
