RCS Audio-Systems LC-610 Speaker chassis, 10 W, 8 Ohm

Your rating:
Average rating
product review for RCS Audio-Systems LC-610 Speaker chassis, 10 W, 8 Ohm
( 4.5 / 5 ) 85 ratings

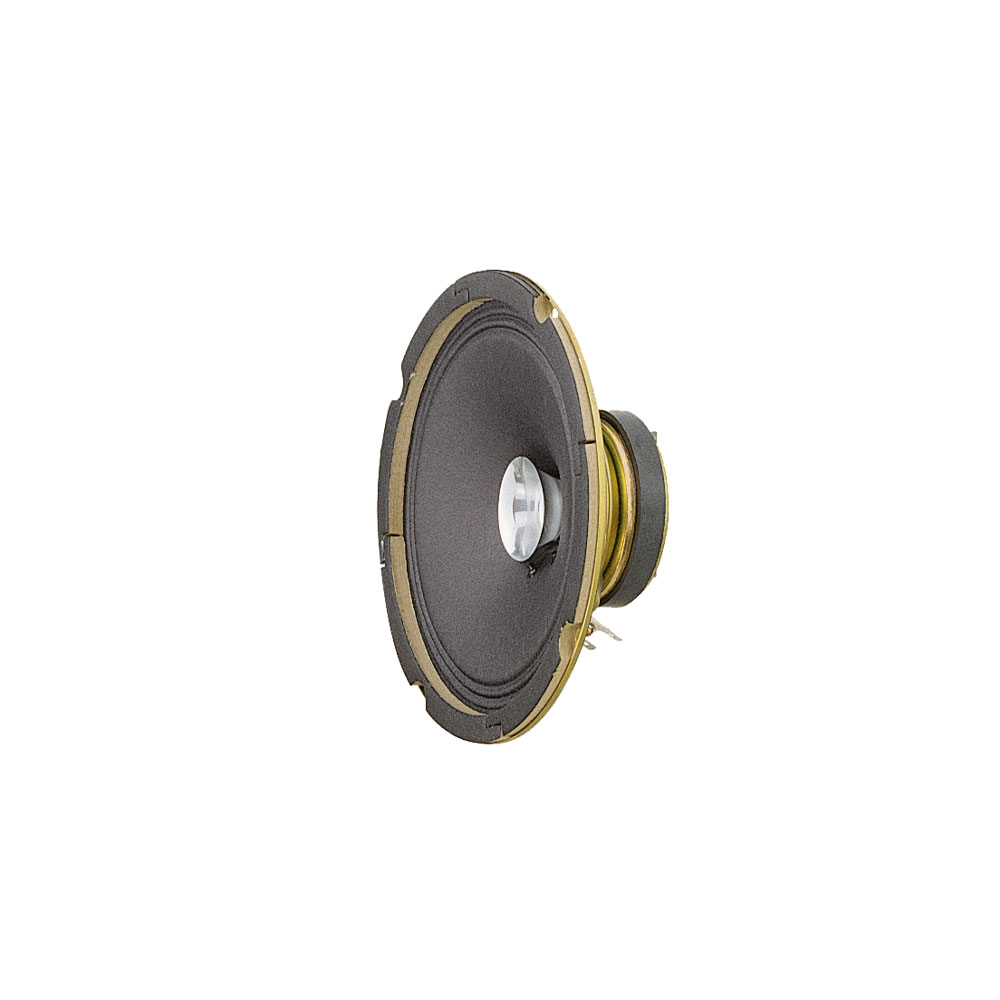

RCS Audio-Systems LC-610
This image may differ from the desired article.
22,80 EUR
( 27,13 EUR incl. VAT )
≈ £18.99  |  ≈ $25.01
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems LC-610 Speaker chassis, 10 W, 8 Ohm
Datasheet:file_download Download
Lieske Part No.:206521
Mfg Part No: LC-610
UPC/EAN: 4250458233420
Weight:0.2 kg
Graduated prices net
From piecesPrice per pieces
1521,26 EUR
3019,72 EUR
7018,18 EUR
10016,64 EUR

Product information for RCS Audio-Systems LC-610:

The LC-610 speaker chassis from RCS Audio-Systems is a wideband speaker element designed for use in ELA systems and professional sound reinforcement applications. It features high mechanical stability and sound quality, based on years of experience in chassis development. The chassis is particularly suitable for systems requiring clear speech intelligibility and clean music reproduction.

Wideband reproduction for speech and music
The LC-610 covers a frequency range of 80 to 18,000 Hz, enabling comprehensive sound reproduction from deep bass to high treble frequencies. This bandwidth is especially advantageous for applications such as paging systems, where clear and intelligible speech transmission is paramount, but also for music reproduction in professional installations. The rated power handling is 10 W (program power) or 15 W (music power), providing sufficient power density for use in in-ceiling or in-wall speakers and integrated systems.

High efficiency and shallow mounting depth
With a sound pressure level of 92 dB at 1 W and 1 m distance, the chassis offers high efficiency, making it suitable for power-saving systems with wide radiation coverage. The mounting depth is 55 mm, enabling compact integration into wall- or ceiling-mounted speakers and equipment combinations. The outer diameter of the basket is 165 mm, allowing the chassis to be integrated into standard enclosures and mounting frames.

Robust construction and materials
The chassis features a robust metal chassis, ensuring high mechanical stability and long service life. The total magnet weight is 540 g, with the magnet assembly itself weighing 150 g. The magnet dimensions are 70 mm × 32 mm × 10 mm, indicating a compact and efficient magnet design. The nominal impedance is 8 Ohm, enabling standard matching to amplifiers and cabling.

Application areas and system integration
The LC-610 is ideal for use in ELA systems, paging systems, sound reinforcement systems, and OEM integrations. Its compact design and high power density make it a versatile component in professional audio installations. It is suitable for both stationary in-wall or in-ceiling solutions and mobile speaker systems, where space and power density are critical factors.

Scope of delivery
The scope of delivery includes 1x speaker chassis LC-610.

Technical data
Sound pressure level (SPL) 1 W/1 m92 dB
Base impedance8 Ohm
Total weight (magnet)540 g (150 g)
Frequency range80 - 18.000 Hz
Magnet dimensions70 x 32 x 10 mm
Rated load capacity (program)10 (15) W
Height (installation depth)55 mm
Basket outer Ø165 mm


Product data sheet
Datasheet for RCS Audio-Systems LC-610, EAN: 4250458233420

Questions & answers

What is the delivery time of RCS Audio-Systems LC-610 Speaker chassis, 10 W, 8 Ohm?

The article RCS Audio-Systems LC-610 Speaker chassis, 10 W, 8 Ohm is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems LC-610 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems LC-610 Speaker chassis, 10 W, 8 Ohm always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems LC-610 Speaker chassis, 10 W, 8 Ohm if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 15 pieces of RCS Audio-Systems LC-610 Speaker chassis, 10 W, 8 Ohm we can offer you a price of 21,26 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
