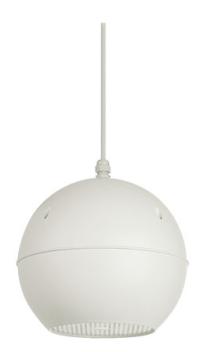

RCS Audio-Systems KL-520 Spherical speaker, 20 (40) W, white, with 100V transformer
|
83,60 EUR |
|||||||||||
|
( 99,48 EUR incl. VAT ) ≈ £69.89 | ≈ $92.38 plus delivery charges: 55,00 € |
|||||||||||
| On order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 573842 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | KL-520 | ||||||||||
| Weight: | 2.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems KL-520:
Applications
The KL-520 is particularly suitable for applications in large indoor spaces such as halls, shopping centres, schools, hospitals, or administrative buildings, where uniform sound coverage over large areas is required. The suspended mounting enables optimal sound distribution, especially in rooms with high ceilings. The theft-secure mounting method protects the loudspeaker against unauthorized removal, making it suitable for public or security-sensitive areas as well.
Functions and Equipment in Detail
The loudspeaker is equipped with an integrated transformer designed for 100 V and 70 V line systems. This allows connection to standard amplifier systems in professional environments. The transformer terminals are configured for different power levels: 1/1, 1/2, and 1/4 of the rated power, with the cable conductors clearly marked to ensure easy and error-free installation. Additionally, the loudspeaker can be connected in low-impedance mode (8 Ohm), enabling flexible integration into various system configurations.
Technology Explained Simply
The rated power is 20 W (40 W music power), providing sufficient loudness for medium-sized to large rooms. The frequency range of 140 Hz to 14,500 Hz covers the relevant range for speech and music. The sound pressure level of 95.5 dB at 1 W/1 m indicates the loudspeaker’s efficiency, while the maximum sound pressure level of 109 dB (at 1.5 kHz) describes its peak performance under realistic conditions. The radiation characteristic is frequency-dependent: at 1 kHz, the radiation angle is 180°, at 4 kHz it is 50°, and at 8 kHz it is 30°, enabling targeted sound distribution. The suspension can be up to 5 m long, allowing flexible placement even in large rooms.
Compatibility and Accessories
The KL-520 is compatible with 100 V and 70 V line systems, which are common in professional sound systems. The integrated 8-Ohm connection option also allows direct connection to low-impedance amplifiers. The cable conductors are marked to ensure correct assignment of power levels.
Mounting and Installation
Mounting is suspended, with a maximum suspension length of 5 m. The theft-secure mounting method prevents unauthorized removal of the loudspeaker. Installation requires no special tools or additional components beyond those already integrated into the loudspeaker. The surface is paintable, allowing adaptation to room design.
Advantages in Operation
The KL-520 provides reliable and uniform sound coverage over large areas. The splash-proof design increases operational safety in humid environments. The flexible connection options for 100 V, 70 V, or 8 Ohm enable integration into existing systems. The theft-secure mounting and paintable surface enhance adaptability to various application scenarios. The radiation characteristic ensures targeted sound distribution, achieving optimal listening quality.
| General | |
| Nominal power | 20 W |
| Music power | 40 W |
| Transformer connection | 100 V and 70 V |
| Power ratings | 1/1, 1/2, 1/4 |
| Low-impedance connection | 8 Ohm |
| Frequency range | 140 – 14.500 Hz |
| Sound pressure level at 1W/1m | 95,5 dB |
| Maximum sound pressure level | 109 dB |
| Beam angle at 1 kHz | 180 ° |
| Beam angle at 4 kHz | 50 ° |
| Beam angle at 8 kHz | 30 ° |
| Speaker diameter | 125 mm |
| Diameter housing | 184,5 mm |
| Height of housing | 162,5 mm |
| Colour | White |
| Degree of protection | splash-proof |
| Mounting method | suspended, anti-theft |
| Maximum drop length | 5 m |
Questions & answers
What is the delivery time of RCS Audio-Systems KL-520 Spherical speaker, 20 (40) W, white, with 100V transformer?
The article RCS Audio-Systems KL-520 Spherical speaker, 20 (40) W, white, with 100V transformer is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems KL-520 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you RCS Audio-Systems KL-520 Spherical speaker, 20 (40) W, white, with 100V transformer always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems KL-520 Spherical speaker, 20 (40) W, white, with 100V transformer if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of RCS Audio-Systems KL-520 Spherical speaker, 20 (40) W, white, with 100V transformer we can offer you a price of 77,96 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
