RCS Audio-Systems KL-200 W Spherical speaker, 40/20 W, 100 V, 2-way system, white

Your rating:
Average rating
product review for RCS Audio-Systems KL-200 W Spherical speaker, 40/20 W, 100 V, 2-way system, white
( 4.5 / 5 ) 151 ratings

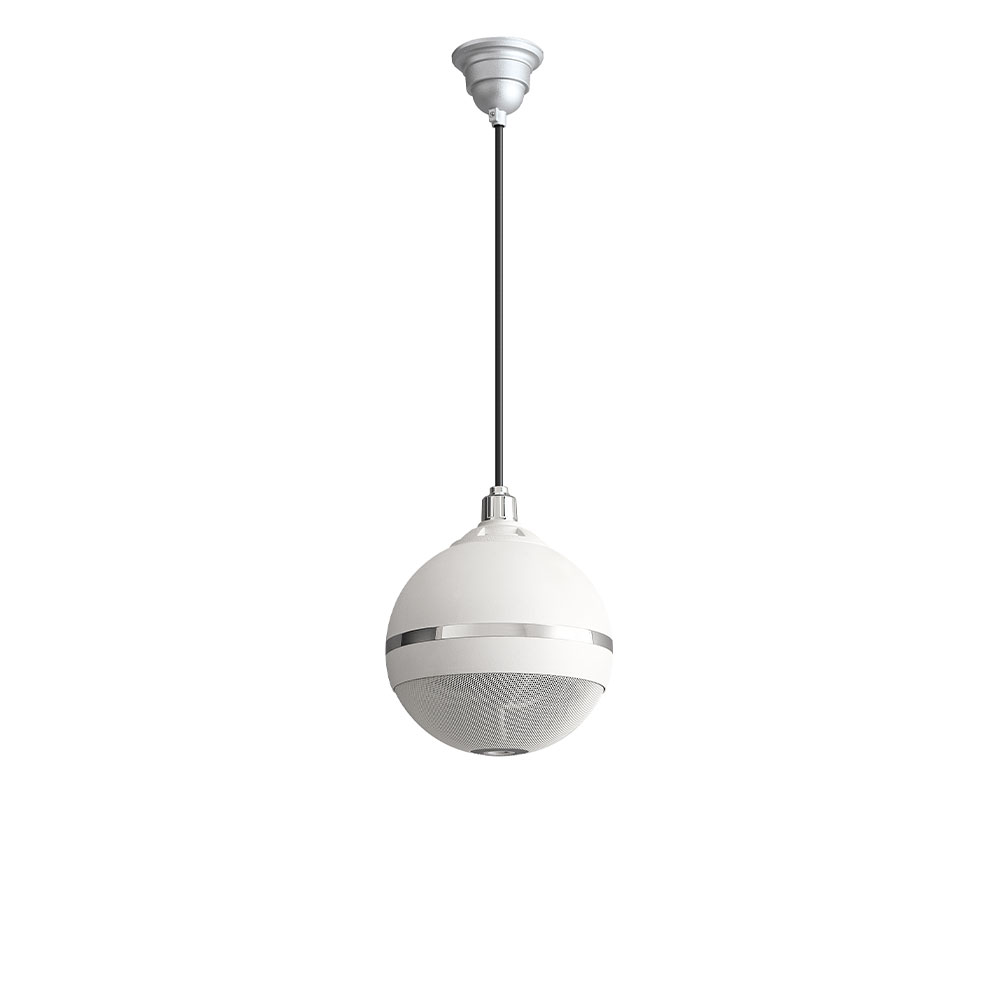

RCS Audio-Systems KL-200 W
This image may differ from the desired article.
140,60 EUR
( 167,31 EUR incl. VAT )
≈ £117.54  |  ≈ $155.36
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems KL-200 W Spherical speaker, 40/20 W, 100 V, 2-way system, white
Datasheet:file_download Download
Lieske Part No.:352717
Mfg Part No: KL-200 W
UPC/EAN: 4250458266251
Weight:1.8 kg
Type:KL-200W
Graduated prices net
From piecesPrice per pieces
5131,11 EUR
10121,62 EUR
15112,13 EUR
20102,64 EUR

Product information for RCS Audio-Systems KL-200 W:

The KL-200 W is a decorative spherical loudspeaker from RCS Audio-Systems, specifically designed for architecturally demanding indoor spaces with high ceilings. It is ideally suited for use in halls, foyers, retail spaces, atriums, or modern work environments, where aesthetic integration into room design and at the same time clear, even sound radiation are required. The device features a 2-way coaxial chassis, integrating a tweeter directly into the woofer membrane to ensure wideband and sonically homogeneous reproduction.

Applications

The KL-200 W is designed for indoor use, particularly in rooms with ceiling heights requiring suspension up to 5 metres. The spherical design enables nearly omnidirectional sound radiation, achieving even coverage of large areas. Installation is theft-secure via a stable suspension system, which is both visually discreet and mechanically robust. The loudspeakers are available in White, Black, Blue, and Red, allowing flexible integration into various interior concepts.

Functions and Equipment in Detail

Inside the housing, a 165 mm 2-way coaxial chassis operates with an impedance of 8 Ohm. The integration of the tweeter into the woofer membrane ensures coherent sound reproduction, offering high intelligibility especially for speech transmission. The integrated 100 V transformer enables flexible power adjustment directly at the connection cable. Available taps are 20 W, 10 W, and 5 W, allowing the loudspeaker to be adapted to different requirements within the sound system. The rated power is 20 W (program power), with a music power handling of 30 W.

Technology Explained Simply

The loudspeaker achieves a maximum sound pressure level (SPL Pmax/1 m) of 109 dB, ensuring sufficient loudness for larger rooms. The efficiency at 1 W/1 m is 96 dB, indicating efficient sound output. The frequency range is between 120 Hz and 16,000 Hz (±10 dB), covering both deep bass and clear highs. The radiation angle is 190° (-6 dB at 1/4/8 kHz), enabling very wide and even sound distribution. The housing is made of ABS and is manufactured in a shock- and scratch-resistant version. A removable perforated metal grille with fine perforation ensures high sound transparency without compromising visual design.

Compatibility and Accessories

The KL-200 W is designed for use in 100 V networks, making it compatible with other loudspeakers in the same system. Power adjustment is done via the connection cable, enabling flexible integration into existing sound systems. The cable length is up to 5 m, allowing suspension from ceilings in large rooms.

Installation and Mounting

Installation is done via a theft-secure suspension system up to 5 m in length. The installation requires secure fastening to the ceiling or a support structure, with the loudspeaker weighing approximately 1.8 kg. The suspension is designed to be both visually discreet and mechanically stable. The connection cables allow direct power adjustment at the device, eliminating the need for additional components.

Operational Advantages

The KL-200 W offers an excellent combination of aesthetic design and technical performance. The even sound radiation ensures clear speech intelligibility and musical clarity. The flexible power adjustment via the connection cable allows individual adaptation to room size and sound requirements. The robust ABS construction and theft-secure mounting make the loudspeaker a reliable solution for professional sound systems in public and commercial spaces.

Technical data
Sound pressure level (SPL) Pmax/1 m109 dB
Frequency range (±10dB)120 - 16.000 Hz
Shapesphere
Dimensions Ø210 mm
Impedance8 Ohm, 2-way coaxial chassis
Speaker diameter165 mm
Sound pressure level (SPL) 1 W/1 m96 dB
Rated load capacity (program)20 (30) W
Radiation angle (-6dB, 1/4/8 kHz)190°
Adjustments at 100 V20 - 10 - 5 W


Product data sheet
Datasheet for RCS Audio-Systems KL-200 W, EAN: 4250458266251

Questions & answers

What is the delivery time of RCS Audio-Systems KL-200 W Spherical speaker, 40/20 W, 100 V, 2-way system, white?

The article RCS Audio-Systems KL-200 W Spherical speaker, 40/20 W, 100 V, 2-way system, white is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems KL-200 W to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems KL-200 W Spherical speaker, 40/20 W, 100 V, 2-way system, white always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems KL-200 W Spherical speaker, 40/20 W, 100 V, 2-way system, white if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of RCS Audio-Systems KL-200 W Spherical speaker, 40/20 W, 100 V, 2-way system, white we can offer you a price of 131,11 EUR per piece. The more you buy, the cheaper the article will be.
