RCS Audio-Systems KL-200 S Spherical speaker, 40/20 W, 100 V, 2-way system, black

Your rating:
Average rating
product review for RCS Audio-Systems KL-200 S Spherical speaker, 40/20 W, 100 V, 2-way system, black
( 4.5 / 5 ) 167 ratings

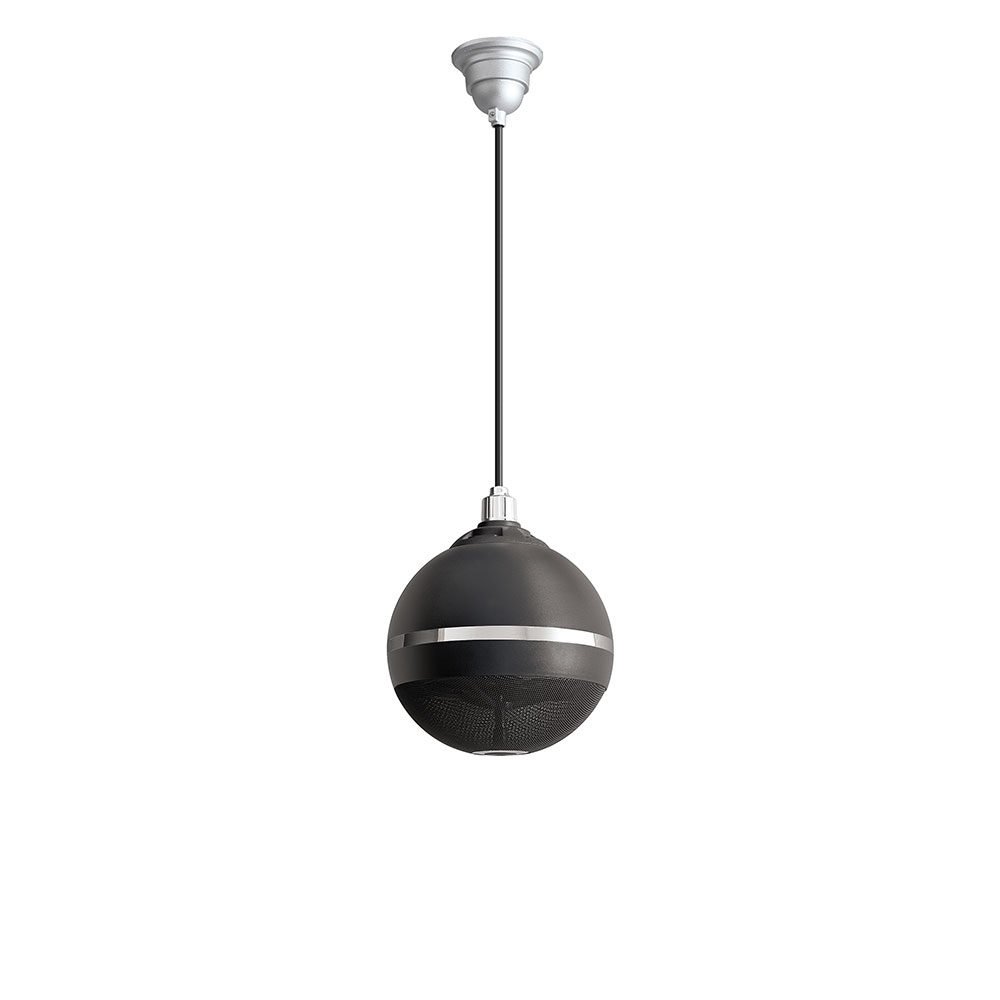

RCS Audio-Systems KL-200 S
This image may differ from the desired article.
140,60 EUR
( 167,31 EUR incl. VAT )
≈ £117.54  |  ≈ $155.36
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems KL-200 S Spherical speaker, 40/20 W, 100 V, 2-way system, black
Datasheet:file_download Download
Lieske Part No.:704825
Mfg Part No: KL-200 S
UPC/EAN: 4250458266091
Weight:1.8 kg
Type:KL-200S
Graduated prices net
From piecesPrice per pieces
5131,11 EUR
10121,62 EUR
15112,13 EUR
20102,64 EUR

Product information for RCS Audio-Systems KL-200 S:

The KL-200S from RCS Audio-Systems is a passive spherical loudspeaker with a 2-way design, specifically designed for in-ceiling and suspended mounting in buildings with high ceilings. The device features a robust, easy-to-install ABS housing in black, which is impact- and scratch-resistant. It is suitable for acoustic coverage of rooms where uniform, rumble- and vibration-free reproduction of speech and music is required, for example in offices, schools, administrative buildings, or waiting areas.

Applications

The KL-200S is intended for use in indoor environments, particularly in buildings with ceiling heights requiring suspension up to 5 meters. The spherical shape ensures wide, uniform sound radiation, achieving optimal room coverage. The moisture-resistant version (FI-100) is available as an option, enabling use in rooms with increased humidity. The loudspeakers are available in white (W) and black (S), with black specified for the KL-200S.

Functions and Equipment in Detail

The device is equipped with a powerful 2-way coaxial chassis combining a 6.5-inch bass driver and an integrated tweeter in a single unit. This design ensures undistorted reproduction of speech and music, as sound waves are radiated from a common point. The high-sound-transmissive, removable perforated metal grille with fine perforation protects the chassis without impairing sound quality. Mounting is theft-secure, with suspension up to 5 meters possible.

Technology Explained Simply

The KL-200S operates in a 100-V system, used for central sound distribution in large rooms or multiple rooms via a unified network. The built-in, high-quality 100-V transformer allows power adjustment to 20, 10, or 5 watts, enabling volume to be adapted to room size and requirements. The impedance is 8 ohms, allowing standard matching to amplifiers and wiring. The sound pressure level is 96 dB at 1 watt/1 meter and 109 dB at maximum program level (Pmax), ensuring sufficient loudness for typical indoor applications. The frequency range is between 120 Hz and 16,000 Hz (±10 dB), enabling clear reproduction of speech and music across a broad tonal range. The radiation angle is 190° (-6 dB at 1/4/8 kHz), ensuring very wide and uniform sound distribution.

Compatibility and Accessories

The KL-200S is designed for use in 100-V networks and can be combined with other devices in the same system. Power adjustment is achieved via available taps (20/10/5 W) on the built-in transformer. Cable length is up to 5 meters, with the cable featuring an integrated steel cable and canopy for secure suspension. The loudspeakers can be painted after delivery in any RAL color, allowing individual adaptation to room design.

Mounting and Installation

Mounting is done using the included suspension, up to 5 meters long and equipped with an integrated steel cable and canopy. Installation is theft-secure and requires no additional fastening elements. The suspension can be attached to suitable ceiling fixings or mounting points. Wiring is done via the integrated cable, connected to the 100-V network.

Advantages in Operation

The KL-200S provides reliable, uniform sound coverage over a wide room angle. The combination of robust housing, high-quality coaxial chassis, and flexible power adjustment ensures clear, distortion-free reproduction. Mounting is simple and requires no special tools. The loudspeakers are designed for continuous operation and are suitable for applications requiring uninterrupted, high-quality sound distribution. The option to paint them after delivery in RAL colors allows optical integration into various architectural styles.

Technical data
Sound pressure level (SPL) Pmax/1 m109 dB
Frequency range (±10dB)120 - 16.000 Hz
Shapesphere
Dimensions Ø210 mm
Impedance8 Ohm, 2-way coaxial chassis
Speaker diameter165 mm
Sound pressure level (SPL) 1 W/1 m96 dB
Rated load capacity (program)20 (30) W
Radiation angle (-6dB, 1/4/8 kHz)190°
Adjustments at 100 V20 - 10 - 5 W


Product data sheet
Datasheet for RCS Audio-Systems KL-200 S, EAN: 4250458266091

Questions & answers

What is the delivery time of RCS Audio-Systems KL-200 S Spherical speaker, 40/20 W, 100 V, 2-way system, black?

The article RCS Audio-Systems KL-200 S Spherical speaker, 40/20 W, 100 V, 2-way system, black is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems KL-200 S to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems KL-200 S Spherical speaker, 40/20 W, 100 V, 2-way system, black always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems KL-200 S Spherical speaker, 40/20 W, 100 V, 2-way system, black if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of RCS Audio-Systems KL-200 S Spherical speaker, 40/20 W, 100 V, 2-way system, black we can offer you a price of 131,11 EUR per piece. The more you buy, the cheaper the article will be.
