RCS Audio-Systems HP-101 R 100 V toroidal transformer (100 W)

Your rating:
Average rating
product review for RCS Audio-Systems HP-101 R 100 V toroidal transformer (100 W)
( 4.6 / 5 ) 25 ratings

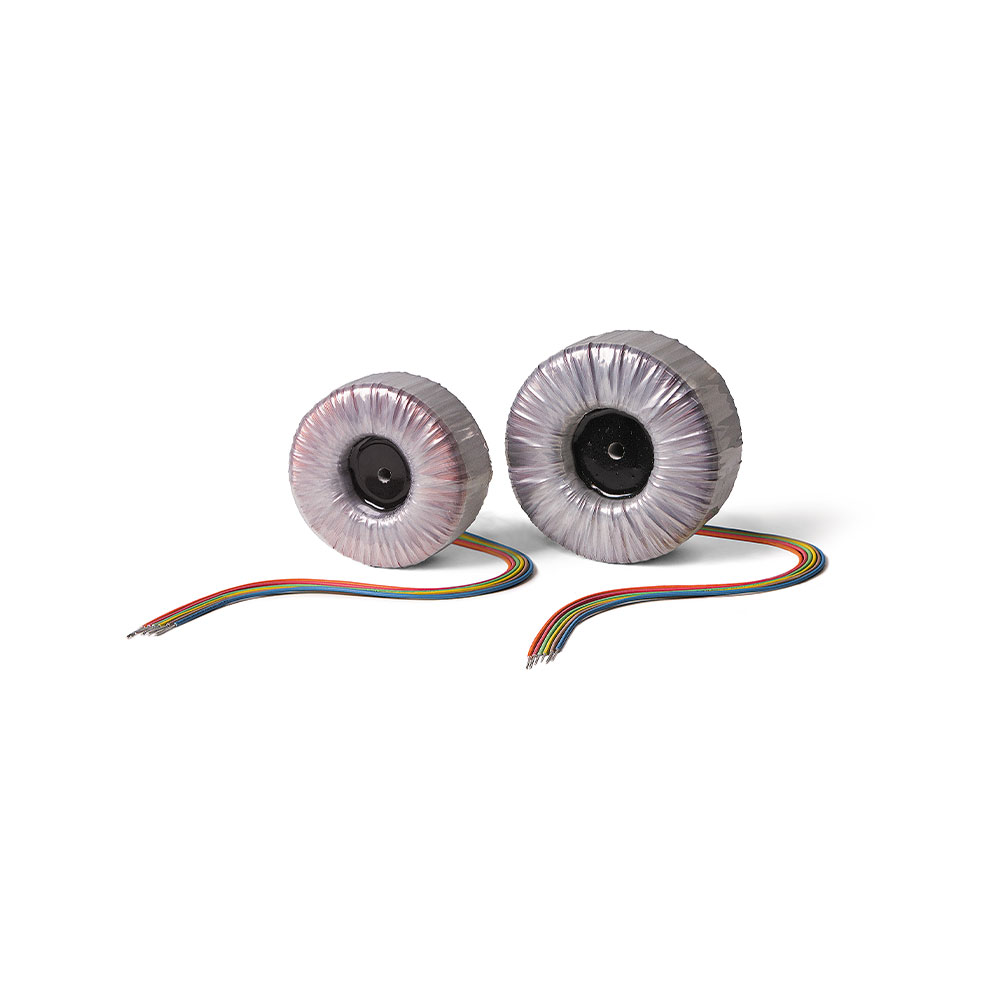

RCS Audio-Systems HP-101 R
This image may differ from the desired article.
115,90 EUR
( 137,92 EUR incl. VAT )
≈ £96.89  |  ≈ $128.07
plus delivery charges: 55,00 €
Made to order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems HP-101 R 100 V toroidal transformer (100 W)
Lieske Part No.:101653
Mfg Part No: HP-101 R
UPC/EAN: 4250458234601
Weight:1.3 kg
Type:HP-101R
Graduated prices net
From piecesPrice per pieces
5108,08 EUR
10100,25 EUR
1592,43 EUR
2084,61 EUR

Product information for RCS Audio-Systems HP-101 R:

The ring-core audio transformer HP-101 R from RCS Audio-Systems is an impedance matching transformer designed for use in professional sound reinforcement systems. It enables the integration of loudspeaker enclosures into 100 V sound systems by matching the speaker impedance to the standard 100 V network. With a rated power of 100 W on the primary side, it is designed for medium to high loads in ProSound applications. The ring-core construction ensures high magnetic efficiency and minimizes mechanical vibrations, resulting in low hum susceptibility and low no-load losses.

Applications
This transformer is primarily intended for installation in loudspeaker enclosures to qualify them for operation in 100 V networks. It is particularly suitable for applications in event technology, public spaces, schools, offices, or facilities requiring central, high-performance sound distribution. Its compact design, with a diameter of 96 mm and a height of 42 mm, allows flexible installation even in tight mounting conditions. In addition to its standard use in loudspeaker enclosures, it can also be used for other impedance matching tasks within the 100 V range.

Functions and Features in Detail
The HP-101 R features a secondary winding with three impedance taps: 8, 12, and 16 ohms, making it compatible with various loudspeaker impedances. The primary side is rated for 100 V and 100 W, enabling direct connection to standard 100 V networks. The frequency response ranges from 34 Hz to 27,000 Hz (–3 dB), covering a very wide audio bandwidth and ensuring clear, detailed sound reproduction. The efficiency is 90%, indicating efficient energy conversion and minimized power losses.

Technical Explanation
A ring-core transformer uses a toroidal core that optimally guides magnetic field lines, thereby reducing losses. The central mounting with pre-installed foam rubber pad ensures secure installation and dampens mechanical vibrations that could otherwise cause hum or rattling in the loudspeaker. The 300 mm long wire terminals provide sufficient length for wiring, even in tight installation spaces within the enclosure. Materials and manufacturing comply with standards EN 61558, VDE 0570, and IEC 085, ensuring safety, insulation values, and electrical stability.

Compatibility and Accessories
The transformer is designed for use with loudspeakers having an impedance of 8, 12, or 16 ohms. It is not intended for other voltage levels or power ratings. Use in 100 V systems requires a network architecture compatible with the technical specifications of the transformer.

Mounting and Installation
Mounting is done via the central fixing point, which is pre-equipped with a foam rubber pad. This serves to dampen vibrations and prevent the transfer of mechanical vibrations to the enclosure. The wire terminals are pre-installed, allowing direct connection to loudspeaker cables and the 100 V network. Installation requires no additional tools or components, provided the mounting holes in the loudspeaker enclosure are appropriately positioned.

Operational Advantages
The HP-101 R is characterized by high efficiency, low losses, and broad frequency response. Its compact design and flexible mounting allow easy integration into existing systems. Compliance with the specified standards ensures safe and reliable operation in continuous use. The pre-installed foam rubber pad reduces mechanical noise, improving sound quality during operation. The 300 mm long wire terminals offer flexibility in wiring, even in space-constrained installations.

Technical data
Frequency range (-3dB)34 - 27.000 Hz
Secondary8, 12, 16 Ohm
Primary (100 V)100 W
Dimensions (Ø x H)Ø 96 mm, H 42 mm
Efficiency90%


Questions & answers

What is the delivery time of RCS Audio-Systems HP-101 R 100 V toroidal transformer (100 W)?

The article RCS Audio-Systems HP-101 R 100 V toroidal transformer (100 W) is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems HP-101 R to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems HP-101 R 100 V toroidal transformer (100 W) always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems HP-101 R 100 V toroidal transformer (100 W) if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of RCS Audio-Systems HP-101 R 100 V toroidal transformer (100 W) we can offer you a price of 108,08 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
