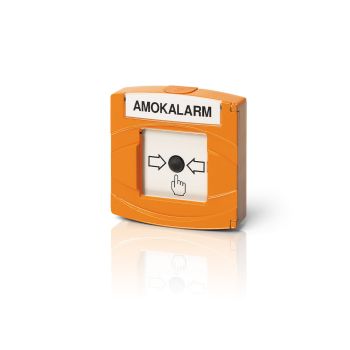

RCS Audio-Systems HMA-001 O Hand call point Amokalarm, aluminum housing, orange

Your rating:
Average rating
product review for RCS Audio-Systems HMA-001 O Hand call point Amokalarm, aluminum housing, orange
( 4.5 / 5 ) 71 ratings
RCS Audio-Systems HMA-001 O
This image may differ from the desired article.
RCS Audio-Systems HMA-001 ORCS Audio-Systems HMA-001 ORCS Audio-Systems HMA-001 O
77,90 EUR
( 92,70 EUR incl. VAT )
≈ £64.89  |  ≈ $85.46
plus delivery charges: 55,00 €
On order · Delivery time approx. 20 workdaysinfo_outline
1x RCS Audio-Systems HMA-001 O Hand call point Amokalarm, aluminum housing, orange
Datasheet:file_download Download
Lieske Part No.:783061
Mfg Part No: HMA-001 O
UPC/EAN: 4250458207001
Weight:0.4 kg
Type:HMA-001O
Graduated prices net
From piecesPrice per pieces
672,64 EUR
1267,38 EUR
2462,13 EUR
3656,87 EUR

Product information for RCS Audio-Systems HMA-001 O:

The Hand Alarm Amokalarm type HMA-001O from RCS Audio-Systems is a surface-mounted device for manual activation of amok alarm systems. The device features a break-resistant housing made of aluminium die-casting in the colour RAL 2011 (orange) and is designed for indoor use. It serves as a manual activation mechanism to initiate an alarm in emergency situations, with activation achieved via a fault-secure microswitch configured as a push-button switch. The integrated rest current monitoring ensures the device's operational functionality during operation.

Applications

The hand alarm is specifically intended for use in amok alarm systems installed in schools, administrative buildings, hospitals, or other public facilities. It enables quick and reliable alarm activation by affected individuals in case of a hazardous situation. The orange colouring ensures high visibility and recognisability of the device on the wall. The configuration as a changeover switch allows flexible integration into existing security and alarm networks.

Functions and Equipment in Detail

The device features an integrated changeover switch with a rated voltage of 48 VAC/DC and a rated current of 1 A. The contacts are designed for direct connection to amok alarm systems. Activation is achieved by operating the fault-secure microswitch, configured as a push-button switch. The side reset opening allows for easy resetting of the switch after activation. The replaceable glass panel protects the switch from damage and ensures clear visibility of the labelling. The labelling Amokalarm is replaceable, allowing the device to be adapted for other applications.

Technology Explained Simply

The hand alarm operates with integrated rest current monitoring, ensuring that the contact is correctly closed in the resting state. When the push-button switch is activated, the contact opens, triggering the alarm. The protection class IP43 (according to DIN EN 60 529) protects the device against ingress of solid foreign objects with a diameter of at least 1 mm and against splashing water from any direction. The aluminium die-cast housing provides high mechanical stability and heat dissipation. The operating temperature ranges from -20 °C to +60 °C, enabling use in a wide range of indoor environments.

Compatibility and Accessories

The hand alarm is designed for direct connection to amok alarm systems. The rear terminal connection fields allow for simple and secure wiring. The device is equipped with all necessary hardware and software components for operation. No additional accessories are required to put the device into operation. The configuration as a changeover switch enables flexible integration into existing systems.

Mounting and Installation

The hand alarm is a surface-mounted device and is mounted on the wall. Installation is carried out via the rear terminal connection fields, which enable a secure connection to the supply cable. The side reset opening facilitates resetting after activation. The dimensions are 125 mm (width) × 125 mm (height) × 34 mm (depth), allowing for compact wall mounting. Installation can be performed without additional tools, provided the required mounting elements are available.

Advantages in Operation

The hand alarm offers high reliability through the fault-secure microswitch and integrated rest current monitoring. The replaceable labelling and glass panel allow adaptation to various application scenarios. The IP43 protection class protects the device against mechanical damage and splashing water, ensuring a long service life. The operating temperature range of -20 to +60 °C enables use in a wide variety of indoor spaces. The aluminium die-cast housing provides high mechanical stability and heat dissipation, ensuring the device's functionality over time.

Technical data
Dimensions (W x H x D)125 x 125 x 34 mm
Operation temperature-20 to +60 °C
Contacts1 x changeover contact 48 VAC/DC 1 A
Degree of protectionIP43 (according to DIN EN 60 529)
HousingAluminium die-cast


Product data sheet
Datasheet for RCS Audio-Systems HMA-001 O, EAN: 4250458207001

Questions & answers

What is the delivery time of RCS Audio-Systems HMA-001 O Hand call point Amokalarm, aluminum housing, orange?

The article RCS Audio-Systems HMA-001 O Hand call point Amokalarm, aluminum housing, orange is currently not in stock but has been backordered.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RCS Audio-Systems HMA-001 O to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RCS Audio-Systems HMA-001 O Hand call point Amokalarm, aluminum housing, orange always at the best possible price. We can give you a discount of 2% on RCS Audio-Systems HMA-001 O Hand call point Amokalarm, aluminum housing, orange if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of RCS Audio-Systems HMA-001 O Hand call point Amokalarm, aluminum housing, orange we can offer you a price of 72,64 EUR per piece. The more you buy, the cheaper the article will be.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
